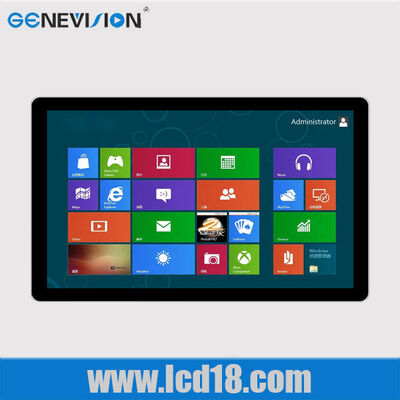

43 Inch High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage

43 Inch High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage

    • 43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage
    • 43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage
    • 43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage
    • 43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage
    • 43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage
    • 43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage
  • 43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage

    Product Details:

    Place of Origin: CHINA
    Brand Name: Genevision
    Certification: CE/ROHS/FCC/SGS
    Model Number: MG-430AT

    Payment & Shipping Terms:

    Minimum Order Quantity: 50PCS
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 10 working days after received your payment
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description

    43 Inch High definition Wall Mount LCD Display Touch Screen Digital Signage



    1.Audio output: stereo L/R, 5W*2, 8Ω

    2.Power supply: AC 110V - 240V, 50/60HZ

    3,Advanced IR touch technology , support single-touch technology

    4,interactive touch for widely using

    5,Adopt memory card to update ad files

    6.playing rolling caption in the advertisement program

    7.Support 5 groups of auto power-on/off timer,



    Description:



    1,Outer shell is made by extra quality metal material, Color for Outer Shell: Shinning Black.

    2, With 3mm thickness tempered glass as protection layer against the sureface of LCD screen.

    3,Full New LG or Samsung ( Made in Korea) A Grade Stardard LCD Panel.

    4,Support SD card or USB port at one player; it is optional for VGA Port, S-video port and HDMI port.

    5,Safely locking system function to avoid flash memory card and advertising playing contents being taken away, also can be protected by password.

    6, With USB update feature; support functions between the card and card copying files (such as CF card to SD card,or SD to CF card etc.); support U-copy, conveniently and quickly updating target content, more details please visit user manual.

    7,Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).

    8,Playlists support functions, can set different folders, copy all target files to those different folders, system would default to play your target file one by one.

    9,Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.

    10,Build-in clock and calendar function in the system of player.

    11,Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.

    12,Support shockproof and dustproof function.





    Specifications:



    Technical Parameter for LCD Panel

    Panel Size

    43inch real color LCD screen

    Aspect Ratio

    16:9

    Active Area

    941mm(H) x 529mm(V)

    Max. Resolution

    1920x 1080

    Dot Pitch

    0.54mm(H) x 0.54mm(W)

    Number of Color

    16.7M

    Brightness

    600cd/m2

    Contrast Ratio

    4000:1

    Responsive Time

    8ms

    Panel Life

    above 50000 hours





    Support Ad files

    Video formats

    MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)

    Audio formats

    MP3

    Photo formats

    JPG

    OSD Language

    English, Chinese, French, German, Italian, Spanish,Arabic

    Audio output

    stereo L/R, 5W*2, 8Ω

    Power supply

    AC 110V - 240V, 50/60HZ

    Storage Temperature

     -7 to 65 Celsius degree

    Normal Working Temperature

     -5 to 65 Celsius degree





    Applications:



    Business Organizations

    supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

    Financial Organizations

    Banks, negotiable securities, funds, insurance companies, pawnshops;

    Non-profit Organizations: Telecommunications, post offices, hospital, schools;

    Public Places

    subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

    Entertainments

    Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course





    The Technical Parameter for infrared touchscreen Panel



    Touch Max Resolution

    4096×4096

    Transparency

    > 90%, Up to 100%

    Scanning Speed

    >50Scans/S

    Response Speed

    <12ms

    Touch Type

    Horizontal Multi Dot Touch Screen (Vertical way is optional)

    Touch precision

    0.625mm

    Minimum Touch object

    ≥5mm

    Touch Intensity

    Over 60,000,000 Single Point Touch

    Operation System

    DOS, WINDOWS9X/ME/2000/XP/2003/VISTA, LINUX

    perating Voltage

    DC 5V ±5%

    Power Supply

    Keyboard Serial Interface

    Power

    <1W (Current<200mA)

    Communication

    RS-232 Interface Port, USB Port

    Vandal-Proof

    Steel Ball (Diameter 63.5mm 1040g Weight) drop from 1040mm, No break

    Temperature Operating

     -41°C ~70°C   Temperature Storage: -50°C ~85°C

    Altitude

    3000m

    Noise

    None

    Life Time

    >10 Year





    Competitive Advantage:



    Interactive experience for the machine,which attracts the attention from people.





    43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage43 Inch  High definition multi-function Wall Mount LCD Display Touch Screen Digital Signage
