Advertising Wifi Digital Signage , Custom Panel Size Outdoor LCD Displays
Product Details:
Place of Origin: | China |
Brand Name: | Genevision |
Certification: | CE, ROHS, FCC |
Model Number: | MAD-420 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | 1500usd/pcs |
Packaging Details: | Packed in carton firstly,then reinforced with wooden case for outer packing. |
Delivery Time: | 10-15 working days |
Payment Terms: | L/C, , T/T, Western Union, MoneyGram |
Supply Ability: | 2000pcs per month |
Detail Information |
|||
Type: | TFT | Panel Size: | 42inch/ Customized |
---|---|---|---|
Max Resolution: | 1920*1080 | Viewing Angle: | 178*178 |
Brightness: | 2000cd/m2 | Response Time: | 8ms |
Input Voltage: | AC100~240V 50 /60 HZ | Optional Function: | Android Or PC System |
High Light: | wifi lcd monitor display,wifi lcd display |
Product Description

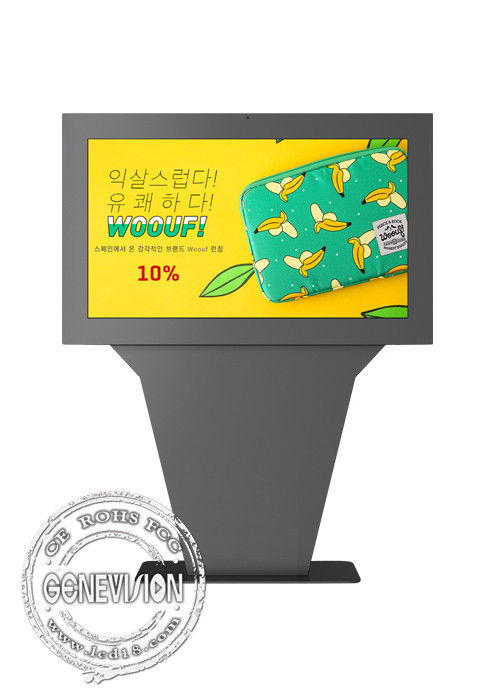

Outdoor lcd display screen supplier 42inch outdoor advertising machine custom size big screen outdoor lcd display
Panel Specification |
Panel type | 42”LCD display screen |
Active Display Area | 930 *523mm | |
Aspect Ratio | 16:9 | |
Backlight | LED | |
Resolution | 1920*1080 | |
Brightness | 2000cd/m2 | |
Contrast ratio | 3000:1 | |
Visible angel | 178°(H) / 178°(V) | |
Lifetime | 60000 hours | |
Others Specification |
6mm AR toughened glass
|
99.99% anti-ultraviolet |
Constant flow fan |
>50% of solar radiation | |
>93% transmittance rate | ||
>3% Reflectance | ||
>50% solar heat insulation rate | ||
Voltage 24V | ||
Temperature control board |
Working voltage 20.4-27.6V | |
Starting voltage 12V | ||
Average speed 2400rpm Minimum speed 2160 rpm | ||
Average current 0.26A Maximum current 0.312 | ||
Average power Accessed 3.12 Maximum 3.74 | ||
Average airflow 74 Minimum airflow 66.6 | ||
Average static pressure 2.0 Minimum static pressure 1.8 | ||
noise 33db | ||
The fan speed can be automatically adjusted according to the operating temperature | ||
shell | 1.5mm galvanized steel+Zinc base powder+outdoor powder | |
Photosensitive probe | Automatic Photosensitive Probe - Automatically recognizes the brightness of the surroundings by automatically adjusting the screen | |
Logic Camera | Network HD Camera | |
Lightning protection device | Prevent lightning strikes | |
Time switch | Separable time setting timer switch | |
Power |
Power input | AC 108-115V AC 208-240V |
Fan power supply | 24V 480W or 600W | |
Screen display and backlight power supply | 24V+12V Hybrid power supply 200-400W | |
Work condition | Work temperature | -20°C to +50°C |
Storage temperature | -20°C to 60°C | |
Work humidity | 5% to 100% | |
Storage humidity | 5% to 100% | |
All-in-one unit | Installation | Wall mount |
Dimension | 2100×860×220(mm) | |
Color | Black,white,grey, golden | |
Material | SPCC | |
Gross weight | 80KG | |
Maximum power | 260w |
