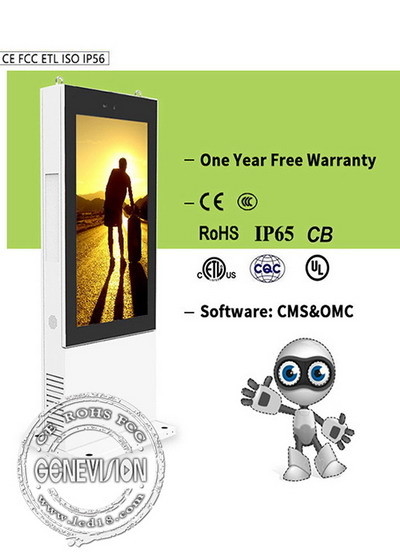

Modular IP65 Outdoor Smart WiFi Digital Signage
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MOAD-490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD1315/PC |
| Packaging Details: | Carton and wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union, paypal |
| Supply Ability: | 3000 set /month |
|
Detail Information |
|||
| CPU: | All Winner A40 Or RK3288, RK3399, J1900, I3, I5, I7 | Camera: | Optional |
|---|---|---|---|
| Software: | Free Ad Software Included Or Buyer's Own Software | Screen Size: | 49inch |
| Playing Ways: | Remote Management In Use Of Clound Serve | Cool Option: | Cooled Fan Or Air Conditioner |
| Brightness: | 2000nits,with Brightness Automatic Sensor | Screen: | Without Touch |
| Installation: | Outdoor FLOOR Standing | Material: | Water Proof/dust Proof Case+AR Minus Reflection Glass |
| High Light: | Smart WiFi Digital Signage,IP65 WiFi Digital Signage,Modular IP65 Outdoor Digital Signage |
||
Product Description
Large Outdoor Advertising Lcd Display Screen Tv Floor Stand HD commercial kiosk Smart Wifi digital signage
Specification:
| composition | parameter | |
|
Display
|
size | 49 inches |
| Display area | 1209*680mm | |
| Zoom | 16 : 9 | |
| Resolution | 1920*1080 | |
| brightness | 20 00cd/m2 | |
| Contrast | 4 000 : 1 | |
| Viewing angle | 178° horizontal / 178 ° vertical | |
|
Android motherboard
|
processor | Rockchip RK 3188 quad core |
| RAM | 1GB | |
| storage | Standard 8G can be expanded to 32G | |
| interface | USB*4 RJ45*1 | |
|
shell
|
Protection level | IP 6 5 |
| weight | 200 KG | |
| Installation method | Landing | |
| Protective glass | 6 mmAR glass | |
|
Working parameters
|
Video interface | VGA , HD CABLE |
| audio port | I/O input and output | |
| Brightness control | Automatic photosensitive system | |
| temperature control | Intelligent air conditioner | |
| Operating temperature | - 40 °C to + 5 5°C | |
| Working humidity | 5% to 100% | |
| power supply | 220V | |
| power | 900 W | |
- Product Structure
♦ The shell is made of 1.5mm SGCC galvanized steel plate, sprayed with Akzo outdoor special plastic powder, and the protection period is more than 10 years.
♦ The housing structure is designed with waterproof grooves and air inlets and outlets to meet the IP65 protection level.
♦ The protective glass in front of the screen of the whole machine adopts 6mm toughened glass, with light transmittance ≥97%, high light transmittance and anti-reflection.
♦ The whole machine adopts the front and rear door opening method, which can facilitate the maintenance of the internal display screen, heat dissipation components and electronic parts.
♦ The whole machine adopts modular design, which is convenient for installation and maintenance.
♦ The bottom plate of the whole machine is designed with mounting holes, which can be fixed by tension bolts or pre-embedded threaded rods. - Product Display
♦ Adopt high-brightness LCD display, the brightness can reach 1500-2000cd/m2.
♦ High resolution, high contrast, high brightness, greatly improve the sense of layering of the picture, and can better express the details.
♦ It has the function of automatically eliminating residual image, anti-ultraviolet, heat insulation to sunlight, automatic light perception and green energy saving to protect the long-term use of LCD screen.
♦ It has the function of black level extension and self-adaptation, which enhances the sense of depth of the image.
♦ The outdoor professional high-brightness LCD screen is used to make the video image more beautiful and the 3D feeling is stronger.
♦ 16.7M colors, the picture is more natural, and the delicate picture is truly without tailing.
♦ Ultra-long life, 7*24 hours of uninterrupted work, up to 50,000 hours.
Quick details:
1. Camera is a optional.
2. leakage protection, lightening protection, three level lighting protection device, automatic switch.
3. Support 1 screen , 2 split screen, 3 split screen
4. It is with industrial grade air conditioner.
5. IP65 water proof, dust proof, anti-glare glass, anti theft, explosion proof, anti-corrosion, highly protection from direct sunlight, is applicable for temperature from-40 Celsius degree to +55 Celsius degree.
6. High brightness LCD screen, LED backlight, automatic light for energy saving and environmental friendly.
7. Camera is a optional
8. Various size from 27inch to 86inch
Description details
you can put it in the park, central park, zoo, nearby bus station, nearby crossing road, to spread the commercial ads you want to spread. It definitely has the function of waterproof, it means under bad raining and snow environments, the ad players can work normally. The most vital one is it has a high brightness, when people walk through it, people can be left deep impression by ads. Camera, cooled fan and air conditioner is optional to built in.
The lcd advertising player 32-98inch outdoor advertising wall screen or floor standing kiosk- it is with the function of Water&Dust proof, SPCC shell, IPS screen, single or double screen optional brightness control system, lightness automatically control sensor as well as camera.
It can be put in the place like plaze, outdoor of shopping malls, bank, hotel, restaurant, retail market, exhibition hall, concert hall, library , cinema, arts, etc to remark important issue, post notification, play ads, show guidline, brochure, map and instruction.
More pictures
