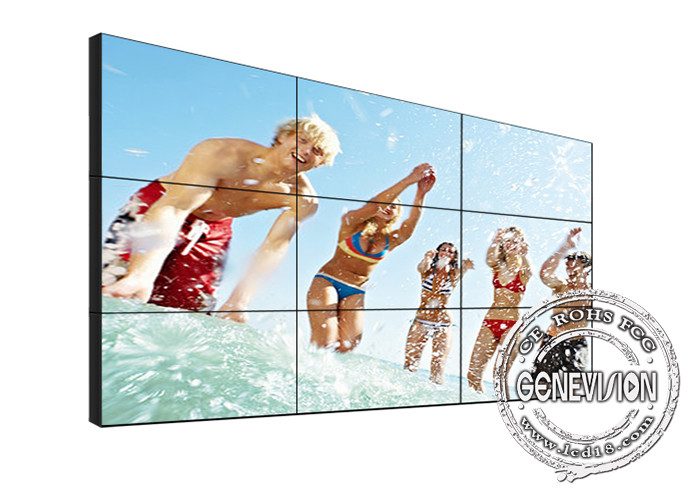

46 Inch Video Wall Player High Definition Advertising Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | GENEVISION |
| Certification: | CE,RoHS,FCC |
| Model Number: | MAD-460 ( Lcd Video Wall ) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 250USD per piece |
| Packaging Details: | Carton Packages+Wood Packages |
| Delivery Time: | 5-7 Working Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 30000 Units |
|
Detail Information |
|||
| Keyword: | Splicing Screen Advertising Players Video Wall | Panel Brand: | Original Samsung/LG/BOE A Level |
|---|---|---|---|
| Aspect Ratio: | 16:9 | Visual Angle: | Horizontal 178/Vertical178 |
| Item: | LCD Video Wall With Narrow Bezel 10 Mm | Resolution Ratio: | 1920*1080,3840*2160 |
| Response Time: | 8ms | Pixel Pitch: | 0.4845(H)*0.4845 (V) |
| Available Size:: | 22" To 84" | Aspect Ratio:: | 16:9 |
| High Light: | 46 inch video wall player,high definition advertising video wall player,46 inch video wall signage |
||
Product Description
46inch Digital Signage Video Wall Advertising Display Screen High Definition Midea Video Player Advertising Machine
Features for Multi Screen Advertising Video Wall Player
1. Supporting 4K HD Play
2. Mobile/computer control is available
3. Available Screen Size: 43/46/49/55/65 inch (Option)
4. With Ultra-narrow border: 0.88/1.8/3.5/5.5mm (Option)
5. Four installation methods : Cabinet / Floor standing / Front maintenance / Wall mount
6. Three external connections: splitter/matrix/processor
Specifications for Advertisement Display Splicing Screen Advertising Players Video Wall
| Specification | MG-550 | Panel Size | 55"LED | ||
| Panel brand | Original Samsung/LG/BOE A level | ||||
| Aspect Ratio | 16:9 | ||||
| Visual Angle | Horizontal 178/Vertical178 | ||||
| Brightness | 500cd/sqm | ||||
| Bezel | 3.5 mm | ||||
| Back light | LED backlight | ||||
| Contract Ratio | 5000:1 | ||||
| Resolution Ratio | 1920*1080 | ||||
| Color Components | 10 Bits | ||||
| Response Time | 8ms | ||||
| Power Consumption | 120W/150W | ||||
| Standby power consumption | 10W | ||||
| Power Supply | Input:AC110-220V-50/60Hz | ||||
| Life of Panel | 60000Hours | ||||
| Panel Display Area | 1209.6*680.4mm | ||||
| Outline Dimension | 1213.4*684.2*50.3mm | ||||
| Pixel Pitch | 0.630*0.630 | ||||
| Port | Input:HD.MI*1,VGA*1,DVI*1,AV*2,RS-232*1,Output:AV*1,RS-232*2 | ||||
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 | ||||
| Resolution Ratio | 480I,480P,576I,720P,1080I,1080P | ||||
| Split Screen/PIP Mode | Two signals image or PIP | ||||
| Splice Function | Multiscreen Splice Function(image processing Function) | ||||
| Carton Packing | 2pc/carton, carton size: 135*34*81cm, G.W.:58kg | ||||
| Wooden box packing | 7pc/wooden box, wooden box size:140*128*98cm, G.W.:281kg | ||||
| Bracket carton packing(for 7pc system) | 146*34*25cm, G.W.:33kg | ||||
Features of LCD splicing screen video wall display
1. Industrial LCD
Adopting Samsung and LG industrial IPS LCD screens, with stable and reliable performance.
2. Multi-screen splicing combination
The screen can be spliced into a full screen, and the LCD splicing screen can also choose functions such as single-screen display, full-screen display, arbitrary combination display, image roaming, and image overlay, which can be flexible and can meet different needs.
3. High resolution
1920x1080p high definition, fine picture, color saturation, high brightness, perfect visual presentation.
4. Ultra-low energy consumption
Energy saving, environmental protection, ultra-low energy consumption, low calorific value, suitable for 7x24 hours, long time, all day continuous work.
5. Narrow frame design
Ultra-narrow edge seamless splicing The thin and narrow edges of the mesh are seamlessly realized on both sides, which truly realizes the integration of the screen and the frame, breaking your imagination of LCD splicing screens.
6. Look at the world
178° new wide-angle expansion technology, LED backlight will not be deformed at any angle, and the color will not be deformed.
7. Intelligent temperature control technology
The heat dissipation design improves the heat dissipation efficiency, and the service life of the whole machine exceeds 60,000 hours.
