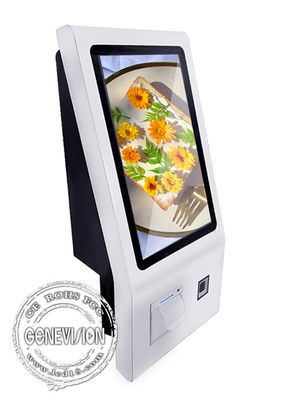

21.5" Countertop Wall Mount POS Self Service Kiosk With Receipt Printer

21.5" Countertop Wall Mount POS Self Service Kiosk With Receipt Printer

21.5" Countertop Wall Mount POS Self Service Kiosk With Receipt Printer

Product Details:

Place of Origin: China
Brand Name: Genevision
Certification: CCC,CE,ROHS,FCC
Model Number: MAD-220

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: USD 400 - USD800 / PC
Packaging Details: carton+wooden case
Delivery Time: 10 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Keyword: Countertop Self Service Kiosk POS Station Screen Size: 22"
Touch Screen: 10 Points PCAP Touch Screen Certificate: CE, FCC, ROHS, CCC, RCM
POS Holder: Yes, On The Side Of Screen QR Code Scanner: Inbuilt, Support NFC Card Reader
System: Android Or Win 10 Or Ubuntu Installation: Countertop, With Wall Mount Bracket As Well
High Light:

Wall Mount POS Self Service Kiosk

,

Countertop POS Self Service Kiosk

,

21.5" Self Service POS Kiosk

21.5" Countertop Wall Mountable POS Station Self Service Kiosk with Receipt Printer NFC Card Reader QR Code Scanner




Quick details of Countertop Self Service kiosk POS Station :


1. 21.5inch 1080P high resolution screen.

2. BOE original panel brand, A level.

3. Countertop design, can be fixed onto desk with screws.

4. Also can be hang on the wall or wall mountable bracket.

5. Android or Windows 10 pro system, can support Google play.

6. 10 fingers touch screen, capacitive touch.

7. With 80mm thermal paper thermal printer.

8. With QR code scanner.

9. With NFC card reader function.

10. With POS holder on side so customer can install their own POS locally.


Specification of LCD Payment Terminal Kiosk:



Resolution 1920*1080
Panel BOE original panel, A level
Display area 476*268 mm
Brightness 250cd/m2
Number of Color 16.7M
Response time 8 (ms) approximately
Contrast 1000:1
View angle 178°/178°(H/V)
Life Time > 50000 (hours)
Power Supply AC 110V~240V,50/60HZ
Power Consumption 40W
Photo Formats JPEG ,BMP ,GIF ,PNG
Audio Formats MP3,WAV,WMA
Video Format MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V
Shell Material Aluminum+Metal
Bare dimension TBC
Wooden box dimension TBC
Color White and black
QR code scanner Yes, also support NFC card reader
Touch Type 10 points PCAP touch screen
Printer 8cm Thermal printer inbuilt
POS holder On side
Model Try to do the same as picture, base fixed onto counter with screws, maybe front openning but not sure, need supplier's suggestion
Normal Working Temperature 0°——50°
Normal Storage Temperature -20°——60°




CPU RK3288 Quadcore Cortex-A17 1.8GHz
Network connection LAN, WIFI
RAM DDR3 2G
Memory 8G
The operating system Android 7.1, support Google play
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1



CPU i3, i5, i7
Network connection LAN, WIFI
Memory DDR3 4G or 8G
SSD 128G or 256G
The operating system Beta Win10
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1


Description of LCD Touch Screen Receipt Printer Payment Kiosk:



This self service kiosk is designed for using on countertop, with perfect screen size in 21.5inch, with 80mm thermal paper printer inbuilt, QR code scanner which also support NFC card reader



should be fixed onto counter with screws, and has front maintenance design, it looks very different from other model of self payment machine. Also with screws on the back which can be installed on the wall as well.



We also can make it as a monitor so you can use your own media player box, and will prepare power socket inside to supply power to your own equipment, besides, we will add a piece of metal cover to hide all electronic parts so it's in high quality design.


Application of Self service exhibition kiosk stand:

This bar counter self ordering machine usually be installed in hotel reception desk, bar counter, cinema cahs register etc.
