Highlight:
IP65 Outdoor Digital Signage Displays
, Outdoor Digital Signage Displays 2500cd/m2
, 65" touch screen digital signage kiosk

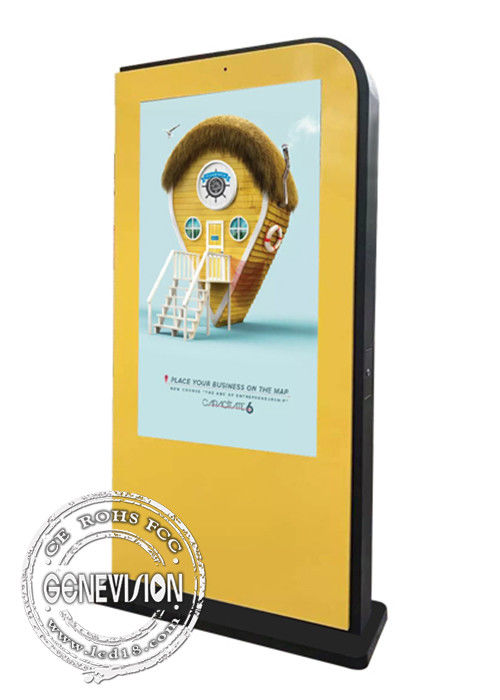

Anti Salt Seaside 65" Front Maintenance Win 10 Waterproof High Brightness LCD Outdoor Digital Signage Kiosk
Quick details of outdoor lcd advertising kiosk:
1. 65" 2K screen, 4K on option.
2. Seaside applicable, waterproof.
3. 10-point PCAP foil touch screen.
4. Windows system, Android on sale.
5. 2500nits high brightness, with brightness sensor, sunlight readable.
6. Air conditioner inbuilt, with heating function.
7. Support logo printing.
8. Front access maintenance design.
9. With 4G and wifi connect to the internet, with antenna.
Specification of outside sunlight readable digital signage kiosk:
| Resolution |
1920*1080 |
| Display area |
1649*927mm |
| Glass |
AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface |
| Brightness |
2500cd/m2, Brightness: has brightness sensor, auto-adjustment as per different daylight to lower power consumption, standard maximum 2000nits. |
| Number of Color |
16.7M |
| Response time |
8 (ms) approximately |
| Contrast |
1200:1 |
| View angle |
178°/178°(H/V) |
| Life Time |
> 50000 (hours) |
| Power Supply |
AC 110V~240V,50/60HZ, |
| Electronic part |
Electricity leaking protection, lightning protection |
| Shell Material |
Galvanized steel+outdoor power painting, anti-corrossion for more than 10years |
| Heat Dissipation |
Air-conditioner built-in, with patent fully intelligent temprature control technology including heating function |
| Speaker |
10W*2 |
| Power Consumption |
200W, Industrial-grade power board, brightness auto-adjustment to lower power consumption |
| Logo printing |
Support |
| Touch screen |
10-point PCAP foil touch screen |
| 4G |
Support, with antenna outside |
| Photo formats |
JPEG ,BMP ,GIF ,PNG |
| Audio formats |
MP3,WAV,WMA |
| Video formats |
MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, |
| Bare dimension |
TBC |
| Wooden box packing size |
TBC |
| Normal Working Temperature |
-40 to 55 Celsius degree |
| Monitor Interface |
HDMI in*1, DVI in*1, VGA in*1 |
| CPU |
i3, i5, i7 |
| Memory |
DDR3 4G or 8G |
| SSD |
128G or 256G |
| Internet connection |
Wifi, Lan |
| System |
Beta Win10 |
| Interface |
HDMI out*1,USB *4 ,LAN *1, VGA*1 |
Description of outdoor waterproof LCD advertising totem :
This project need to put the outdoor wifi digital signgage kiosk near the wall, so the standard back door openning design is not applicable, so we designed to access interior electronic parts fron the front, this solution can greatly meet customer's requirements.
With multi touch screen, which is quite common in lcd advertising display industry. Support logo printing, which can be done waterproof without clolr fading. We inbuilt an air-conditioner inside for ventilation, it also has heating function, and it will work automatically when environment degree is too low. Windows motherboard has WIFI and bluetooth as well as 4G function.
Application of outdoor lcd kiosk and outdoor advertising kiosk :
This digital signage display outdoor can be used for street, park, also airport need the LCD digital outdoor signage, outdoor floor standing digital signage kiosk also can be put in bus station, bus stop, train station, shopping mall,
