Home > Products > Outdoor Digital Signage > Electric EV Car Charging Station With 43" 55" 4K LCD Digital Advertising Kiosk

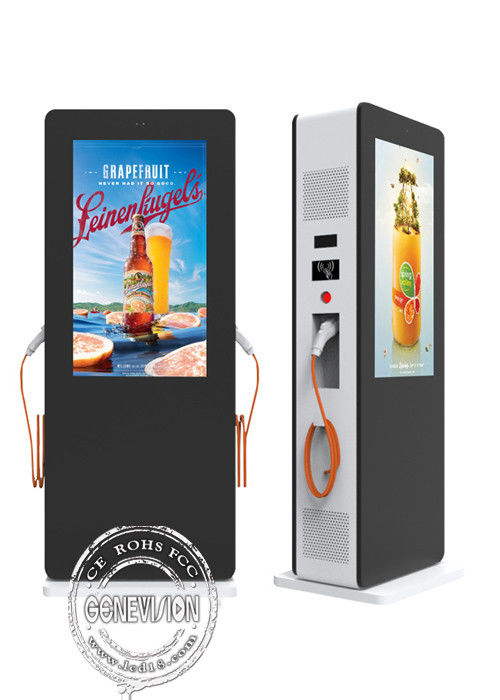

Electric EV Car Charging Station With 43" 55" 4K LCD Digital Advertising Kiosk

Product Details

Place of Origin: CHINA

Brand Name: GENEVISION

Certification: CE, FCC, CCC

Model Number: MAD-430

Payment & Shipping Terms

Minimum Order Quantity: 5PC

Price: Negotiable

Packaging Details: Standard export carton reinforced by wooden box

Delivery Time: 15 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000pc per month

Get Best Price
Product Details
Highlight:

55" Digital Advertising Kiosk

,

43" Digital Advertising Kiosk

,

4K LCD Outdoor Digital Signage

Key Word:
Car Charging Station Outdoor Kiosk
Screen Size:
43"
Car Charger Power:
7KW, 11KW, 22KW, 44KW
Waterproof:
IP65
OS:
Android Or Windows
Car Charger Protocol:
Support OCPP 1.6 Protocol
Charging Mode:
RFID Swipe Card
Charging Interface Standard:
IEC 62196-2
Power Supply:
380V Or 480V
Touch Screen:
Optional
Key Word:
Car Charging Station Outdoor Kiosk
Screen Size:
43"
Car Charger Power:
7KW, 11KW, 22KW, 44KW
Waterproof:
IP65
OS:
Android Or Windows
Car Charger Protocol:
Support OCPP 1.6 Protocol
Charging Mode:
RFID Swipe Card
Charging Interface Standard:
IEC 62196-2
Power Supply:
380V Or 480V
Touch Screen:
Optional
Product Description


Electric Car Charging Station with 43" 55" Outdoor Digital Signage LCD Advertising Screen Display


Quick details of outdoor kiosk electric cars charging station:



1. 43inch to 75inch industrial TFT outdoor lcd screen

2. 1920*1080 or 4K

3. 1500nits, 2000nits, 2500nits, with brightness sensor

4. Operation under -30℃-45℃

5. IP65 Waterproof, lightning protection

6. High brightness 2000 nits Sunlight readable

7. Galvanized steel and anti-rust outdoor powder painting

8. Ventilation system: Air-conditioner, Fan

9. Heating system optional

10. Touch screen available

11. Anti-glare and anti-reflection glass can add

12. OCPP 1.6 protocol fast charging speed EV charger inbuilt.

13. Charger cable type can be SAE J1772 or IEC62196 type 2 and other kind as per request.

14. Mobile EV charging station power can be 7KW, 11KW, 22KW, 44KW.

15. HDMI input, USB update, Android with CMS, Windows 10 OS




Specification of street electric car charger station outdoor waterproof kiosk:


Resolution 1920*1080
Display area 1209*680mm
Glass AG minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface
Brightness 2000cd/m2, Brightness: has brightness sensor, auto-adjustment as per different daylight to lower power consumption, standard maximum 2000nits.
Number of Color 16.7M
Response time 8 (ms) approximately
Contrast 5000:1
View angle 178°/178°(H/V)
Life Time > 50000 (hours)
Power Supply AC 110V~240V,50/60HZ,
Electronic part Electricity leaking protection, lightning protection
Shell Material Galvanized steel+outdoor power painting, anti-corrossion for more than 10years
Heat Dissipation Air-conditioner or Air-conditioner built-in, with patent fully intelligent temprature control technology including heating function
Heating system On option
Electric car charging station 7KW, 11KW, 22KW or 44KW available
Speaker 10W*2
Power Consumption 200W, Industrial-grade power board, brightness auto-adjustment to lower power consumption
Photo formats JPEG ,BMP ,GIF ,PNG
Audio formats MP3,WAV,WMA
Video formats MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V,
Bare dimension TBC
Wooden box packing size TBC
Touch Type 10-point capacitive touch foil optional
Normal Working Temperature -40 to 55 Celsius degree
Accessory Power Cables, English Manual
OSD Language English, Chinese, French, German, Italian, Spanish,Arabic
Internet connection WIFI, 4G, LAN
The operating system Android 7.1 or Android 10.0
CPU A40, A83T, RK3288
RAM DDR3 2G
Memory 8G
Interface USB*1,USB-OTG*1,*1,RJ45*1,SD card*1



Internet connection WIFI, 4G, LAN
The operating system Windows
CPU i3, i5, i7
Memory DDR3 4G
SSD 128G
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1


Description of Intelligent EV charging pile:



In order to save energy and protect the environment, more and more countries encourage people to use electric vehicle, so there is a large demand of EV charging station.It is a new idea to combine EV charger with outdoor station.It is new product to attract people's eyes.

When people use the charging pile will attention on the screen's adertising.



There are two different system of lcd advertising screen and EV charging station, as a factory of lcd advertising player, we just inbuilt the fast speed electric automobile car charger into our outdoor digital signage totem.



Outdoor digital advertising kiosk have two model,one screen or two screens, also we can inbuilt one or two EV chargers.


Differnt kind of shape,colour,function are welcome


Application:



This electirc EV charging poster can be put on public place,such as bus stop, street,shopping mall parking lot, restaurant parking lot etc.
