Product Details
Place of Origin: CHINA
Brand Name: Genevision
Certification: CE/ROHS/FCC/SGS
Model Number: MJHD-170
Payment & Shipping Terms
Minimum Order Quantity: 50PCS
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Dot Pitch: |
0.264(H)×0.264(V) |
Interface: |
BNC,VGA, |
Product: |
17" HD LCD Monitor |
Resolution: |
1280×1024 |
Contrast: |
1000:1 |
Brightness: |
500cd/㎡ |
Dot Pitch: |
0.264(H)×0.264(V) |
Interface: |
BNC,VGA, |
Product: |
17" HD LCD Monitor |
Resolution: |
1280×1024 |
Contrast: |
1000:1 |
Brightness: |
500cd/㎡ |

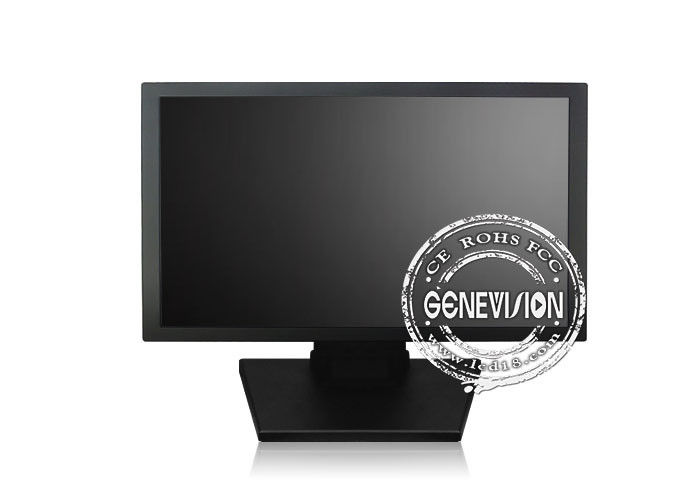

100V~240V AC Industrial LCD Displays , HD Industrial LCD Screens interface
Description:
Applications:
Stock exchanges, Traffic control centers, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.
Specifications:
Technical Parameter for LCD Panel
|
product |
17" HD LCD Monitor |
|
model |
MJHD-170 |
|
Screen type |
17" TFT LCD |
|
Display area |
340(W)×273(H) |
|
Aspect ratio |
4:3 |
|
resolution |
1280×1024 |
|
Number of colors |
16.7M |
|
Dot pitch |
0.264(H)×0.264(V) |
|
brightness |
500cd/㎡ |
|
contrast |
1000:1 |
|
Viewing angle |
178°/178° |
|
Response time |
5ms |
|
HF |
31k~60kHZ |
|
VF |
56~75HZ |
|
color system |
PAL/NTSC/SECAM |
|
Signal interface |
Input:2*BNC,1*VGA,,1*,1*AUDIO output:1*BNC |
|
voltage |
AC 100V~240V |
|
On mode |
≤35W |
|
Standby model |
≤3W |
|
Working temperature |
0°~50° |
|
humidity |
20%~80% |
|
Life |
60000H |
|
color |
Black/white/customized |
|
installment |
Desktop/wall mounted |
|
certification |
CE/3C/FCC/UL |
|
Dimension |
361×300×66 |
|
Net weight |
5.8KG |
Competitive Advantage:
Wide voltage range,AC 110V~240V,industrial grade design,can be used in harsh environment.
