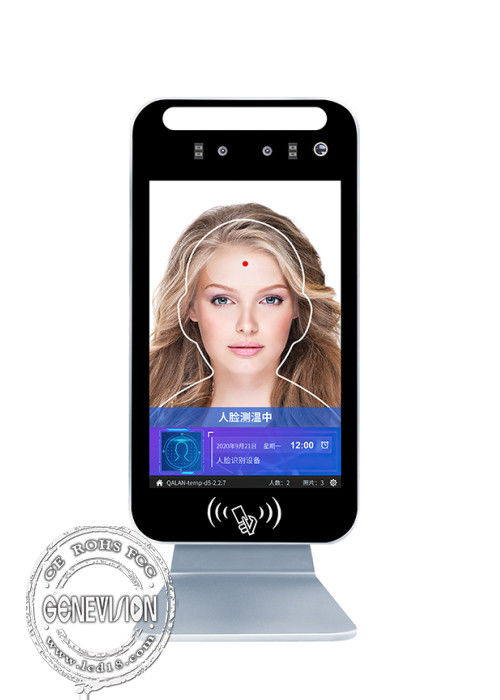

Android 7.1 Smart Pass Facial Recognition Thermometer With 8" LCD Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MG-080 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD410-USD550/PC |
| Packaging Details: | Carton |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 set /month |
|
Detail Information |
|||
| Screen Size: | 8 Inch IPS Panel | Usage: | Indoor |
|---|---|---|---|
| Body Temperature Testing: | YES, IR Technology | Binocular Camera: | 2MP |
| Resolution: | 1280*800 | Stand Height: | 60-120cm |
| Warranty: | One Year | Language: | Multi Languages |
| Optional: | IC Card/QR Scanner/Touch Screen | Installation: | Wall Mount, Floor Stand, Table Stand |
| High Light: | Android 7.1 Facial Recognition Thermometer,8" IPS Panel Facial Recognition Thermometer,Facial Scan Thermometer IP65 |
||
Product Description
Android 7.1 Smart Pass Facial Recognition Thermometer With 8" LCD Screen
Quick details of digital thermometer:
1. 8inch IPS panel,indoor use
2. Quad core RK3288 Android 7.1 system, 2G+8G memory, with wifi
3. Facial recognition camera inbuilt,support 3W faces
4. German Brand Heimann or Japan Omron temperature detector optional
5.Come with temperature detector and attandence control software.
6. Support API documents for developing your own software
7. Various kind of installation:wall mount,desktop stand,floor stand (110cm,65cm,138cm,adjustable stand from 60 to 120cm)
8. 1.1M height floor stand MZJ-080 can be with an 1200Ml auto hand sanitizer dispenser,liquiad nozzle,fixing via screw very stable.
9. Support logo customized on floor stand, support boot logo customized, support QR code display standy on screen
10.Touch screen/IC card reader/QR code reader are optional function for choose
Description of temperature detection:
Genevision's 8 inch intelligent android tablet screen with face recognition camera and temperature scanner was hotsale in 2020, it help people all over the world to fight against virus.
It come with temperature detector software,which can work with USB standalone version,also can work with internet,remote control the device or check pass record via computer.
Privacy setting include temperture display and name display,pass recored temperature preservation,pass record photo preservation.
Email Setting:You can check single or multiple devices to set the corresponding parameters and information of background automatic sending mail.When have abnormal temp record,it will automatically send notification email.
New function of Smart pass management software:After people test the temprature,they can filling in the questionnaire.it have screen questionnaire mode or scan code questionnaire mode.
In addition,the standard is non touch,something need connect mouse to do some setting,If you don't like non touch version,we also have touch screen optional,which is very convinent to do menu setting.It also have IC card/QR code scanner function option.
It also have many other function such as:device monitoring,visitor management,pass records,pass permission,blacklist monitoring,attendance records,etc
We have different kind of stand for different people,MZJ-082 65cm height for Children,MZJ-080 110cm for most of people,MZJ-083 1.38M for higher people
Specification:
| Resolution | 1280*800 IPS panel | |||||
| Display area | 107.64(W)×172.224(H) mm | |||||
| Brightness | 200cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 800:1 | |||||
| View angle | 170°/170°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | DC12V (±10%) | |||||
| Power Consumption | 14W | |||||
| Camera | 2.0Mpx, two-eye dynammic camera | |||||
| Focus distance | 50-150cm | |||||
| White balance | Automatic | |||||
| LED flash | LED and dual IR LED light compensation | |||||
| Speaker | 2.5W/4R | |||||
| Face recognition | Support several face detection together | |||||
| Face recording database | 30,000 at most | |||||
| 1:N face detection | Suport | |||||
| 1:1 face matching | Suport | |||||
| Stranger dection | Suport | |||||
| Face detection distance configuration | Support | |||||
| UI interface configuration | Support | |||||
| Remote upgrade | Support | |||||
| Display interface | Includes device management, personnel/picture management, records query | |||||
| Deployment model | Support public cloud, private, local area network, standalone | |||||
| Body temperature testing | Support | |||||
| Distance support | 1 Meter | |||||
| Testing precision | ≤ ±0.2℃ | |||||
| Testing range | 10℃~42℃ | |||||
| Thermal imaging field of view | 32 X 32℃ | |||||
| Automatic pass | Support, for normal body temperature | |||||
| Automatic alarm | Support, for abnormal body temperature, can be pre set | |||||
| Waterproof | IP65 | |||||
| Installation | Gate machine, height can be adjusted | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Aluminum+Metal | |||||
| Bare diemension | 238.24*128*25mm, N.W.: 1.45kg | |||||
| Touch Type | NO | |||||
| Normal Working Temperature | -10°——60° | |||||
| Normal Storage Temperature | -20°——60° | |||||
| Accessory | Cable, bracket | |||||
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic | |||||
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz | ||||||||
| RAM | DDR3 2G | ||||||||
| Memory | 8G | ||||||||
| Internet connetcion | Wifi, RJ45 | ||||||||
| System | Android7.1 | ||||||||
| USB port | OTG*1, USB HOST*1 | ||||||||
| RS232 | 1 | ||||||||
| Relay output | 1 signal output for door openning | ||||||||
| Wiggins interface | 26/34 output*1, 26/34 input | ||||||||
| Upgrade | Support Uboot upgrade | ||||||||
Application:
This smart 8 inch temperature scanner tablet can be widely used in bus, school, airport, subway station and train sation, can work together with passage gate entrance access controller in community, office building, hotel, scenic spot, transportation junction or other public service area
