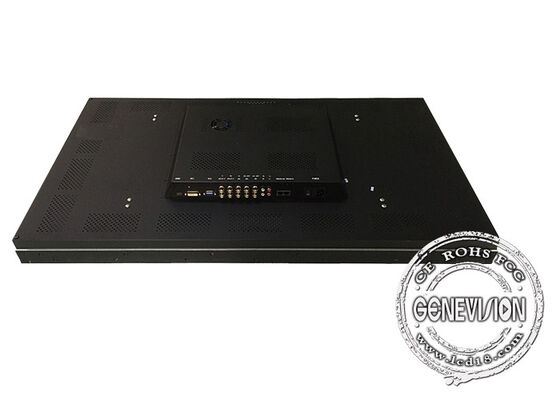

55 " LCD Digital Signage Video Wall 3.5mm Narrow Bezel 1920 * 1080 Resolution Ratio
Product Details:
| Place of Origin: | Guangdong China |
| Brand Name: | GENEVISION |
| Certification: | CE/ROHS/FCC/CCC |
| Model Number: | MD-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD535 /PC |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 7 working days after received your payment |
| Payment Terms: | L/C, T/T, Western Union/paypal |
| Supply Ability: | 5000/month |
|
Detail Information |
|||
| Keyword: | Floor Stand Video Wall | Screen Aspect Ratio: | 16:9 |
|---|---|---|---|
| Visual Angle: | Horizontal 178/Vertical178 | Brightness: | 500cd/sqm |
| Contract Ratio: | 3000:1 | Resolution Ratio: | 1920*1080 |
| Response Time: | 8ms | Service Life Of Panel: | 60000Hours |
| High Light: | touch screen kiosk monitor,touch screens monitors |
||
Product Description
55 inch LCD Digital Signage 3x3 Video Wall Display Screen 3.5mm Narrow Bezel
Video wall is a wonderful advertising solution for business, support horizontal, landscape and vertical installation, various panels can be put together, with switcher and software, full screen display, single screen display, random combination display can be accomplished. Touch screen DID video wall is also on option.
| Model | MD-550 |
| Panel brand | LG |
| Unit dimensions | 55” |
| Panel type | TFT-LCD |
| Brightness | 500cd/ m2 |
| Contrast | 1200:1 |
| Optimal resolution | 1980×1080 |
| Aspect ratio | 16:9 |
| Display color | 16.7M |
| Response time | 8ms |
| Pixel pitch | 0.53025 (H) ×0.53025mm (V) |
| Viewing Angle | 178º (H)/178º(V) |
| Lamp life | 50000 (minimum) hours |
| Operating temperature | 0~50℃ |
| Humidity | 10%~80% |
| Surface treatment | Matte (Haze 5.5%), |
| Display area | 1214×684mm (horizontal*vertical) |
| Dimensions | 1215.2× 686 mm (horizontal*vertical) |
| Dimensions | 58.53 (Max.) mm (thickness) |
| Physical seam | 5.5mm |
| Basic functions | M rows × N columns, multi-unit splicing, full-screen display, split-screen display, any combination display (multi-channel signal), PIP signal cross screen roaming, superimposing and zooming |
| Image splicing controller (optional) | 1. Multi-layer cross screen roaming and superimposing, scaling of all windows in any proportion and any size in full range; 2. Support intelligent split of single, four, six, nine and sixteen screens, built-in HD mixing matrix |
| Input and output | |
| High definition multimedia interface | 1-channel |
| Digital video interface | DVI-D 1-channel |
| D-Sub interface | VGA 1-channel |
| Composite video input | BNC 2-channel |
| Composite video output | BNC 2-channel |
| Control interface | RJ45 (RS-232 protocol) |
| Video | |
| Video format | PAL/NTSC/SECAM |
| Compatible input | 480P, 576P, 720P, 1080P |
| 3D noise reduction | Yes |
| Video noise reduction | Yes |
| Power supply | |
| Voltage input | AC100V~240V 50/60HZ |
| Power loss | ≤220W |
| Standby power | ≤3W |
| Mounting | |
| Wall-mounted, floor-standing enclosure (optional) | |
Quality assurance:
1. Self design hardware,and purchased raw material.Control quality from source.
2. IQC-QC-IPQC-QA-OQC,five QC control.
3. 1 year warrante
Why choose us:
1. 15-years professional manufacturing experience only in digital signage field.
2. LCD display projects from 8" to 108' in various brightness can be tailor-made according to your specific requirements.
3. Rich experience in OEM and ODM projects in more than 15 years.
4. Less MOQ can meet your various requirements.
5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.
6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.
7. Shipments: Internation express, airfreight, oceanfreight.
8. Warranty: 1-year warranty, lifetime maintenance.
