Home > Products > Open Frame LCD Display > AV medical grade computer monitor with 5ms Responsive Time , SMPTE295M

AV medical grade computer monitor with 5ms Responsive Time , SMPTE295M

Name: AV medical grade computer monitor with 5ms Responsive Time , SMPTE295M
Brand: Shenzhen MercedesTechnology Co., Ltd.
SKU: MAD-104A-260908
Price: 900.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: Genevision

Certification: CE/ROHS/FCC/SGS

Model Number: MAD-104A-260908

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD 300 - USD 1500 / PC

Packaging Details: Plywood box cost extra

Delivery Time: 20 working days after size drawing confirmed

Payment Terms: T/T or western Union

Supply Ability: 3,000pcs per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                medical grade lcd monitors, medical lcd displays, 5ms medical grade computer monitor

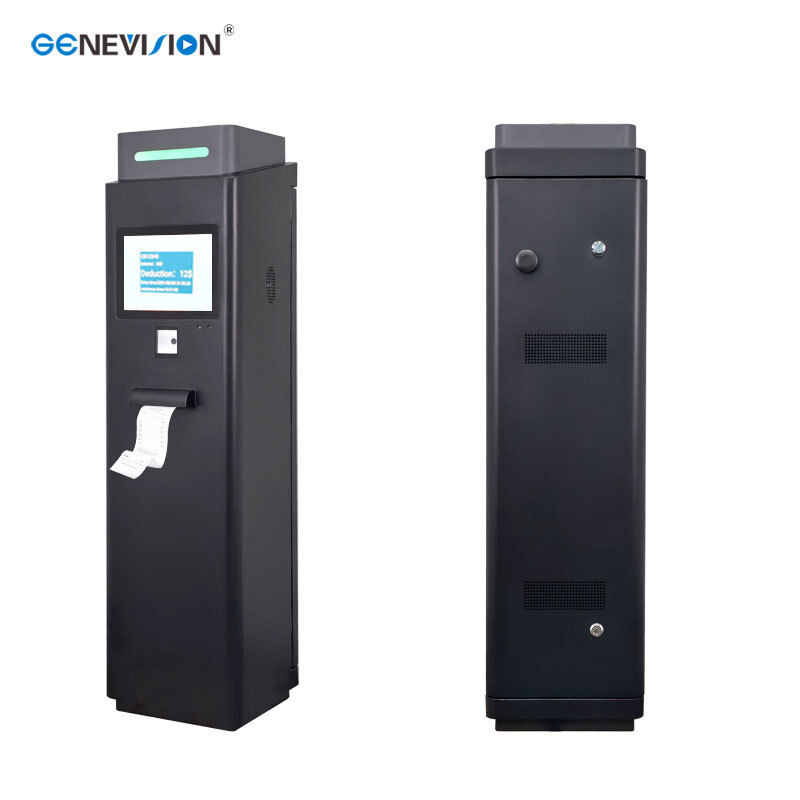

Keywords:	Parking Lot Self Service Payment Kiosk	Thermal Printer:	80mm
QR Code Scanner:	Inbuilt	Waterproof:	IP65
System:	Android Or PC	Air Cooling System:	Air Cooling Fans Inbuilt

Keywords:	Parking Lot Self Service Payment Kiosk
Thermal Printer:	80mm
QR Code Scanner:	Inbuilt
Waterproof:	IP65
System:	Android Or PC
Air Cooling System:	Air Cooling Fans Inbuilt

Product Description

AV medical grade computer monitor with 5ms Responsive Time , SMPTE295M

Description:

Genevision MSDI broadcast monitor chooses Top project., SDI technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080 p 60 hz, which should be more extensive.
Performance Features as follows:
1. Terminal interface: SDI goes into a conversion for the output signal.
2. To support HD-SDI, SD - SDI.
3.The thickness of PCB copper is 2 times of that of general interface card.
4. All capacitors are tantalum capacitors.
5. Use BNC VIDEO signal terminal, to prevent loss.
6. Support the SDI embedded audio
7,Intelligent temperature control fan,environment friendly;
8,white metal frame design,anti-electromagnetic interference;
9,Integrated multi-angle professional stand mounting.

Support mode list:

SN	Mode	SMPTE	Type
1	1080I @60HZ	SMPTE260M	HDTV
2	1080I @60HZ	SMPTE274M	HDTV
3	1080I @50HZ	SMPTE274M	HDTV
4	1080I @50HZ	SMPTE295M	HDTV
5	1080P @30HZ	SMPTE274M	HDTV
6	1080P @25HZ	SMPTE274M	HDTV
7	1080P @24HZ	SMPTE274M	HDTV
8	720P @60HZ	SMPTE296M	HDTV
9	720P @50HZ	SMPTE296M	HDTV
10	NTSC (480I@60HZ)	SMPTE267	SDTV
11	576I@50HZ	ITU-R BT601.5	SDTV
	PAL-I	ITU-R BT601.5	SDTV
12	PAL-B,G,H	ITU-R BT601.5	SDTV
13	PAL-N	ITU-R BT601.5	SDTV
14	1080P 50HZ		3G
15	1080P 60HZ		3G

Note:such mode does not support1080PSF24HZ,1080I48HZ,720P24HZ,720P25HZ,
720P30HZ.

Applications:

Hospital	Surgery, Laboratory,Testing room
Entertainment	Live studio, Film shooting

Specifications:

Technical Parameter for LCD Panel

Model No	MSDI-190
Panel Size	19inch
Aspect Ratio	4:3
Active Area	379mm(H) x 304mm(V)
Resolution	1280x 1024
Dot Pitch	0.294mm(H) x 0.294mm(W)
Number of Color	16.7M
Brightness	350cd/m2
Contrast Ratio	1000:1
Visual angle	178⁰
Responsive Time	5ms
Input	AV(BNC) X 2,S-Video X 1,VGA X 1, X1,DVI X 1(optional)
Output	AV(BNC) X 1
Power supply	100 -240V AC
Color system	PAL/NTSC/SECAM
Power consumption	45W
Panel Life	above 50000 hours
Working Temperature & Humidity	0⁰C~40⁰C/10%~90%
Certificate	3C/FCC/CE/ROHS/UL

Competitive Advantage:

Genevision endoscope & surgical Medical LCD Monitor,adopts high definition LCD panel and wide visual angle to meet the needs of today’s medical display,can observe clearly the exact surgery position and elaborate operation in minimally invasive surgery(MIS).White frame,waterproof design,antimicrobial treatment,compliance with electromagnetic compatibility requirements,a variety of video input and output interfaces,making the product fully comply with endoscope and operating room,ICU display requirements.

SDI LCD CCTV Monitor, LCD Monitor with SDI, Medicine LCD Monitor
AV medical grade computer monitor with 5ms Responsive Time , SMPTE295M
