Home > Products > Bus Digital Signage > 8ms Responsive Time 3G Digital Signage with Toughened Glass Panel

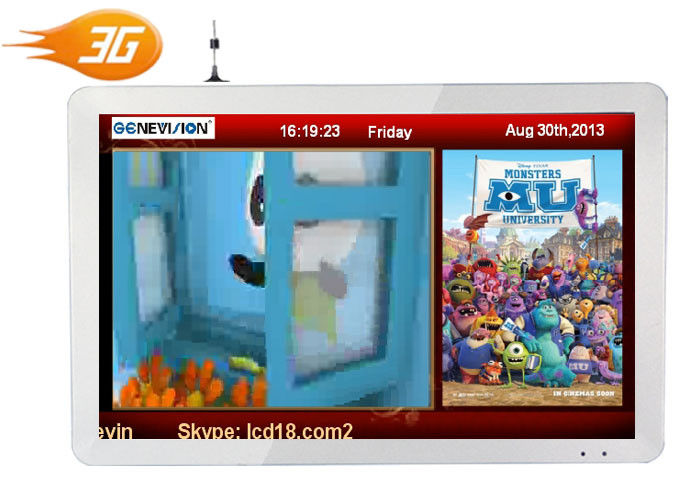

8ms Responsive Time 3G Digital Signage with Toughened Glass Panel

Product Details

Place of Origin: CHINA

Brand Name: Genevision

Certification: CE/ROHS/FCC/SGS

Model Number: MBUS-191BNG-D

Payment & Shipping Terms

Minimum Order Quantity: 50PCS

Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing

Delivery Time: 10 working days after received your payment

Payment Terms: T/T or western Union

Supply Ability: 3,000pcs per month

Get Best Price
Product Details
Highlight:

android digital signage

,

taxi digital signage

DC:
6V-36V
OEM:
Available
Split Screen Display:
Support
Resolution:
1280 * 1024
Size:
19.1"
Aspect Ratio:
16:9
DC:
6V-36V
OEM:
Available
Split Screen Display:
Support
Resolution:
1280 * 1024
Size:
19.1"
Aspect Ratio:
16:9
Product Description

 Responsive Time 3G Digital Signage with Toughened Glass Panel



1.Video formats:MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)

2.Audio formats:MP3

3.2mm toughened glass/Acrylic panel cover the surface

4.Free editor rolling subtitle/top sticker/break power memory

5.Set multiple password(machine/card take Safety lock,can guard against theft)

6.Support 3G sim card.

7.Built-in 3G module.

8.DC, 6V-36V power is available

9.Support split screen



Description:

1,Suport 6-36 V dc power supply;

2,Shell is made of high quality hardware,Ceiling mounted or hang back fixed is optional.

3,Can be installed in advertising program flow subtitles, flows in a broadcast subtitles.

4,support 3G sim card for connecting 3G network.

5,Powerful time function, can be set up five time every day, seven days a week can be set, implement all 24 hours no one management.

6,Car horn: users can choose according to the actual need sound system; A built-in video and audio is broadcast system, horn rated power for 2 * 5 W; Another: built-in amplifier (can support 300 W power), users can connect directly with the car horn.

7,Software to update ads file for the machine.

8,Server farm set up in the head-quaters network management center adopting advanced B/S management structure to handle ,control , monitor all kinds of broadcasting media of information and release various multimedia information.

9,Through managing the allocation of users and the division of corresponding limits of authority or signing in the server management center ,we can control the long-distance terminal of DMB ,distributed real time executive and publish financial data  ,multimedia information ,controlling information ,programme guide,in the meanwhile,we upload and issue the sub-account ,verify the master account to achieve the management of simple division of labor.

10,Support the user-defined split screen.it can add as many as 8 screen elements (time .date.picture,video,financial information ,subtitle ) and free to change the position ,size and frame of the screen elements.

11,Grouping management ,aiming at playing distinct content of different sales network and using zone to enhance the pertinence of information

12,Fixed-time download:setting the downloading time of source program (like seating 00:00 to 6:00 a.m),which would make the best of idle network source as well as ensure  the normal use of main tractions

13,Onboard watch-dog design that realizes the automatic recovery when the devices malfunction

14,Level-2 review of broadcasting content and supervision by technical means to prevent the control of system from the  illegal users and ensure the  legality of information to the public.

15,Server can connect with the broadband in static or dynamic setting assuring the salability of broadband

16,Manage it at any time or any where without restraint of IP address and regions

17,Real-time checking on the broadcasting content of terminal

18, Real-time interception of network information such as stocks ,exchange rate ,weather

Specifications:

Technical Parameter for LCD Panel

Panel Size

19.1inch real color LCD screen

Aspect Ratio

16:9

Active Area

379mm(H) x 304mm(V)

Max. Resolution

1280x 1024

Dot Pitch

0.294mm(H) x 0.294mm(W)

Number of Color

16.7M

Brightness

500cd/m2

Contrast Ratio

1000:1

Responsive Time

8ms

Panel Life

above 50000 hours

Storage Medium

Flash memory card

2gb to 36gb for the capacity

Support Ad files

Video formats

MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

AC 110V - 240V, 50/60HZ

Storage Temperature

 -7 to 65 Celsius degree

Normal Working Temperature

 -5 to 65 Celsius degree

Applications

Bus,Taxi,Subway





Competitive Advantage:

A ad player with 3g can upload ad files from control center via software,save much labor and time.when you need update ads file for all machine,you can use software to upload new ads file into all machine at one time
