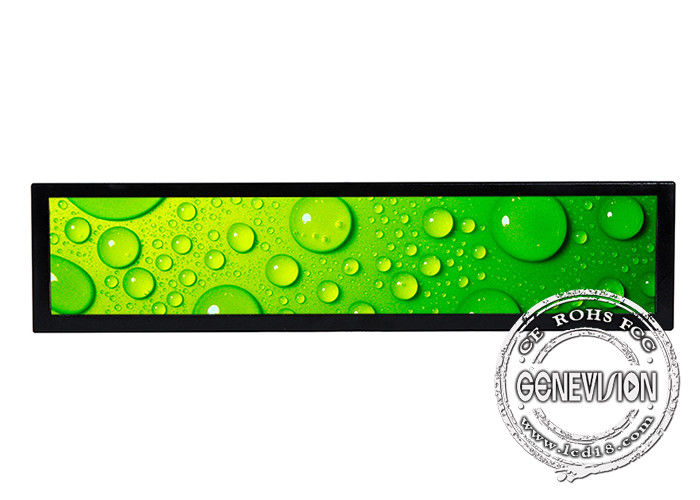

300cd/M2 Brightness Stretch Monitor Display With Shelf Edge Installation

300cd/M2 Brightness Stretch Monitor Display With Shelf Edge Installation

Product Details:

Place of Origin: CHINA
Certification: CE, FCC, ROHS, CCC
Model Number: MG-240

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Packaging Details: Carton and wooden box
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set /month
Get Best Price Contact Now

Detail Information

Screen Size: 23.6 Inch Cut Stretched LCD Panel Brand: BOE Original Panel, A Level
Brightness: 300cd/m2 Installation: Shelf Edge
Port: In, DVI In, VGA In Color: White, Black Or Any Other Color
High Light:

lcd bar display


stretched monitor display

Product Description

24 Inch BOE 300nits Shelf Edge Stretched LCD Display Monitor with in


Quick details:

1. BOE original panel, 1/3 cut of 27"

2. Brighness of 300nits

3. Resolution of 1920*360

4. Metal housing color be in black or white or any other pantone color

5. With in/DVI in/VGA in, user can use their own media player box

6. To be installed on shelf edge



More and more LCD stretched display is applied for retail shops, chain stores and supermarkets, this is really a very big market, just imagine how many shops all over the world, comparing with LED screen, LCD panel with high definition resolution, each little size words can be showed clearly and easy to be read, LCD scree color is more bright, for some shopes, the ceiling light is very bright, and lcd bar panel also can be in 600nits and 700nits.


Metal housing design is super slim and light in weight, so can be installed easily on shelf edge, also with anti-theft design, it can be safe in public area.


With this kind of cute lcd stretched screen, user don't need to use any sticker or label to show price, pin code and commodity name, all info can be showed and updated via internet by the remote control software, just need some mouse click, all retail shops commodity info can be changed within several minutes, all work runs fast and in high efficiency.


Our lcd bar display can be a monitor with in, DVI in and VGA in, user or media company can connect to their own media player box, also Android system or Windows system can be embedded into the metal housing, user can use our free remote control software CMS or their own APP.


Metal housing color can be black or white or any pantone color, all function can be customized with bulk order to support.



Optional Functions: Open frame ,Touch screen, Motion sensor, wifi/3G 4G/RJ45 network function, Android/Windows OS etc......
The machine operating temperature: -0~50°C,Storage Temperature:-20~60°C.
Advertising Features:
1. Application fields: Can be widely used in hotels, office buildings, the elevator, the exhibition site, entertainment and leisure facilities, but also in the subway station, train stations, airports, shopping malls, supermarkets, chain stores, specialty stores, convenience stores, promotional counters and other occasions etc......
2. Outer shell is made of extra good quality of metal material, which is painted by powder-spray craft work.
3. Support shockproof and dust proof function.
4. Adopts high transparent tempered glass as protection layer toprevent lcd/led panel being broken or distorted.
5. Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) and whole machine from being stolen.
6. Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional )
7. switch on automatically loop playback, support files in mixed,pictures,video,music.
8. support MPEG4(avi: div-x,x-vid),MPEG2(dvd,vob,MPG2),MPEG1(vcd,dat,MPG1),JPEG,MP3 format etc...
9. support OTG copy function,USB file automatically COPY to memory card.
10. automatic power-on/off, rolling caption, time display, playlists, vertica/horizontal screen, time and volume functions etc...
11. Image playback: rotate, slide show, background music etc...
12. Support 5 groups of auto power-on/off timer, able to set those 5 groups of time 1 day and 7 days in 1week.
13. Automatically generate play logs, file playback status query
14. support the specified file playing in a specific time spot (option)




Scren size 24.0 inch (1/3 cut of 27.0")
Active Display Area 597.888 × 112.104 (H×V) mm
Aspect Ratio 16:4
Visual Angle 178/178
LCD panel BOE original panel, A Level
Brightness 300cd/m2
Contract Ratio 1200:1
Resolution Ratio 1920*360
Color Components 16.7M
Surface treatment Antiglare (Haze 25%)
Response Time 10ms
Power Consumption 20W
Power Supply Input:DC 8-36V, with adaptor
Material Metal
Color of Shell white or black
Life of Panel 60000Hours
Bare dimension(estimate) TBC
Carton packing size(estimate) TBC
OSD Language English, Chinese, French, German, Italian, Spanish, Arabic etc.
Working Temperature 0°——50°
Storage Temperature -20°——60°
Accessory Power Cables, IR Remote Controller, Allen key
Mainboard Configuration
Interface in*1, VGA in*1, DVI in*1



LCD cut stretched bar display is widely used in supermarket, no need paper sticker or label to show price any more, also can be used in costmetic shop and other retail shops where has shelf. Also with a different installation way, it can be used for airport to show flight information, tto be used in rain station and subway station to show train and subway arriving and leaving time.
