All In One IP65 Sunlight Readable Outdoor Digital Signage
Product Details:
| Place of Origin: | China |
| Brand Name: | Genevision |
| Certification: | CE,ROHS,FCC |
| Model Number: | MAD-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | 1500usd/pcs |
| Packaging Details: | Packing in the carton and then strengthened with wooden case. |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Type: | TFT | Max Resolution: | 1920*1080 |
|---|---|---|---|
| Viewing Angle: | 178*178 | Contrast Ratio: | 3000: 1 |
| Brightness: | 2000 Nits | Response Time: | 8ms |
| Input Voltage: | AC100~240V 50 /60 HZ | Warranty: | 1 Year |
| Installation: | Floor Standing Kiosk | ||
| High Light: | Sunlight Readable Outdoor Digital Signage,IP65 Outdoor Digital Signage,2000 nits outside digital signage |
||
Product Description

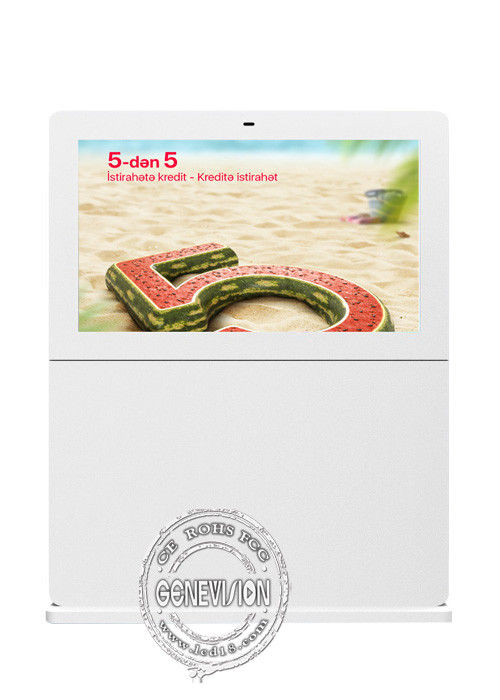

Floor Standing All in one PC 55" Outdoor Digital Signage inbuilt camera Waterproof screen IP65 and Sunlight readable
|
Panel parameter |
Panel type | 55”LCD panel |
| Display area | 1209 *680mm | |
| Display Aspect ratio | 16:9 | |
| Back light type | LED | |
| Resolution | 1920*1080 | |
| Brightness | 2000cd/m2 | |
| Contrast | 3000:1 | |
| Viewing angle | 178°(H) / 178°(V) | |
| Lifespan | 60000 hours | |
|
Front protective glass
|
6mm AR laminated glass
|
99.99% sun UV |
| More than 50% of solar radiation | ||
| Light transmittance is over 93% | ||
| Reflectance is less than 3% | ||
| The total heat insulation rate of sunlight is over 50% | ||
| Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater) | ||
| Cooling system |
Fully intelligent independent research and development of cooling system |
Voltage 24V |
| Working Voltage 20.4-27.6V | ||
| Starting voltage 12V | ||
| Average speed 2400 rpm minimum speed 2160 rpm | ||
| Average current 0.26A maximum current 0.312 | ||
| Access to power average 3.12 max 3.74 | ||
| Average airflow 74 minimum airflow 66.6 | ||
| Average static pressure 2.0 Minimum static pressure 1.8 | ||
| Noise 33db | ||
| It can automatically adjust the fan speed according to the working temperature, with heating function to meet the outdoor work of -40-55 degrees. | ||
| Electrical parts | Backlight power supply | According to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers) |
| Automatic light perception | Automatic Photosensitive Probe - Automatically recognizes the surrounding environment to automatically adjust the screen brightness | |
| Lightning protection device | Zhengtai lightning protection device | |
| AC contactor | Chint AC contactor | |
| Microcomputer time switch | Time switch can be set in different time periods. More than 20 groups can be set. | |
| power input | AC 108-115V AC 208-240V | |
| Total power | 1200W | |
| Working environment | Fan voltage | 24V |
| Lcd screen voltage | 24V+12V mix power supply 200-400W | |
| Working temperature | -35-55° | |
|
Product related |
storage temperature | -20°C to 60°C |
| Working humidity | 5% to 100% | |
| Storage humidity | 5% to 100% | |
| Installation | Floor standing | |
| Appearance | Package | Use pearl cotton shock absorber + wooden frame packaging |
| Appearance colour | Silver | |
| Frame material | Hot-dip galvanized steel sheet T=1.5+ outdoor double-sided spray outdoor powder | |
| Gross weight | 350KG |
Tag:outdoor waterproof kiosk,landscape outdoor screen,outdoor touch screen kiosk
