Weather Resistant Digital Signage Kiosk IP66 Waterproof Grade

Weather Resistant Digital Signage Kiosk IP66 Waterproof Grade

Product Details:

Place of Origin: CHINA
Brand Name: GENEVISION
Certification: CE, FCC, ROHS, CCC
Model Number: MAD-550

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD4000-USD6000/PC
Packaging Details: Carton and wooden box
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set /month
Get Best Price Contact Now

Detail Information

Key Word: Super Thin High Brightness Outdoor Kiosk Digital Signage High Brightness: 3500nits
Thickness Dimension: 98mm Waterproof Grade: IP66
Touch Screen: Not Available Screen Size: 32inch, 43inch, 49inch, 55inch And 65inch Optional
Ventilation: Fan Narrow Bezel: 38 Mm Only
High Temperature Resistant: 110℃ Harsh Environment Temperature Working Time: 7824*365 Day
High Light:

Weather Resistant Digital Signage Kiosk

,

Digital Signage Kiosk IP66

,

digital kiosk display ip66

Product Description

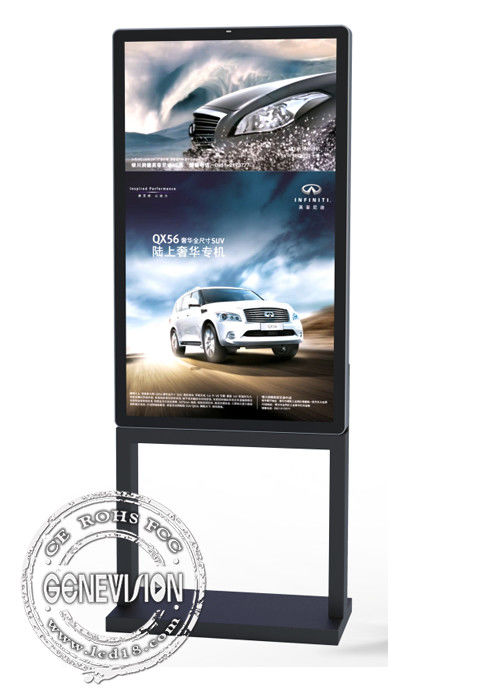

32" to 65" All Weather Resistant Outdoor Digital Signage Kiosk IP66 Waterproof Grade


Quick details of ultra thin open frame lcd advertising screen:

1. Newly develop high technology for outdoor digital signage.

2. 3500nits super high brightness panel.

3. IP66 waterproof resistant

4. Can be for super high environment temperature of 110℃

5. 7*24*365 day working time.

6. System can be HDMI in monitor, or USB advertising update standalone, or Android / Windows with remote control software.

7. Super narrow bezel of 38mm.


Specification of sunlight readable digital signage player:



Resolution 1920*1080
Screen size 55inch
Display area 1209*680 mm
Glass AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface
Brightness 3500cd/m2, Brightness: has brightness sensor, auto-adjustment as per different daylight to lower power consumption
Number of Color 16.7M
Response time 8 (ms) approximately
Contrast 1000:1
View angle 178°/178°(H/V)
Life Time > 50000 (hours)
Power Supply AC 110V~240V,50/60HZ,
Electronic part Electricity leaking protection, lightning protection
Shell Material Galvanized steel+outdoor power painting, anti-corrossion for more than 10years
Heat Dissipation Air cooling fans
Speaker 10W*2
Power Consumption 180W, Industrial-grade power board, brightness auto-adjustment to lower power consumption
Photo formats JPEG ,BMP ,GIF ,PNG
Audio formats MP3,WAV,WMA
Video formats MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V,
Dimension TBC
Wooden box packing TBC
Touch Type NO
Normal Working Temperature -40 to 55 Celsius degree





CPU I5
Memory DDR3 4G
SSD 128G
System Beta Win 10
Internet connection Wifi, Lan, 4G, Bluetooth
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1


Description of waterproof LCD advertising player :



Outdoor integrated smart screen has 38mm ultra narrow frame, 98mm ultra-thin thickness and 96% super large screen, which is narrower, thinner and lighter than conventional outdoor machine.



The outdoor integrated smart screen adopts LCD optical bonding integrated design. There is no cooling channel in front of the screen, which is free of dust maintenance. It can be easily customized to adapt to various external environments.



Even in direct sunlight, the outdoor integrated smart screen can resist the blackening defect as high as 110 ℃, and still display the image clearly as before, while the temperature resistance of the conventional screen is only 70 ℃.



The military superconducting heat dissipation technology used in the outdoor integrated smart screen can export heat at the fastest speed, and minimize the number of cooling fans or no fan heat dissipation.



The outdoor integrated intelligent screen provides excellent outdoor display effect with the brightness of 3500nits and 24 * 7 all-weather performance. The conventional outdoor machine can only achieve 2000nits.



The circular polarized liquid crystal makes the display angle of the outdoor integrated smart screen can be viewed from almost any angle. It can be placed horizontally and vertically. It is also friendly to sunglasses.



The protection grade of the outdoor integrated intelligent screen is IP66, which can be waterproof, dustproof, sunscreen, cold proof, anti-corrosion, anti-theft, etc., so it can be used stably and reliably in almost all kinds of outdoor weather.



The IK10 grade 9mm double-layer ar laminated glass equipped with outdoor integrated intelligent screen provides the best protection for outdoor complex environmental factors, and reduces the damage caused by external impact to the greatest extent.



The automatic brightness sensor automatically adjusts the brightness of the LCD screen according to the brightness of the external light, so as to reduce the power consumption to the greatest extent, save energy and protect the environment.



The use of outdoor integrated smart screen can be designed for different application scenarios.



Application of semi outdoor high brightness digital signagage screen:



Outdoor LCD advertising machine has become a new outdoor media, which is applied in tourist attractions, commercial pedestrian street, residential property, public parking lot, public transportation and other public places where people gather. It is a multimedia professional audio-visual system that releases commercial, financial and entertainment information through LCD terminal display equipment.
