Home > Products > Touch Screen Digital Signage > 16.7M 55 Inch NFC Card Reader Touch Screen Kiosk

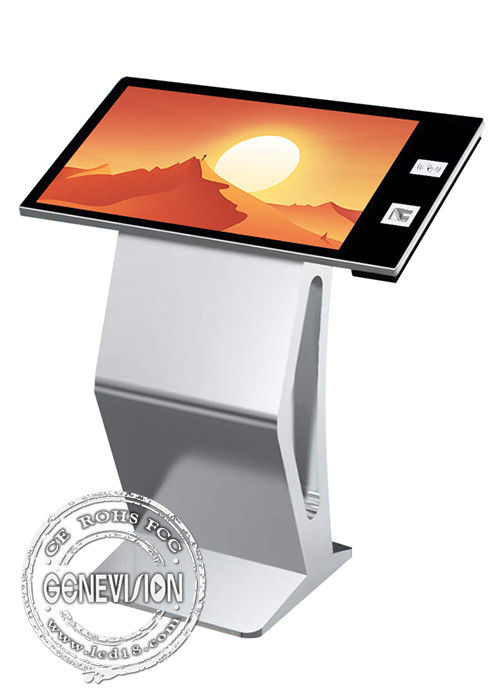

16.7M 55 Inch NFC Card Reader Touch Screen Kiosk

Product Details

Place of Origin: China

Brand Name: Genevision

Certification: CE CCC ROHS

Model Number: MAD-550

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD1100-USD1500 / unit

Packaging Details: Standard export carton reinforced by wooden box

Delivery Time: 10-15 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000pc per month

Get Best Price
Product Details
Highlight:

NFC Card Reader Touch Screen Kiosk

,

55 Inch Touch Screen Kiosk

,

16.7M Touch Screen Digital Signage

Key Word:
43 Inch Floor Standing Touch Screen Kiosk
Screen Size:
15.6inch To 65inch
Certificate:
FCC, ROHS, CE, CCC
Touch Screen:
Yes, 10 Points
NFC Card Reader:
Yes, Inbuilt
QR Code Scanner:
Yes Inbuilt
Thermal Printer:
Yes, Optional
Color:
Support Customization
Application:
Hotel Office Reception Desk, Exhibition Center, Retail Shop, Shopping Mall, Library, Airport
OEM:
Support
Key Word:
43 Inch Floor Standing Touch Screen Kiosk
Screen Size:
15.6inch To 65inch
Certificate:
FCC, ROHS, CE, CCC
Touch Screen:
Yes, 10 Points
NFC Card Reader:
Yes, Inbuilt
QR Code Scanner:
Yes Inbuilt
Thermal Printer:
Yes, Optional
Color:
Support Customization
Application:
Hotel Office Reception Desk, Exhibition Center, Retail Shop, Shopping Mall, Library, Airport
OEM:
Support
Product Description

55 Inch PC All In One Touch Screen Kiosk with NFC Card Reader and QR Code Scanner


Quick details touch screen ticketing kiosk :



1. Popular size can be from 15.6inch to 65inch.

2. If with screen size bigger than 32inch and also need thermal printer inbuilt, floor stand should be customized higher.

3. 10 point interactive touch screen.

4. NFC card reader inbuilt.

5. QR code scanner inbuilt.

6. Thermal printer optional.

7. Both model and color can be customized.

8. System can be Android or Windows.

9. Customization project is welcome at our digital signage factory.



Specification of touch screen query machine :



Panel size 15.6 inch to  65 inch
Resolution 1920*1080
Panel brand BOE, AUO etc. A level
Display area 476*268mm
Brightness 250cd/m2 to 400 cd/m2
Number of Color 16.7M
Response time 8 (ms) approximately
Contrast 1200:1
View angle 178°/178°(H/V)
Life Time > 50000 (hours)
Power Supply AC 110V~240V,50/60HZ
Power Consumption 40W - 180W
Photo Formats JPEG ,BMP ,GIF ,PNG
Audio Formats MP3,WAV,WMA
Video Format MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V
Shell Material Aluminum+Metal
Bare diemension TBC
Wooden box dimension TBC
Thermal printer Inbuilt
Touch Type 10-point capacitive touch screen
NFC card reader Optional
QR code scanner Optional
Thermal printer Optional
Normal Working Temperature 0°——50°
Normal Storage Temperature -20°——60°
Accessory Power Cable, Allen key
OSD Language English, Chinese, French, German, Italian, Spanish,Arabic etc.



CPU RK3288 Quadcore Cortex-A17 1.8GHz
Network connection LAN, WIFI
RAM DDR4 2G
Memory 16G
The operating system Android 7.1, 9.0, support Google Play
Interface HDMI out*1, USB*1, USB OTG*1, Lan*1, SD card*1



CPU I3, I5, I7
Network connection LAN, WIFI
Memory DDR3 4G, 8G
SSD 128G, 256G
The operating system Windows 10
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1


Description of LCD self service checking station :



This LCD touch screen kiosk is quite common for several years in LCD digital signage industry, but we've developed this model by inbuilt several components to make it more smart, you can also call it as a self service kiosk.



Both 2K and 4K resolution panel are common, with 10 point capacitive touch screen, it can attract much attention. Metal shell material and aluminum frame provide duable quality, with silk printing NFC logo on the touch screen tempered glass and inbuilt a piece of NFC card reader inside, it can scan both IC and NFC card in fast speed. The position of NFC card reader and 1D 2D code scanner can be on either side of LCD screen. Besides, thermal printer can be inbuilt into floor stand, for bigger size in 32inch and above, we need to customize stand higher so thermal printer postion can be in upper side to make sure ticket can be easily took away by consumer, as a digital signage factory for 17 years, we have much OEM and ODM experience in customization project and always trying our best to provide a perfect product.



As we always can provide, system can be Android, Windows, Ubuntu or Linux as per customer's request, call specification can be met at reasonable cost.



For shipping, we suggest pack in playwood box to protect LCD monitor, for order of hundreds units, screen can be in  honeycomb carton and put into container directly.




Application of scanner PC all in one touch kiosk :



This touch screen ticket dispenser kiosk can be put in hotel reception desk and bank for people to check information or waiting for their turn, also the self service touch screen kiosk can be put in library and exhibition center, besides, the touch screen payment kiosk can be put in shopping mall for POS terminal.


16.7M 55 Inch NFC Card Reader Touch Screen Kiosk 0

16.7M 55 Inch NFC Card Reader Touch Screen Kiosk 1

16.7M 55 Inch NFC Card Reader Touch Screen Kiosk 2
