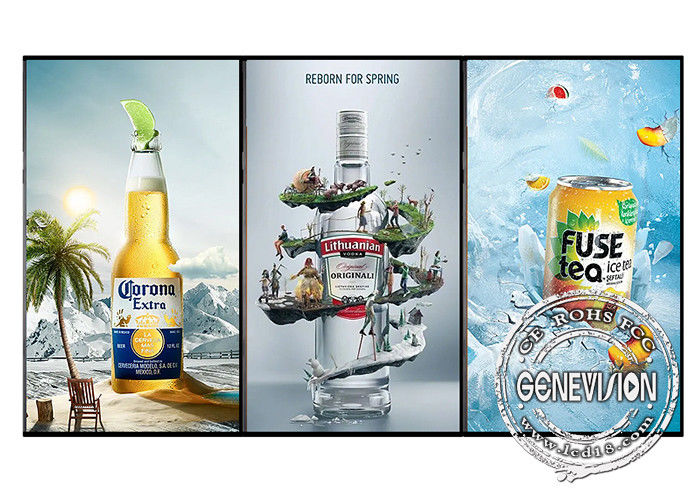

Vertical Installation 3.5mm 8mm Bezel Restaurant Menu Board
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MG-460 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD500 - USD 800 / PC |
| Packaging Details: | Standard export carton reinforced by wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000PC per month |
|
Detail Information |
|||
| Keyword: | Menu Board LCD Video Wall | Screen Size: | 43inch, 46inch, 49inch, 55inch |
|---|---|---|---|
| System: | Android With CMS | Resolution: | 1920*1080 |
| Narrow Bezel: | 3.5mm, 8mm | Installation: | Vertical, Horizontal |
| Full Screen Displaying: | Support | Application: | Airport, Restaurant, Macdonalds, KFC |
| Bracket: | Ceiling Mount | Certificate: | CE, FCC, ROHS, CCC |
| High Light: | 8mm Bezel Restaurant Menu Board,Vertical Installation Restaurant Menu Board,3.5mm Bezel Digital Signage Menu Boards |
||
Product Description
46" to 55" Restaurant Menu Board Wall Mount LCD Display Landscape Vertical Installation Digital Signage Video Wall
Quick details menu board LCD video wall :
1. 46inch, 49inch and 55inch.
2. 3.5mm bezel and 8mm narrow bezel optional.
3. Random screen qty installed together.
4. Wall mount or ceiling mount.
5. Support both vertical and horizontal installation.
6. Support full screen displaying or each screen displaying different advertising.
7. CMS to be provided for free.
8. To be installed in airport flight indication board, restaurant menu board, subway station sign etc.
Specification of airport sign LCD screen wall :
| Specification | MG-550 ( DV550FHM-NV8) |
Panel Size | 55" | ||
| Panel brand | Original BOE A level | ||||
| Aspect Ratio | 16:9 | ||||
| Visual Angle | Horizontal 178/Vertical178 | ||||
| Brightness | 500cd/sqm | ||||
| Bezel | 3.5 mm | ||||
| Back light | LED backlight | ||||
| Contract Ratio | 1200:1 | ||||
| Resolution Ratio | 1920*1080 | ||||
| Color Components | 16.7M | ||||
| Response Time | 8ms | ||||
| Power Consumption | 120W/150W | ||||
| Standby power consumption | 10W | ||||
| Power Supply | Input:AC110-220V-50/60Hz | ||||
| Life of Panel | 60000Hours | ||||
| Panel Display Area | 1209.6*680.4mm | ||||
| Outline Dimension | 1213.5*684.3*118.1mm | ||||
| Port | Input: HDMI*1,VGA*1,DVI*1,AV*2,RS-232*1,Output: AV*1,RS-232*2 | ||||
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 | ||||
| HDMI Resolution Ratio | 480I,480P,576I,720P,1080I,1080P | ||||
| Split Screen/PIP Mode | Two signals image or PIP | ||||
| Splice Function | Multiscreen Splice Function(image processing Function) | ||||
| Carton Packing | 2pc/carton, carton size: 135*34*81cm, G.W.:58kg | ||||
| Wooden box packing | 7pc/wooden box, wooden box size:140*128*98cm, G.W.:281kg | ||||
| Bracket carton packing(for 7pc system) | 146*34*25cm, G.W.:33kg | ||||
Description of restaurant LCD video wall menu board :
More and more customer would like to use LCD screen display to replace traditional poster menu board, this is lifetime benefits from one investment, it will cost a lot of larbor and money to change paper poster from time to time, but if with digital menu board, you just need to do some mouse click with the background software, advertising image and video can be updated within several seconds, and they will loop display from day to night, LCD advertising screen can auto power on and off according to the preset working time.
At the beginning, digital signage with bulky metal housing was recognized as with high quality, but now narrow bezel and light weight digital signage display is more and more popular, LCD video wall has it's advantage of having narrow bezel of 8mm, 3.5mm, 1.7mm or even 0.88mm and high brightness of 500nits or 700nits, just imagine, the light is very bright in our restaurant, if LCD advertising monitor with low brightness, it can't attract much attention, also advertising can not be seen clearly.
Several LCD video wall screen installation together with very narrow bezel can make the digital menu board looks professional, with the remote control software, they can do full screen displaying or each screen display different, or mix displaying both video and image.
Wall mount bracket and ceiling mountable bracket can be customized as per request.
Application of LCD video wall menu board :
Industrial grade LCD advertising screen can be used in restaurant such as KFC and Macdonlads, also the digital menu board can be hang in subway station and airport as LCD sign indicator, letters can be editted any time.
