Triangle Outdoor Digital Signage Kiosk
, IP65 Outdoor Digital Signage Kiosk
, Triangle Outdoor Digital Signage

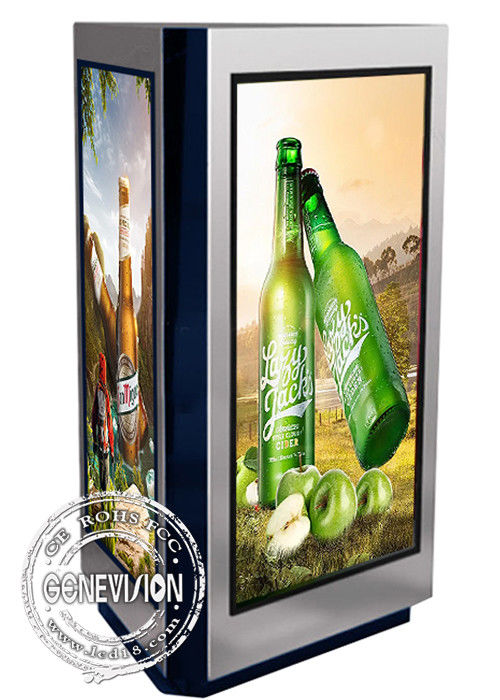

55 Inch IP65 All Weather Android Triangle Outdoor Digital Signage Kiosk
Quick details of three sided outdoor lcd advertising totem :
1. 55 inch three sided waterproof metal shell design.
2. Three screens can display the same or different advertising contents.
3. Various system available like Android, PC all in one, Linux, Ubuntu etc.
4. 2000cd/m2 high brightness with brightness sensor to lower power consumption.
5. Watproof painting metal shell in IP65 grade.
6. With AC inside for heat ventilation.
7. Touch screen available, capacitive or foil touch.
Specification of three sided outdoor lcd advertising totem :
| Resolution |
1920*1080 |
| Display area |
1209*680mm |
| Brightness |
2000cd/m2, with brightness sensor |
| Number of Color |
16.7M |
| Response time |
8 (ms) approximately |
| Contrast |
1200:1 |
| View angle |
178°/178°(H/V) |
| Life Time |
> 50000 (hours) |
| Power Supply |
AC 110V~240V,50/60HZ |
| AR glass |
AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface |
| Electronic part |
Electricity leaking protection, lightning protection |
| Shell Material |
Galvanized steel+outdoor power painting, anti-corrossion for more than 10years |
| Power Consumption |
450W |
| Photo Formats |
JPEG ,BMP ,GIF ,PNG |
| Audio Formats |
MP3,WAV,WMA |
| Video Format |
MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V |
| Shell Material |
Aluminum+Metal |
| Bare diemension |
TBC |
| Wooden box dimension |
1pc/box, 0.95*0.85*2.2M, vertical packing |
| Touch Type |
NO |
| Normal Working Temperature |
0°——50° |
| Normal Storage Temperature |
-20°——60° |
| CPU |
A40 Quadcore 1.2GHZ |
| OS |
Android 7.1, support Google play |
| RAM |
DDR3 1G |
| Memory |
8G |
| Internet connection |
Wifi, LAN |
| Interface |
HDMI out*1, USB*2, Lan*1, TF card*1 |
| Monitor board |
HDMI in*1, DVI in*1, VGA in*1 |
| CPU |
i3, i5, i7 |
| RAM |
DDR3 4G,8G |
| Memory |
128G, 256G |
| Internet connection |
WIFI, LAN |
| System |
Ttrial version of Win10 |
| Interface |
HDMI out*1,USB *4 ,LAN *1, VGA*1 |
Description of three sided outdoor lcd advertising totem :
Based on double sided outdoor LCD advertising kiosk, we developed this three sided waterproof LCD advertising totem, 3pc digital signage screen combined together to save installation space, also can help to save cost, this design is really a cost effective smart city kiosk for company and media company. Waterproof metal shell is in IP65 grade, anti rust and long time usage which is designed to be used for 10 years.
Can be with touch screen and to be used as query machine on the street for smart city construction. Three screens can display the same or different advertising at the same time, also all LCD advertising display can share the same heat ventilation system with an air-conditioner inside.
We have various system optional like Android, PC all in one, Linux, Ubuntu etc, all can be customized as per your request.
Application of three sided outdoor lcd advertising totem :
The tripod outdoor LCD advertising kiosk can be put on street or road to be a part of smart city hardware, also the touch screen outdoor LCD advertising totem can be used in park with customized shape and color to attract more attention.
