43" Super Thin Wall Mount AIO Interactive Touch Screen Kiosk
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MAD-430 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD300-USD1000/PC |
| Packaging Details: | Carton and wooden box |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 set /month |
|
Detail Information |
|||
| Key Word: | 43" Dual Screen Touch Screen Kiosk | Color: | Black/silver, Pantone Code Color |
|---|---|---|---|
| Certificate: | CE, FCC, ROHS, CCC, RCM | Touch Screen: | Available, 10 Fingers |
| Splitting Screen: | Yes, Can Be Designed By Remote Control Software | Maintenance: | Front Maintenance, Easy To Replace Screen |
| Remote Control Software: | Android System Software Is For Free | Light In Weight: | Yes |
| High Light: | AIO Interactive Touch Screen Kiosk,43" Super Thin Touch Screen Kiosk,AIO Wall Mount Kiosk |
||
Product Description

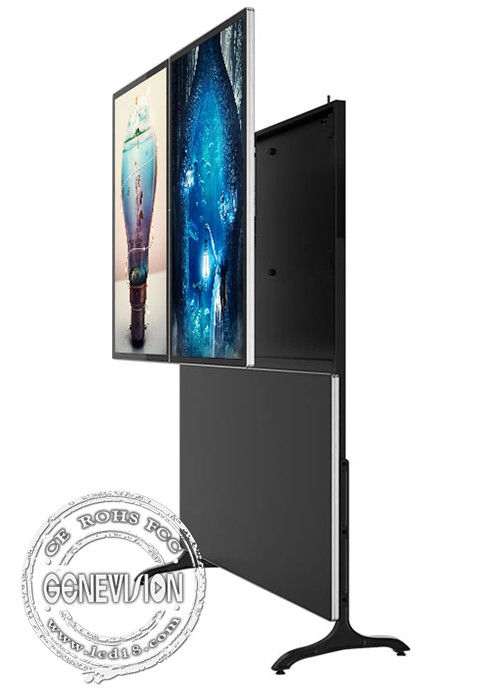

43 Inch Super Thin Wall Mount Touch Screen Kiosk Interactive Android PC All In One Totem
Quick details indoor side by side LCD touch screen kiosk :
1. Dual screen locate together side by side.
2. Super thin and light weight developed.
3. Steady standing on the floor.
4. Metal shell with tempered glass and aliminum frame.
5. Pantone color available.
6. Support screen hang on the wall.
7. IR touch or capacitive touch screen available.
8. Interactive touch screen software is for free if with Android system.
9. OEM and ODM projects can be support.
Specification of indoor side by side LCD touch screen kiosk :
| Panel size | 32" to 65" | |||||
| Resolution | 1920*1080 | |||||
|
TFT-LCD |
BOE original panel, A level | |||||
| Display area | 698*392mm | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1000:1 | |||||
| View angle | 170°/160°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ | |||||
| Power Consumption | 80W | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Aluminum+Metal | |||||
| Bare diemension | TBC | |||||
| Wooden box dimension | TBC | |||||
| Touch Type | 10-point IR touch screen or PCAP touch screen | |||||
| Installation | Wall mountable or floor standing totem | |||||
| Double sided design | Optional, can be with top and bottom two screens, double sided two screens or dual screens side by side | |||||
| Color | Black or silver or any Pantone color | |||||
| Normal Working Temperature | 0°——50° | |||||
| Normal Storage Temperature | -20°——60° | |||||
| CPU | A40 | |||||
| RAM | DDR3 1G | |||||
| Memory | 8G | |||||
| OS | Android 7.1, support google play | |||||
| Internet connection | WIFI, LAN | |||||
| Interface | HDMI out*1, USB*2, Lan*1, TF card*1 | |||||
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz | |||||
| RAM | DDR3 2G | |||||
| Memory | 8G | |||||
| OS | Android 7.1, support google play | |||||
| Internet connection | WIFI, LAN | |||||
| Interface | HDMI out*1, USB HOST*1, USB OTG*1, Lan*1, SD card*1 | |||||
| CPU | i3, i5, i7 | |||||
| Memory | DDR3 4G, 8G | |||||
| SSD | 128G, 256G | |||||
| OS | Windows 10 | |||||
| Internet connection | WIFI, LAN | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Description of indoor side by side LCD touch screen kiosk :
The super thin ELED LCD advertising display model is newly developed in 2021. The LCD screen is designed with wall mount bracket, can be hang on the wall, also the floorstanding cabinet is on optional, the wall mount display can be inbuilt into the metal housing so it become to be a floorstanding advertising totem.
Base is also changed a lot comparing to traditional digital signage design, now the base is smaller and light in weight, looks more fashionable and can still keep steady features. Besides, wheels can be added onto base so it can move anywhere quite easily.
Same as traditional LCD advertising player, it can be with IR touch or capacitive touch screen, system can be Android or Windows PC all in one, other system is also on optional.
Dual screen solution is also available, can be double sided floorstanding totem, dual screen facing the same direction, or two screens stand back to back.
Application of indoor side by side LCD touch screen kiosk :
This light weight wall mount touch screen kiosk can be widely used in shopping mall, airport, restaurant and retail shops, also the super thin movable portable wall mount touch screen totem can be put in any indoor business area.
