32in Aluminum Shell Self Service Touch Screen WiFi Kiosk
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MG-320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PC |
|---|---|
| Price: | 600-800USD per unit |
| Packaging Details: | Carton and wooden box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 set /month |
|
Detail Information |
|||
| Screen Size: | 32inch | Resolution: | 1920*1080 |
|---|---|---|---|
| Brightness: | 350cd/m2 | Touch Screen: | 10-point PCAP Touch |
| Scanner: | QR Code Scanner | Printer: | Thermal Printer |
| POS: | Yes | ||
| High Light: | Touch Screen WiFi Kiosk,Aluminum Shell WiFi Kiosk,32in Self Service Kiosk |
||
Product Description
32inch Aluminum Shell Self Service Touch Screen Register Terminal Wifi Kiosk With Windows System
Quick details:
● Plane Size: 32inch
● Plane Brand: SAMSUNG,LG,AUO, BOE (A level Screen)
● Resolution: 1920*1080 (FHD) @60hz
● Viewing Angle:178 /178
● Response Time: 60000 hours
● Object Induction Number (IR): 10 Points Capacitive Touch
● Network Support: Ethernet, support WIFI, wireless peripheral expansion, 3G/4G(optional)
● Power Supply Mode: Full duplex USB-powered DC +5V up to 500mA
Printer:
- Printing Method: Thermal Printing
- Resolution: 203dpi (8 dots/mm)
- Paper Width: 80mm
- Printing Width: 72mm
- Printing Speed: 150mm/s (Max)
- Detection Function: Temperature Detection and PNE Sensor
- Working Voltage: 24V DC
Scanner:
- Reading Mode: CMOS
- Reading Accuracy: >8mil
- Lighting: LED(6000k) 90lux @100mm
- Luminous Intensity: 265 LUX (130mm)
- Scannering Angle: Omnidirection Scan
- Scanning Speed: 30 times/s
- Resolution: 640*480 pixel
- Wokring Voltage: 5V DC
Description:

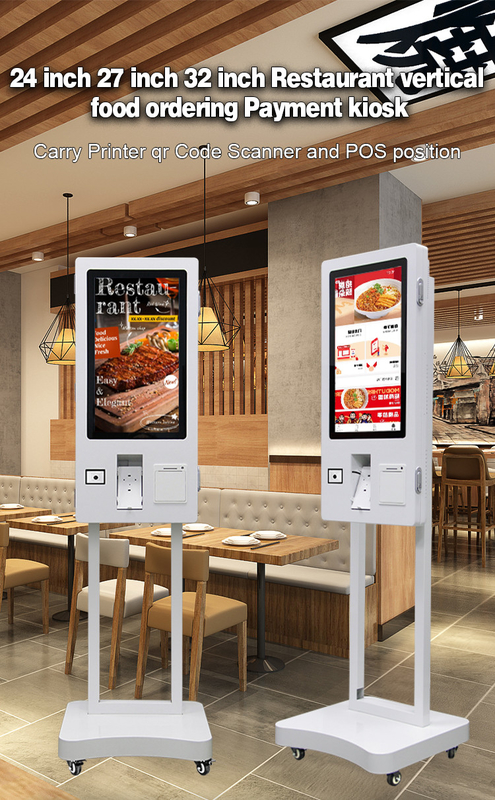

Restaurant LCD self-order payment kiosk becomes more and more popular, visitors can order food by themselves, no need waiters to serve them, after they press finished, web page will ask them to pay either by credit card or QR code scanner, and then the thermal printer will print receipt automatically, after that, the order will be sent to kitchen terminal automatically, fast food store don't need to hire more waitress to save company running cost, also for customers, they don't need to spend more time to wait to be served, all the process is fast and convenient for both customer and the food store. Self-Service ordering machine with powerful function and simple use method can bring better self-service purchasing experience to customers and help enterprises to save time, energy and labor cost. It is widely used in supermarkets, restaurants, airports and other scenarios.
Features:
* Customers order and pay by themselves
* 4mm tempered glass can resist magnitude 7 earthquake
* Both handwriting and keyboard input are supported
* Both Android and Windows support it
* 10 - point capacitive touch control, quick response and smooth operation
Advantage:
Increase Profit
1. Increase order size with a typical lift of 20-25% per order vs traditional POS verbal ordering.
2. Increase retail items sold with scan-and-go.
3. Grow 30% higher average typical ticket over mobile apps.
4. Promote higher margin items.
Specification:
| Resolution | 1920*1080 | |||||
| Display area | 521*293mm | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1000:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ | |||||
| Power Consumption | 30W | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Metal | |||||
| Bare diemension | TBC | |||||
| Wooden box dimension | TBC | |||||
| Color | White | |||||
| QR code scanner | Inbuilt | |||||
| Touch Type | 10 points real PCAP touch screen | |||||
| Thermal Printer | Yes, inbuilt, 80mm | |||||
| Pos machine | From client | |||||
| Normal Working Temperature | 0°——50° | |||||
| Normal Storage Temperature |
-20°——60° |
|||||
| CPU | J1900 | |||||
| Memory | DDR3 4G | |||||
| SSD | 64G | |||||
| Operation System | Beta Win7/10 | |||||
| Internet connection | WIFI, Lan | |||||
| Interface | out*1,USB *2 ,LAN *1, VGA*1, AV in*1, AV out*1 | |||||
Application:
The Self-Service Order Machine can be used in a variety is settings,such as:
Government (training public information release, government affairs publicity...)
Company Reception Room or Conference Room (Company Introduction, Exhibition, etc.)
Banks and other financial institutions (business inquiries in business halls, service promotion, etc.)
Telecom (business inquiry in business hall, business promotion in experience hall...)
Flagship stores, franchise stores and chain stores of fashion goods (new product promotion...)
Question and Answers:
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer who has been in produce comprehensive products for Advertising display for more than 10 years.
2. Q: What kind of product do you offer?
A: We offer Floor standing kiosks, Charging station kiosks, Wall mout display, Folded floor kiosk, Self ordering kiosks, Digital signage LCD player for Bus, Video wall and Mirror kiosks etc....
3. Q: What is the advantage of your factory?
A: With 2000sqm of workshop, Professional engineers and skilled workers.
4. Q: What kind of certificates for products do you have?
A: We have CE, ROHS, FCC certificates for both European market and Amercan market.
5. Q: Do you accept customized design for product?
A: Yes, we are able to provide customized design for customers, logo can be printed on the product and BIOS logo can be shown on the screen when it powered on.
6. Q: What is the life span for product panel?
A: 50000 hours for the life span.
7. Q: How soon to delivery the product after place the order?
A: Usually 10-15 day for sample, if bulk order need to check with our saleman
8. Q: What is your warranty of your product?
A: We offer 1 years warranty for all products.
