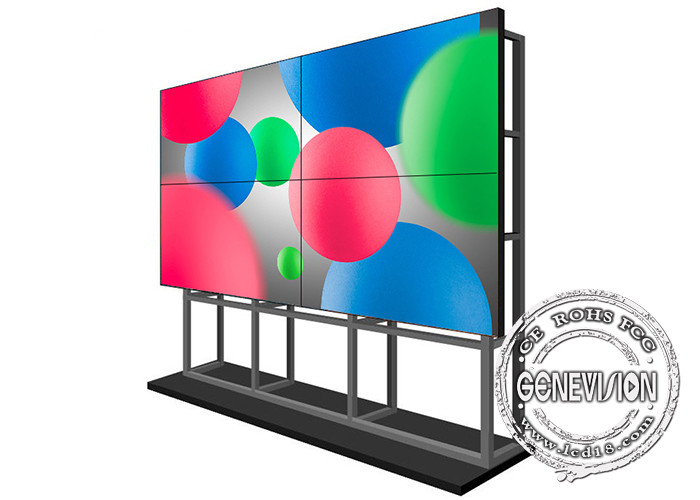

65 Inch BOE 4K DP Daisy Chain 2x2 LCD Video Wall With Matrix

65 Inch BOE 4K DP Daisy Chain 2x2 LCD Video Wall With Matrix

Product Details:

Place of Origin: CHINA
Brand Name: GENEVISION
Certification: CE, FCC, ROHS, CCC
Model Number: MG-650

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD1105 / PC
Packaging Details: Carton and wooden box
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set /month
Get Best Price Contact Now

Detail Information

Key Word: DP Daisy Chain 4K LCD Video Wall Panel Brand: BOE Original LCD Video Wall Panel
Screen Size: 65 Inch Narrow Bezel: 3.5mm Seamless LCD Video Wall
Resolution: 3840*2160 Port: HDMI In*1, DVI In*1, VGA In*1, DP*1, RS232 In*1, RS232 Out*2
Insllation: Wall Mount, Pop-out Bracket, Floorstanding Bracket Or Cabinet Daisy Chain: Support
Certificate: CE, FCC, ROHS, CCC, RCM Delivery Time: One Week
High Light:

2x2 LCD Video Wall

,

BOE LCD Video Wall

,

BOE 4K Digital Signage Video Wall

Product Description

65 Inch BOE 4K DP Daisy Chain 2X2 LCD Video Wall Full Screen Digital Sinage with Matrix​




Quick details of digital signage big screen wall :

1. 65inch BOE original panel, A level.
2. 3840*2160 4K resolution.
3. With DP daisy chain port which also support 4K signal input.
4. Various installation: 2x2, 3x3, 4x4, 2x3, 3x4 etc.
5. Full screen displaying, each screen can display different picture, if need picture in picture, we have processor on your choice.
6. Can be installed on the wall with standard bracket or pop-out bracket, also we have floorstanding bracket or cabinet.
7. Has Android or Windows player box for signal input and has free remote control software.

Description of digital signage big screen wall :

Genevision has various LCD video wall, screen size can be 46inch, 49inch, 55inch and 65inch, hotsale brand is BOE and LG panel, resolution can be 2K or 4K, seamless bezel can be 3.5mm or 1.7mm, high brightness can be in 500nits and 700nits, different screen and brand has different price, also price is changing every several days, suggest contact us for details for any specific project.

This 65inch has 4K resolution screen, also motherboard has DP daisy chain port which support 4K signal input, with a splitter, it can provide a full screen displaying solution, if with a matrix, splitting screen displaying fucntion is supported as well, if picture and picture featuer is also needed, we will use a processor to meet the request. We're one-stop provider, all spare parts included can be supplied and sent in one package.

Besides, each screen has 1pc HDMI cable, 1pc RS232 cable and 1pc power cable for free, so for 2*2 installation, no need to buy extra cables, for other installation, we will recommend what length cable you need to buy extra, you also can buy them locally.

Support various installation models: wall mount, floorstanding bracket, floorstanding cabinet.

Specification of digital signage big screen wall :



Specification MAD-650 Panel Size 65"LED screen
Panel brand Original BOE A level
Aspect Ratio 16:9
Visual Angle Horizontal 178/Vertical178
Brightness 500cd/sqm
Bezel 3.5 mm
Back light LED backlight
Contract Ratio 1200:1
Resolution Ratio 3840*2160
Color Components 16.7M
Response Time 8ms
Power Consumption 120W/150W
Standby power consumption 10W
Power Supply Input:AC110-220V-50/60Hz
Life of Panel 60000Hours
Panel Display Area 1209.6(W)×680.4(H) mm
Outline Dimension 1211.54(W)×682.34(H)×118.5mm
Port Input: HDMI in*1,VGA*1,DVI*1,RS-232 in*1, RS232 out*2, DP*1
VGA/DVI Resolution Ratio 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080
Resolution Ratio 480I,480P,576I,720P,1080I,1080P
Split Screen/PIP Mode Two signals image or PIP
Splice Function Multiscreen Splice Function(image processing Function)
Carton Packing 2pc/carton, carton size: 135*34*81cm, G.W.: 58kg
Wooden box packing 7pc/wooden box, wooden box size: 140*128*98cm, G.W.:281kg
Bracket carton packing(for 7pc system) 146*34*25cm, G.W.: 33kg


Also, we have other brand of LCD video wall as below for your option :



MD-DV460FHMNV0 DV460FHM-NV0 BOE     500nits 46寸3.5MM
MD-DV490FHMNV4 DV490FHM-NV4 BOE     500nits 49寸3.5MM
MD-DV550FHMNV8 DV550FHM-NV8 BOE     500nits 55寸3.5MM
MD-DV550FHMNVD DV550FHM-NVD BOE     500nits 55寸0.88MM
MD-DV650QUMNV0 DV650QUM-NV0 BOE     500nits 65寸3.5MM 4K
MD-DV550FHZNVF DV550FHM-NVF BOE     500nits 55寸3.5MM
MD-DV550FHMNV9 DV550FHM-NV9 BOE     500nits 55寸1.7MM
MD-DV460FHMNV3 DV460FHM-NV3 BOE     500nits 46寸1.7MM
MD-DV460FHMNV2 DV460FHM-NV2 BOE     500nits 46寸0.88MM

MD-LD490DUNZMA1 LD490DUN-ZMA1 LG     500nits 49寸3.5MM
MD-LD550DUNTGB5 LD550DUN-TGB5 LG     500nits 55寸3.5MM
MD-LD550DUNTHB8 LD550DUN-THB8 LG     500nits 55寸1.8MM
MD-LD550DUNTMA2 LD550DUN-TMA2 LG     500nits 55寸 0.88MM
MD-LD550DUNTHA8 LD550DUN-THA8 LG     700nits 55寸1.8MM
MD-LD550DUNTMA3 LD550DUN-TMA3 LG     700nits 55寸 0.88MM

MD-SS550HJ1S02 SS550HJ1-S02 Innolux     500nits 55寸3.5MM
MD-MG5461B011 MG5461B01-1       500nits 55寸3.5MM
MD-P550HVN08.2 P550HVN08.2 AUO     500nits 46寸1.8MM



Application of digital signage big screen wall :

LCD screen wall can be used in TV studio, Exbition and Office, also indoor LCD wall screen can be applied in start hotel, Library, Museum and Cinema.
