32" PCAP Touch Screen Self Service Ordering Machine With POS

32" PCAP Touch Screen Self Service Ordering Machine With POS

Product Details:

Place of Origin: CHINA
Certification: CE, FCC, ROHS, CCC
Model Number: MG-320

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD1000-USD15000 / PC
Packaging Details: Wooden box which need extra cost
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set /month
Get Best Price Contact Now

Detail Information

Keyword: Outdoor Self Service Payment Machine Screen Size: 32"
Touch Screen: 10 Fingers Brightness: 2000nits
Thermal Printer: Yes, Inbuilt POS: Yes, Inbuilt
Waterproof: IP65 Certificate: CE, ROHS, FCC, CCC
System: Windows 10 Application: Outdoor Restaurant
High Light:

PCAP Touch Self Service Ordering Machine


32" Self Service Ordering Machine


PCAP Touch Screen Ordering Kiosk Machine

Product Description

32" Outdoor PC PCAP Touch Screen Self Service Ordering Machine with Printer and POS

Quick details of outdoor self service payment machine :

1. 32 inch 1920*1080 high resolution screen.

2. WIth 10 fingers PCAP touch screen.

3. With Windows or Android system inbuilt.

4. With themal printer inbuilt.

5. With POS inbuilt, customer provide their own waterproof POS.

6. 2000nits high brightness.

7. IP65 waterproof grade.

8. Receipt printer with cover to protect and stop water to go into.

Specification of outdoor self service payment machine:


Resolution 1920*1080
Screen size 32 inch
Display area 698*392 mm
Glass AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface
Brightness 2000cd/m2 brightness, no need brightness sensor
Number of Color 16.7M
Response time 8 (ms) approximately
Contrast 1200:1
View angle 178°/178°(H/V)
Life Time > 50000 (hours)
Power Supply AC 110V~240V,50/60HZ,
Electronic part Electricity leaking protection, lightning protection
Shell Material Galvanized steel+outdoor power painting, anti-corrossion for more than 10years
Heat Dissipation Air-cooling fan inbuilt, with patent fully intelligent temprature control technology
Speaker 10W*2
Power Consumption 80W, Industrial-grade power board, brightness auto-adjustment to lower power consumption
Photo formats JPEG ,BMP ,GIF ,PNG
Audio formats MP3,WAV,WMA
Dimension TBC
Wooden box packing TBC
Displaying direction Vertical
Color Black
POS Prepare POS space, IM20 POS will be from buyer
Thermal printer Nomal thermal printer with cover on top to be waterproof
Touch Type 10-point PCAP touch screen
Normal Working Temperature -40 to 55 Celsius degree
Monitor board HDMI in*1, DVI in*1, VGA in*1
CPU i3, i5, i7
Memory 128G, 256G
Internet connection WIFI, LAN
System Ttrial version of Win10
Interface HDMI out*1,USB *4 ,LAN *1, VGA*1



Description of outdoor self service payment machine :


Indoor payment machine was developed two years ago, now more and more customer would like to have outdoor waterproof self service payment kiosk, here we get the idea to come true.


This is 32inch outdoor IP65 waterproof high brightness touch screen POS station with thermal printer and customer's own POS space, customer prefer to install the POS locally.


It adopt 32inch Full HD 1080p panel, with 10 fingers capactive touch screen and has air cooling fans inside for ventilation. In order to attract more customers to use the self ordering machine, customer want the screen always in the highest brightness, so we didn't add any brightness sensor on top.

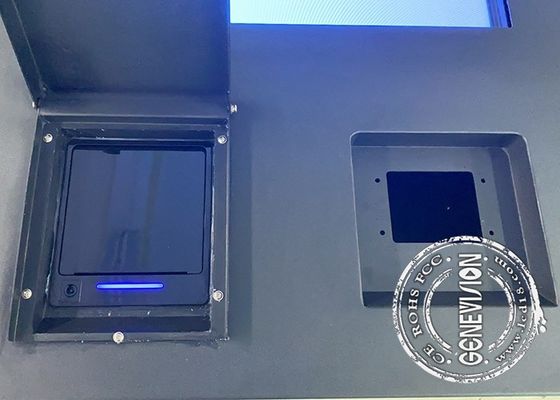

We inbuilt the 80mm thermal printer inside,and in order to refuse water to go inside, we add a cover on top, paper can go through the bottom openning and come out automatically.


Other parts also can be added like QR code scanner and ID/IC card reader.


System depends on what kind of software customer has, we can do Android, Windows and Linux system.


For color, hotsale color is black and silver, also custom color can be made as per request.


Application of outdoor self service payment machine :


This outdoor payment kiosk can be install on the street or park, restaurant, exhibition center entrance etc.
