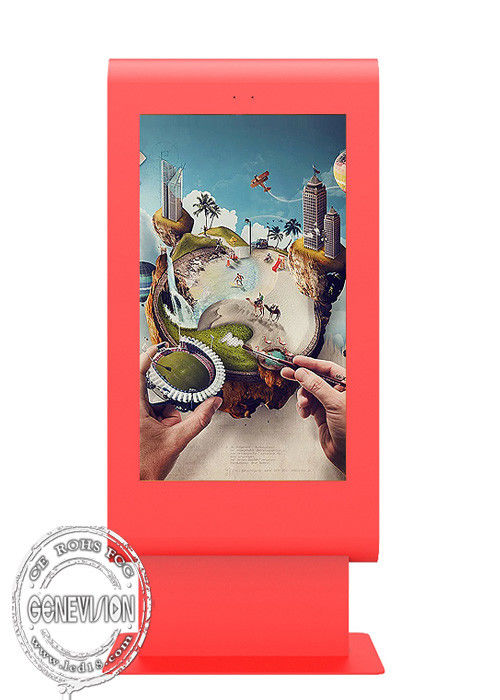

FCC 55in PCAP Foil Touch Screen Kiosk For Outdoor Advertising
Product Details:
| Place of Origin: | China |
| Brand Name: | Genevision |
| Certification: | CCC,CE,ROHS,FCC |
| Model Number: | MAD-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 1200 - USD 2000 / PC |
| Packaging Details: | carton+wooden case |
| Delivery Time: | 7 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000pc per month |
|
Detail Information |
|||
| Key Word: | Outdoor LCD Digital Signage | Screen Size: | 55 Inch Panel |
|---|---|---|---|
| Touch Screen: | 10 Point PCAP Foil Touch Screen | Color: | Red/Black/White |
| Ventilation: | Fan Or Air-conditioner | Certificate: | CE, ROHS, CCC, FCC |
| Installation: | Outdoor, Street, Airport Etc. | Resolution: | 1920*1080 |
| OS: | Android /windows/HDMI Input | Customized: | LOGO Printing |
| High Light: | PCAP Foil Touch Screen Kiosk,FCC 55in Touch Screen Kiosk,55in Outdoor Advertising Billboard |
||
Product Description
55 inch Waterproof High Brightness 3000 nits Outdoor Digital Signage Android Advertising Outdoor Billboard
Quick details of outdoor digital signage advertising billboard :
1. 55 inch super slim outdoor waterproof digital signage.
2. Optional size from 32" to 95"
3. Can be single side or double sides outdoor screen
4. Can be with AC or fan inside for ventilation.
5. Non touch or with touch screen interactive kiosk
6. With Android or Windows or Linux system.
7. Android with remote control software for free.
8. Logo printing on option.
9. Color can be black,silver,white,red,blue or other customzied color
10. Anti rust metal chassis for 10 years.
Specification of outdoor digital signage advertising billboard :
| Resolution | 1920*1080 | |||||
| Screen size | 55 inch | |||||
| Display area | 1209*680 mm | |||||
| Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 2000~3000 cd/m2 brightness, no need brightness sensor | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 2000:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | Air-cooling fan inbuilt, with patent fully intelligent temprature control technology | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 140W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Dimension | TBC | |||||
| Wooden box packing | TBC | |||||
| Displaying direction | Vertical | |||||
| Color | Red, black, silver,white or other pantone color code | |||||
| Speakers | 2*10W large power speakers inbuilt in front | |||||
| Microphone | Noice cancelation microphone can be inbuilt in front | |||||
| Touch Type | 10-point PCAP foil touch screen | |||||
| Normal Working Temperature | -40 to 55 Celsius degree | |||||
| Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
| CPU | i5 | |||||
| RAM | DDR3 8G | |||||
| Memory | 128G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Ttrial version of Win10 | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
| Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
| CPU | A40 or RK3288 | |||||
| RAM | DDR3 1G/2G | |||||
| Memory | 8G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Android 7.1 or above | |||||
| Interface | HDMI out*1, USB*2, Lan*1, TF card*1 | |||||
Description of outdoor digital signage advertising billboard:
1. Appearance fashion: according to customer demand, the exterior of the professional design elegant fashion styles;
2. Outdoor highlight: bright and visible in the sun, the highest brightness of 3,000 nit;
Intelligent light-sensing: automatically adjust the screen brightness varies with brightness, energy saving and display effect and comfortable;
3. Regular backlight: it supports the regulation of regular backlight in 10 groups of time, which is convenient and easy to operate.
4. Intelligent temperature control: intelligent temperature control system, maintain its interior temperature dry environment, prevent fog, condensate phenomenon;
5. Dust and waterproof: the whole machine is of closed design to prevent the external dust and water from entering the inside, reaching the IP55 standard;
6. Sunscreen explosion proof: shell for galvanized steel or stainless steel, the lacquer that bake, waterproof sunscreen, explosion-proof professional surface treatment technologies;
7. Anti-glare and anti-reflection: imported anti-glare glass is adopted on the front of the product, which can effectively increase the internal light projection and reduce the reflection of external light, so as to make the LCD display image color, more bright and bright.
8. High reliability: through reliable hard drive self-examination and repair mechanism, the player supports 10,000 more times of forced blackouts and switch machines without damaging files and reliable broadcasting;
9. Free easy to use: the player does not need special network site personnel for maintenance, and the player can start automatic operation, automatic shutdown, self-management and easy to use.
Application of outdoor digital signage advertising billboard :
The outdoor advertising screen used in Community properties, schools, business units, government agencies, etc. etc.
Tag:outdoor digital signage display,outdoor billboard,outdoor waterproof screen,outdoor high brightness display
