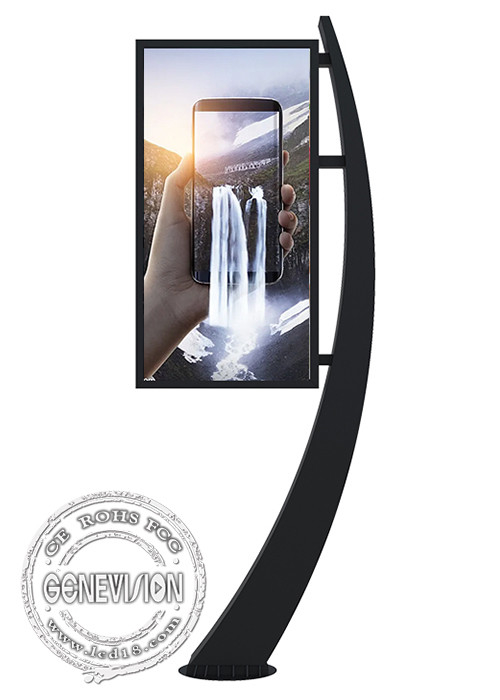

22" 32" IP65 Waterproof Outdoor Digital Signage Kiosk With 4G
Product Details:
| Place of Origin: | China |
| Brand Name: | Genevision |
| Certification: | CCC,CE,ROHS,FCC |
| Model Number: | MAD-320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 1000 - USD 2000 / PC |
| Packaging Details: | carton+wooden case |
| Delivery Time: | 7 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000pc per month |
|
Detail Information |
|||
| Key Word: | IP65 Waterproof Outdoor Lcd Advertising Display | Screen Size: | 22 Inch Or 32 Inch |
|---|---|---|---|
| System: | Android Or Windows 10 Or Linux | Installation: | Street, Park, Airport Etc. |
| Touch Screen: | No Need | Waterproof: | IP65 |
| Internet Connection: | Wifi, RJ45, LAN | Color: | Black Or Pantone Code Color |
| Certificate: | CE, ROHS, CCC, FCC | Metal Housing: | Rustfree |
| High Light: | Waterproof Digital Signage Kiosk,32" Digital Signage Kiosk,22" IP65 Outdoor Digital Signage |
||
Product Description
22" 32" Waterproof IP65 Street Outdoor Digital Signage Kiosk with 4G
Quick details of street outdoor lcd advertising display :
1. 22inch and 32inch outdoor street high brightness LCD digital signage.
2. Can be single side of double sided dual screen.
3. Cloud server control advertisement on each display.
4. Internet connection by RJ45, WIFI, Lan, 4G.
5. Color can be black or silver or any pantone color code.
6. OEM and ODM projects support.
7. Waterproof IP65 metal housing with rustfree painting.
8. Has fan or air conditioner inside.
9. Can be with touch screen.
10. Has go through FCC, ROHS, CCC, CE etc.
Specification of street outdoor lcd advertising display :
| Resolution | 1920*1080 | |||||
| Screen size | 32 inch | |||||
| Display area | 698*392 mm | |||||
| Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 2000cd/m2 brightness, no need brightness sensor | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1200:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | Air-cooling fan inbuilt, with patent fully intelligent temprature control technology | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 80W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Dimension | TBC | |||||
| Wooden box packing | TBC | |||||
| Displaying direction | Vertical | |||||
| Color | Red, black, silver or other pantone color code | |||||
| Speakers | 2*10W large power speakers inbuilt in front | |||||
| Microphone | Noice cancelation microphone can be inbuilt in front | |||||
| Touch Type | 10-point PCAP foil touch screen | |||||
| Normal Working Temperature | -40 to 55 Celsius degree | |||||
| Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
| CPU | i3, i5, i7 | |||||
| RAM | DDR3 4G / 8G | |||||
| Memory | 128G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Ttrial version of Win10 | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
| Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
| CPU | A40 or RK3288 | |||||
| RAM | DDR3 1G/2G | |||||
| Memory | 8G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Android 7.1,support Google Play | |||||
| Interface | HDMI out*1, USB*2, Lan*1, TF card*1 | |||||
Description of street outdoor lcd advertising display :
Smart city construction is a new concept these days, thus outdoor LCD advertising screen is a plus to this concept and an important way to make this concept to come true.
TFT-LCD coming out from indoor to outdoor, waterproof is an important feature for this application, besides, hight brightness is also encential for dustfree outdoor LCD digital signage, it should be in 1500nits or higher so can be readable during day time, this will cause another problem need to solved, heat ventilation, with such high brightness screen working all the time, it need to have air to come in and go to take out heat all the time, air should have a running circle inside the metal chassis, so the inside space can not be too small. The best solution is with an air-conditioner inside to take heating, if somebody want to save cost, with some fans inside and temperature sensor to detect the screen working temperature is a must for outdoor wifi digital signage totem.
Man-machine solution is also on hot demand, so touch screen solution is standby, for screen smaller than 32inch, we apply capacitive touch screen, and will do G+F PCAP touch screen for screen more than 43inch, for one reason to help to save cost, for another reason, can keep the same IP65 waterproof grade while keeping interaction function.
All our products have 1 year warranty, and for outdoor lcd advertising display kiosk, we usually install both monitor motherboard and system motherboard, in case any board has problem, can be replaced and repaired quite easily as the inside circiut is very complicated. Monitor board has HDMI in, DVI in and VGA in, it support any type of media player box to connect to.
Application of street outdoor lcd advertising display :
This outdoor touch screen self service kiosk can be installed in Macdonald's, fast food chain store parking lot, restaurant entrance etc.
