OEM 65" 22" Wayfinding Outdoor Digital Signage With PC AIO Touch Screen
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MAD-650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD2000-USD4000 / PC |
| Packaging Details: | Wooden box which need extra cost |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 set /month |
|
Detail Information |
|||
| Keyword: | Information Checking Outodor Digital Signage | Screen Size: | 65" And 21.5" |
|---|---|---|---|
| Cooling System: | AC Inside | Touch Screen: | 10 Points, G+F Touch Screen |
| Color: | Support Customization | Waterproof: | IP65 |
| Brightness: | 1500 - 3500 Nits | Resolution: | 2K Or 4K |
| Warranty: | 1 Year | Certificate: | CE, FCC, ROHS, CCC |
| High Light: | OEM Wayfinding Outdoor Digital Signage,AIO Touch Screen Outdoor Digital Signage,PC AIO Touch Screen Digital Signage |
||
Product Description

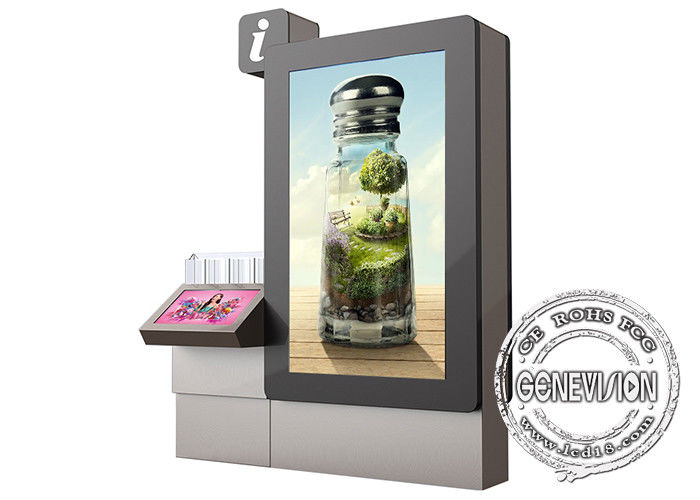

65" and 22" OEM Wayfinding Information Checking Outdoor Digital Signage with PC AIO Touch Screen Kiosk
Quick details of wayfinding outdoor touch screen kiosk :
1. 65inch outdoor digital signage kiosk and 21.5inch touch screen information checking station.
2. High brightness in 1500nits to 3500nits, with brightnress sensor embedded.
3. With AC inbuilt for ventilation.
4. 65inch IP65 waterrpoof LCD kiosk is for displaying advertsements.
5. 22inch PCAP touch screen is for information checking station.
6. Galvanized steel+outdoor power painting, anti-corrossion for more than 10years.
7. Android version remote control software is for free.
8. 22" touch screen with PC all in one system.
Specification of wayfinding outdoor touch screen totem :
| Resolution | 1920*1080 | |||||
| Display area | 1209*680mm and 476*268mm | |||||
| Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 2000cd/m2, Brightness: has brightness sensor, auto-adjustment as per different daylight to lower power consumption. | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1200:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | Air-conditioner built-in, with patent fully intelligent temprature control technology | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 200W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| 21.5inch Touch screen | 10-point PCAP touch screen | |||||
| 65inch screen | No touch | |||||
| Logo | Support customization | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Bare dimension | TBC | |||||
| Wooden box packing size | TBC | |||||
| Normal Working Temperature | -40 to 55 Celsius degree | |||||
| Accessory | Power Cable, Allen key | |||||
| OSD Language | English, Chinese, French, German, Italian, Spanish, Arabic etc. | |||||
| Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
| CPU | i3, i5, i7 | |||||
| RAM | DDR3 4G,8G | |||||
| Memory | 128G, 256G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Ttrial version of Win10 | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
| CPU | A40 Quadcore 1.2GHZ | |||||
| RAM | DDR3 1G | |||||
| Memory | 8G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Android 7.1, support Google Play | |||||
| Interface | HDMI out*1, USB*2, Lan*1, TF card*1 | |||||
Description of wayfinding interactive touch screen kiosk :
This 65inch outdoor digital signage kiosk is for displaying advertisements on screen, with a small touch screen information checking station nearby to provide man-machine interaction features, so people can check any information they want from the outdoor touch screen totem.
IP65 waterrproof grade outdoor LCD advertising display has 2000nits high brightness with brightness sensor inbuilt to help to save power consumption all the time.
We inbuilt a piece of air-conditioner inside for heating ventilation, which can great protect the high brightness outdoor LCD panel to work for 7*24 hours.
Logo and model can be customized as per request as we're LCD digital signage factory for 18 years.
- For restaurants: pop the menu on a board outside, so you can capture the eyes of potential customers walking past. You can change the message as you like, tempting them with the latest specials and discounts.
- For Museums: wayfinding outdoor kiosks are one of the best solutions for museums. You can help people navigate their visit before they even set foot inside your building, connecting them with a smartphone app so they can find their way around. Say goodbye to printing, and hello to an eco-friendly wayfinding solution.
- For train stations (and other transport): touch screen solutions enable real-time trip updates, while along travellers to plan their trip and the best route to take.
- For retail stores: An outdoor large touch screen kiosk can be set up in the middle of a shopping centre, directing people to your store. It’s the perfect way to advertise specials and help customers come and find you.
- For shopping centres: An interactive signage display is the perfect way to help customers navigate their way around a shopping centre complex and find the store they are looking for.
A free-standing touch screen kiosk offers a lot of freedom when it comes to choosing where to spread your marketing message. You can find your ideal customer, when they need you most. For example, outdoor touch screens are commonly used in the tourism industry to help tourists navigate their way around places. A kiosk LCD touch screen can be placed at a popular tourist destination and be used to help navigate tourists to other destinations in the area.
Application of wayfinding interactive touch screen totem :
The smart city kiosk can be installed in the airport, street or park for people to check information like news, way finding map and weather, also the digital menu board kiosk can be put in the bus station, subyway station and train station to display advertising and entertainment video.
