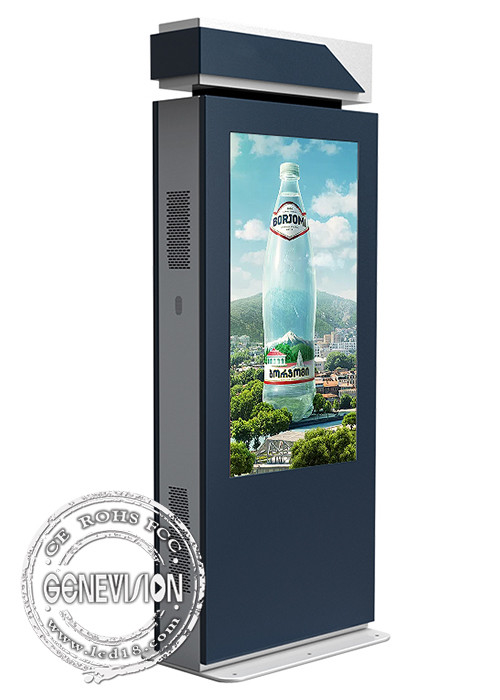

IP65 2500nits Outdoor Advertising Digital Signage Board For Bus Station
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | Genevision |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | MOT-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | 1050usd |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | about 15 working days after received your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 3,000pcs per month |
|
Detail Information |
|||
| Product Name: | Outdoor Digital Signage LCD Kiosk | Function: | Lunch Advertising Video |
|---|---|---|---|
| Glass: | Tempered | Waterproof: | IP65 |
| Material: | SPCC Metal | Color: | 16.7m |
| Application: | Outdoor | Brightness: | 2500nis |
| Wifi: | Yes | Softwear: | Yes |
| Speaker: | Yes | Colour: | Black |
| High Light: | IP65 Digital Signage Board,2500nits Digital Signage Board,IP65 Outdoor Advertising Signage |
||
Product Description
Bus Station Vertical Outdoor Advertising Screen Digital Signage Board for Outdoor Video
Outdoor digital signage kiosk quick detail:
* Galvanized steel plate is adopted, and ultra white, AR and Ag explosion-proof glass are optional
* LCD brightness 2000cd, visible in the sun
* The whole machine is waterproof and dustproof, with protection grade of IP55 and up to IP65
* Built in high-quality fan for heat dissipation, and the ambient temperature is - 30 - + 50 ℃, which can work normally
* All outdoor waterproof, dustproof, anti-theft and explosion-proof;
* Outdoor anti-corrosion for more than 8 years;
* Full modular design, convenient for installation and maintenance;
* Ar anti glare glass, high light transmittance, low reflection, anti ultraviolet
Outdoor digital signage kiosk description
The intelligent bus stop board adopts a new generation of application system organically combined with global satellite positioning and navigation technology (GPS), advanced communication mode, geographic information system technology (GIS-T), advanced video transmission technology and intelligent sensors, and makes full use of the GPS arrival data of bus vehicles in the current bus intelligent dispatching management system to establish a bus arrival prediction system through technical docking.
|
screen specs |
Model number: |
MOT-420 |
|
|
Screen size: |
43" |
|
|
Display ratio: |
16:9 |
|
|
Resolution(Pixel): |
1920*1080 |
|
|
View angle : |
89/89/89/89 |
|
|
Luminance: |
1500 cd/m2,2000cd/m2 , 2500cd/m2 , 2500cd/m2 , 3000cd/m2 3500cd/m2 ,4000cd/m2 ,5000cd/m2 |
|
|
Contrast ratio: |
5000:1 |
|
|
Response time : |
8ms |
|
|
Display area: |
930.24*523.26 mm |
|
|
Touch screen optional |
Capacitive touch screen / Infrared touch screen / Nano touch screen |
|
Parameter |
Operating temperature: |
-40°C--+60°C |
|
|
Protection Rating: |
IP65 |
|
|
Storage Temperature: |
0-50 degrees |
|
|
Humidity :5%-100% |
|
|
Temperature control system(optional) |
Air conditioner |
Voltage Rated:AC110V/60Hz OR other Current Rated:AC 6.5A Power Rated:AC 500W Cooling Capacity:1500W(L35 L35) Heating Capacity:500W(optional) Ambient Temperature:-20℃~55℃ IP Grade:IP65 |
|
|
Radiator |
Working Pressure:2bar-40bar Specification: 2Kw-400Kw |
|
Power supply |
AC Input: |
110-240V, 50/60Hz |
|
Operating system(optional) |
Standalone version |
RAM:8G SD play |
|
|
Android version |
Quad core cortex A8, All winner A31 ,1.2GHz 1G DDR3, android 4.4.2 or above. |
|
|
Windows pc |
Quad-core pc / i3 / i5 / i7 intel core |
|
Appearance |
Color option: |
Silver, white, black or optional |
|
|
Enclosure material |
Zinc coated steel+front tempered glass |
|
|
Installation: |
Wall mounting/roof hanging/floor standing |
|
|
I/O interface: |
1*USB,1* SD/MMC/MS card slot , |
Advantage:
Taiwan Mingwei industrial power supply is stable and reliable;
Microcomputer timer, automatic switch machine;
Class III lightning arrester, surge protection;
Electric leakage protection switch
