75" IP65 Grade Outdoor Digital Signage With Win 10 System
Product Details:
| Place of Origin: | China |
| Brand Name: | Genevision |
| Certification: | CCC,CE,ROHS,FCC |
| Model Number: | MAD-750 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 2000 - USD 4000 / PC |
| Packaging Details: | carton+wooden case |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000pc per month |
|
Detail Information |
|||
| Key Word: | All Weather Readable Outdoor Kiosk Digital Signage | Screen Size: | 75 Inch |
|---|---|---|---|
| Touh Screen: | NO | System: | Windows 10 Pro |
| High Brightness: | 2500 Cd/m2 | Color: | OEM Or ODM |
| Cooling System: | Smart Fan Or AC Inbuilt | Certificate: | CE, ROHS, CCC, FCC, RCM |
| Camera: | Optional | Warranty: | One Year |
| High Light: | IP65 Grade Outdoor Digital Signage,Win 10 Outdoor Digital Signage,75" Kiosk Digital Signage |
||
Product Description

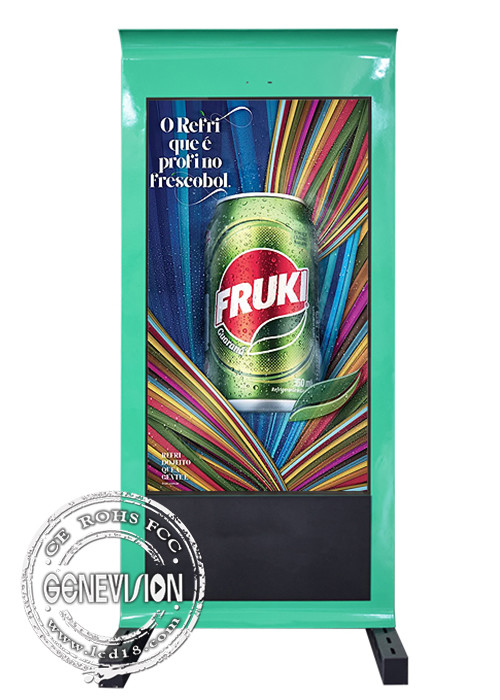

75 Inch IP65 High Brightness All Weather Outdoor LCD Digital Signage with Win 10 System
Quick details of outdoor LCD display kiosk :
1. 75inch customized outdoor waterproof IP65 LCD kiosk digital signage totem.
2. 1920*1080 or 4K resolution.
3. Can be without or with 10 points touch screen.
4. With Windows system, Android system optional.
5. With air-conditioner inside for cooling system.
6. OEM or ODM model design.
7. IP65 waterproof grade.
8. 2500nits high brightness with brightness sensor inbuilt.
9. Camera can be inbuilt as well.
10. Model design or color can be customized.
Specification of outdoor LCD display kiosk :
| Resolution | 1920*1080 | |||||
| Display area | 1649*927 mm | |||||
| Glass | AR minus reflection glass 4 mm,light transmittance 97%,reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 2500cd/m2, has brightness sensor, auto-adjustment as per different daylight to lower power consumption | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1200:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | Industrial grade, AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | AC built-in, with patent fully intelligent temprature control technology | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 300W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| Touch screen | No | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Bare dimension | TBC | |||||
| Wooden box packing size | TBC | |||||
| IP grade | IP65 | |||||
| Normal Working Temperature | -40 to 55 Celsius degree | |||||
| Accessory | Power Cable, Allen key | |||||
| OSD Language | English, Chinese, French, German, Italian, Spanish, Arabic etc. | |||||
| Monitor board | HDMI in*1, VGA in*1, DVI in*1 | |||||
| CPU | I3 | |||||
| Memory | DDR3 4G | |||||
| SSD | 128G | |||||
| Internet connection | Lan, WIFI | |||||
| System | Windows 10 pro | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Description of outdoor LCD display kiosk :
Many shopping mall, retail shops and bus stop applied outdoor LCD advertising player to display video and picture, also bus timetable can be showed on screen, this is very important part of smart city.
All our outdoor wifi digital signage can be with touch screen, has Galvanized steel metal chassis with outdoor power painting, also can be anti-corrossion for more than 10years, has electricity leaking protection and lightning protection design and features. Logo printing can be supported, also color can be customized as per customer's request.
For system, we have USB updating, Android or Windows with remote control software to send advertising to the screen by IP server or cloud sever which need to have the same local area network with screen. USB standalone type is very simple to use, put video and picture into USB, insert it to the outdoor kiosk and it will automatically copy and loop displaying advertisements.
Also we can do touch screen for the outdoor IP65 waterproof digital signage kiosk, for smaller size like 21.5inch to 32inch, capacitive touch screen will be first option, for bigger size, G+F PCAP touch screen is a good solution, price is not high and with the same touch speed as PCAP touch screen.
Application of outdoor LCD display kiosk :
This outdoor touch screen self service kiosk can be installed in Macdonald's, fast food chain store parking lot, restaurant entrance etc.
