Lcd Self Service Kiosk 15.6 Inch Touch Screen With Printer And Scanner

Lcd Self Service Kiosk 15.6 Inch Touch Screen With Printer And Scanner

Product Details:

Place of Origin: China
Brand Name: Genevision
Model Number: MG-156JTA

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: 615
Packaging Details: Wooden case reforced package
Delivery Time: 2-3days for sample ,10 days for big order
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Month
Get Best Price Contact Now

Detail Information

Size: 15.6 Inch Item: Self Service Kiosk
Panel Type: LCD Panel Aspect Ratio: 16:9
Response Time: 6s Touch Technology: 10-point Projected Capacitive Touch
Customized Function: Camera/Receip Printers/ Card Reader/ QR Or Commodity Barcode Scanners Printing Speed: ≥32 Lines/Second
The Print Head: 80MM Sanner: QR Code,NFC Scanner
NFC/RFID Reader: 1、Support ISO/IEC 14443-A&B (MIFARE), JIS X 6319-4 (Felica), NFC Protocols - Tag Read/write (ISO/IEC-18092)
High Light:

QR Code Self Service Kiosk

,

LCD Panel Self Service Kiosk

,

Capacitive Touch Self Ordering Kiosk

Product Description


15.6 Inch Touch Screen Lcd Self Service Kiosk With Printer And Scanner
Introduction to the functions of the ordering terminal:

1. Self-service ordering and ordering function, customers can place orders and pay online by themselves, without manual cashiers, saving labor costs;

2. Online payment support: WeChat payment, Alipay payment, member payment, cash payment;

3. Self-service queuing function, after the customer places an order, the system prints the queuing ticket, and the customer picks up the meal in order with the ticket number;

4. When the customer at the front desk places an order, the back kitchen automatically prints the meal receipt, and the meal is arranged in time according to the ticket, saving the customer's waiting time;

5. Cardless membership management, customers can register as members only with their mobile phone numbers, the operation is simple, and the merchants customize the membership preferential policies to increase customer stickiness;

6. Merchants can check the operation status of the store in real time, and estimate the purchase of ingredients according to the consumption of the dishes. The performance of the store is clear at a glance, and it is easy to manage;

Specification:

32 Inch Self-Service Ordering Payment Kiosk

Model
MG156
Panel
LCD
15.6"
Light
LED back light
Resolving
1920×1080 (pixels)
Brightness
360cd/m²(typ.)
Contrast
2500:1(typ.)
Reaction
5ms(typ.)
Pixel
0.3114 mm×0.3114mm
Frame
60Hz
Visual
178°(H)/178° (V)
Service
50,000 hrs(min.)
Visible
698.4mm×392.85mm
Color
16.7M(8bit)
Android configuration (standard)
CPU
Framework
RK3288 Cotex-A17
Operating frequency
1.8GHz
GPU
Four core
Internal
Standard 2g (4G optional)
Internal
Standard 8g (16g / 32g / 64g optional)
System
Android 5.1 or later
Motherboard
MIC-IN*1,RJ45*1,HDMI*1,SD*1,SIM*1,USB*2
PC configuration (optional)
Processor
Intel J1900 quad core / I3 / i5 / i7
Hard disk
64g SSD / 128G SSD / 1t Mechanical hard disk
Memory
4GB/8GB
WIFI
802.11 b/g/n
Network card type
1 Gigabit network card (rtl8111e)
Motherboard interface
HDMI*1,VGA*1,RJ45*1,USB*4,LINE-OUT*1,MIC-IN*1
Peripheral
Printer
80mm panel thermal printer
A Scanner
QR code automatic scanning mp150
NFC card swiping
Optional
Camera (optional)
Wechat 3D structured light camera / Monocular camera / Binocular camera
POS (optional)
External POS machine
Power Supply
Voltage
100V~240V,50-60Hz
Maximum power
80W
Standby power
≤1W
Environment
Working temperature
0℃~50℃
Storage temperature
-20℃~60℃
Storage humidity
5%~90%RH
Working humidity
10%~90%RH
Function
Internal horn
5W × two
Power supply (AC) input
× one
Power switch
× one

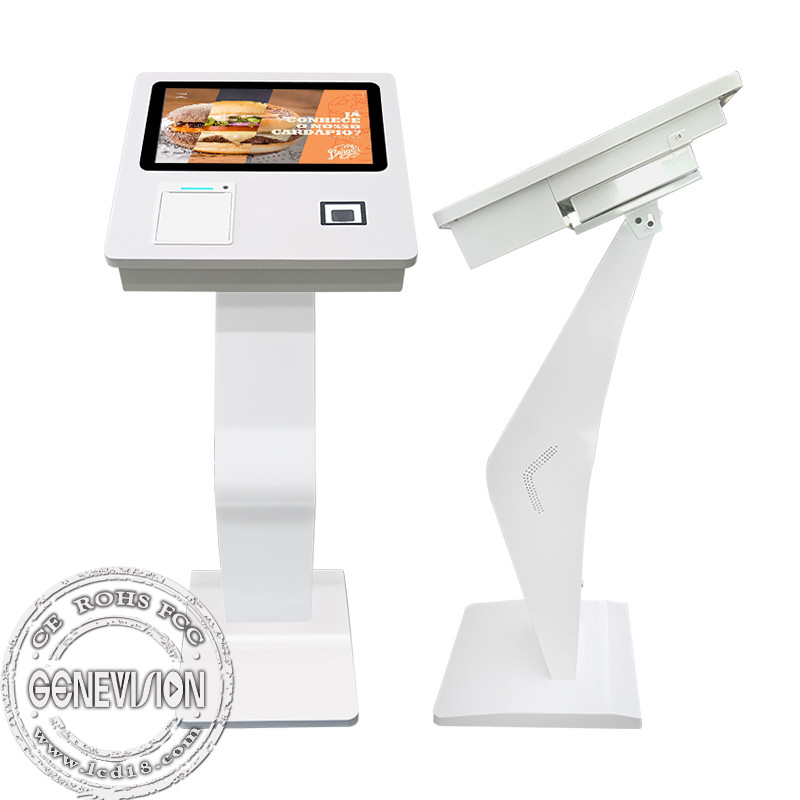

Lcd Self Service Kiosk 15.6 Inch Touch Screen With Printer And Scanner 0
