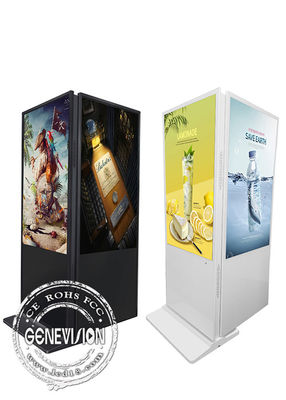

Double Sided Wifi Digital Signage Kiosk 55 Inch White Color Linux System
Product Details:
| Place of Origin: | China |
| Brand Name: | Genevision |
| Certification: | CCC,CE,ROHS,FCC |
| Model Number: | MAD-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | 900 - 1200 USD / PC |
| Packaging Details: | Carton and plywood box |
| Delivery Time: | 10 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Product Name: | 55 Inch Double Sided Touch Screen Kiosk | System: | Linux |
|---|---|---|---|
| Touch Screen: | No, But On Option | Resolution: | 1920*1080 For Both Sides |
| Color: | Full White Or Full Black | Displaying: | Both Screens Can Display The Same Or Differently |
| Installation: | Floorstanding | Certificate: | FCC, ROHS, CCC, CE |
| High Light: | CE Digital Signage Kiosk,1920x1080 Digital Signage Kiosk,Wifi Digital Signage Double Sided |
||
Product Description
55 Inch White Color Linux System Double Sided Wifi Digital Signge Kiosk
Quick details of double sided touch screen kiosk :
1. 65inch double sided super thin metal housing model.
2. 10 points IR touch screen.
3. Resolution can be 1920*1080 or 3840*2160.
4. Also we can do 75inch or 85inch.
5. System can be Android or Windows or Linux.
6. Color can be full black or white or black with silver aluminum frame.
7. Wheels can be added on the base.
Specification of double sided touch screen kiosk :
| Resolution | 1920*1080 or 3840*2160 | |||||
| Panel | BOE original panel, A level | |||||
| Display area | 1428*803mm | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1200:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ | |||||
| Power Consumption | 180W | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Aluminum+Metal | |||||
| Camera | Face recognition camera in 8.0 MPX | |||||
| Touch screen | Multi touch points, 10-point PCAP foil touch | |||||
| Internet connection | Lan, Wifi | |||||
| Color | Black with silver aluminum frame | |||||
| Installation | Floor standing kiosk | |||||
| Remote control software | On option | |||||
| Google play | Support | |||||
| Normal Working Temperature | 0°——50° | |||||
| Normal Storage Temperature | -20°——60° | |||||
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz | |||||
| Network connection | LAN, WIFI | |||||
| RAM | DDR3 2G | |||||
| Memory | 8G | |||||
| The operating system | Android 7.1, support Google play | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
| CPU | i3, i5, i7 | |||||
| Network connection | LAN, WIFI | |||||
| Memory | DDR3 4G or 8G | |||||
| SSD | 128G or 256G | |||||
| The operating system | Beta Win10 | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Description of double sided touch screen kiosk :
Big screen is more and more popular in LCD digital signage industry all over the world, more and more customer want 55inch, 65inch and above size. The 65inch floorstanding touch screen totem has two side screens, both are in phone style design, it doesn't look thick as with the silver aluminum profile, we're trying our best to make it as thin as possible.
Two screens can share the same PCB motherboard, also can be with different systems, each screen has its own electronic spare part group, so the double sided kiosk can display the same or different advertising, both screens can sync with each other. Either screen can be with Android or WIndows system, and our factory has remote control software on option, also they support google play service, so customer can run their own APK on screens.
It's easy for us to make it with touch screen by adding 10-point multi touch capacitive film on the tempered glass, just with two piece of touch foil, we can change the non-touch kiosk to be smart advertising totem with man-machine interaction function.
For some media company, they want add face recognition camera to have a data of how many audience view their advertising and their gender to design what kind of advertising display at what time. We have both 5.0mpx and 8.0mpx camera on option.
Application of double sided touch screen kiosk :
This man-machine interactive smart touch screen kiosk can be widely used in shopping mall, cinema and resturant as it can be used as a information checking station, also can be put in exhibition center, office receoption desk, hotel and airport as well.
