Highlight:
700nits Digital Signage
, 1500nits Digital Signage
, 23.6'' Lcd Digital Signage
23.6 Inch 1280*1280 High Brightness Custom Round Lcd Screen Advertising Media Display Circular Digital Signage
Quick details of 23.6inch round digital signage
1. custom size round 23.6" lcd panel
2. resolution 1280*1280
3. high brightness:1500ntis,700nits
4. Usage:semi-outdoor,indoor
5. integrated with Android or PC media player,support remote control the content via internet
6. Aluminum profile with tempered glass
7. can be no touch or with touch screen
8. Android 11 OS or Win 10 OS
9. Support customize color,logo,size,etc
10. Application:Jewelry stores,clothing stores,Mall,Restaurant
Description and application scenarios of 23.6 Inch Circular Touch Screen
23.6 inch round lcd advertising display is new shape as digital signage solution.It is very suitable to display beauty product for ladies as well as display for all kinds of industry which need to broadcast advertisement.
Our 23.6inch round advertising screen support Android 11 OS or Win 10 OS.Both system include content management software for uploading the content.Can add touch screen as well.
23.6 inch circular advertising screen display has 1500nits high brightness,suitable for install semi outdoor,indoor for display advertisement.Can widely use in many kind of place,such as Jewelry stores,clothing stores,Mall,Restaurant,cosmetic,etc.
23.6 Inch Circular Touch Screen is industrial grade support play 24 hours 7 days, Video + picture + text + Sound.
Technical Parameter of 23.6 Inch round advertising screen display
|
Model
|
GENEVISION 23.6" Round LCD Panel
|
|
LCD Panel
|
Size
|
23.6 "
|
|
|
Ratio
|
1:1
|
|
|
Resolution
|
1280×1280
|
|
|
Refresh Rate
|
60Hz
|
|
|
Display range
|
600.384mm(H)×600.384mm(V)
|
|
|
Pixel distance
|
0.708mm(H)×0.708mm(W)
|
|
|
Color Depth
|
16.7M 8Bit
|
|
|
Backlight type
|
lcd
|
|
|
Luminance
|
700~1500cd/m2
|
|
|
Contrast
|
4000:1
|
|
|
Response time
|
8ms
|
|
|
Viewing angle
|
178°/178°
|
|
Signal interface
|
USB Input
|
2 channel (Type-A USB 2.0*2 channel)
|
|
|
Audio output
|
1 * headphones
|
|
|
Expanded storage
|
1 channel (TF card standard socket )
|
|
|
Network input
|
1 * RJ45 wired Ethernet port, support wireless 2.4GWi-Fi
|
|
|
Sim card slot
|
1 SIM card slot (support 3G/4G module optional)
|
|
|
Video output
|
1 * HDMI
|
|
Power input
|
Voltage range
|
AC220V,50/60Hz
|
|
|
Power consumption
|
≥55W
|
|
Working
Environment
|
Temperature
|
0°C~50°C
|
|
|
Relative humidity
|
10%~90%
|
|
Storage environment
|
Temperature
|
-10°C~60°C
|
|
|
Relative humidity
|
10%~90%
|
|
Dimensions
|
Colors
|
Black
|
|
|
Overall Dimensions
|
L663mm×W663mm×T45.7mm
|
|
Hanging specifications
|
Bracket Size
|
L500mm×W470mm×T1.5mm
|
|
|
Hanging hole size
|
(H)200mm×(V)200mm
|
|
Installation method
|
Wall-mounted
|
|
Shell material
|
Metal plate
|
|
Weight
|
14 kg
|

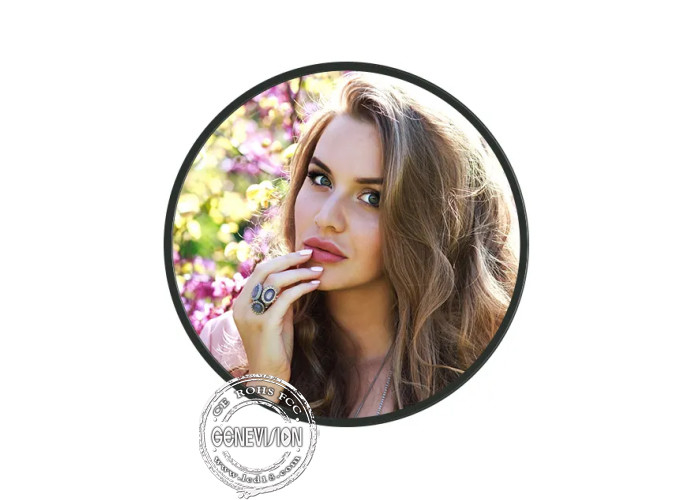

Pictures of 23.6 inch round advertising display
