Highlight:
4K UHD Touch Screen Whiteboard
, 20 Points Touch Screen Whiteboard
, Touch Screen Whiteboard 86 Inch

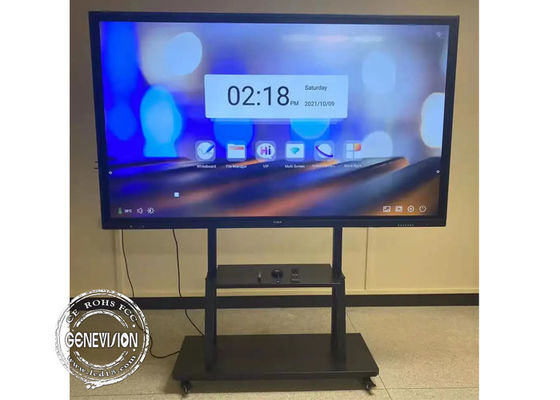

86 inch 98 inch 4K UHD 20 Points Touch Screen Whiteboard AI Camera Interactive Digital Smart Board
Digital smart board quick details:
1. Big screen 86" (98" 75" 65" 55" optional)
2. Resolution:UHD 4K
3. Power Supply Voltage 100-240V,50-60 Hz
4. Android: Built in Dual Core A73 and Dual core A53 (Quad Core) 11.0 (8+128G)
5. OPS Computer: Intel Corei5, 8Gb RAM, 256Gb SSD
6. Built in speakers: 2 x 12W with independent bass Stereo
7. Touch Points: 20 touch points
8. Camera: Built in 4K AI Camera with voice tracking and auto framing, precisely positioning and automatically switching focus between the different speakers in video conference.
9. Microphones: Built in Seamlessly integrating 8 microphone arrays embrace Acoustic Echo Cancellation (AEC) technology and support the ideal voice pickup range of up to 6 meters.
10. Network: Dual-Band / WiFi 6E / Up to 1000M LAN
| Technical Parameter for 65" touch sceen whiteboard |
Panel Size |
86inch smart board / whiteboard |
| |
Aspect Ratio |
16:9 |
| |
Active Area |
1428MM(W)*803MM(H) |
| |
Max. Resolution |
3840x2160 |
| |
Dot Pitch |
0.372mm(H) x 0.372mm(W) |
| |
Number of Color |
16.7M |
| |
Brightness |
350cd/m2 |
| |
Contrast Ratio |
1200:1 |
| |
Responsive Time |
8ms |
| |
Panel Life |
above 50000 hours |
| Support Ad files |
Video formats |
MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1),AVI |
| |
Audio formats |
MP3 |
| |
Photo formats |
JPG, PNG,BMP |
| OSD Language |
English, Chinese, French, German, Italian, Spanish,Arabic |
| Audio output |
stereo L/R, 15W*2, 8Ω |
| Power supply |
AC 110V - 240V, 50/60HZ |
| Storage Temperature |
-7 to 65 Celsius degree |
| Normal Working Temperature |
-5 to 65 Celsius degree |
| PC configuration |
Intel I3/I5/I7 CPU,4GB DDR4 RAM,128GB SSD |
| Android configuration |
4GB RAM,32GB ROM,Android 11 OS |
1) Aluminum alloy frame, surface sandblasting and anodic oxidation treatment, iron shell back cover,
active heat dissipation;
2) 4mm physical tempered anti-riot glass; strengthen the visual effect and enhance the touch experience;
3) PC supports 20-point high-speed touch writing experience,, better smoothness, faster writing speed;
4) Using the OPS slot of the international general standard, the integrated plug-in design is convenient
for upgrading and maintenance, and there is no visible external connection line of the computer
module, and the body is beautiful;
5) Front expansion port: USB*3, HDMI*1, TOUCH *1, type-c*1;
6) 15Wx2 in front of the speaker to prevent the sound effect from deteriorating due to the built-in environment;
7) One button of the front button to start "OPS can be set to power start", long press to open and close
the screen and host at the same time, easy to operate;
8) Android 11 system comes with electronic whiteboard, annotation function, annotation function can
be called out each channel, very practical and fast;
9) When the sliding whiteboard is closed on the interactive board,the screen will be automatically dimmed
after a certain period of time
Application of digital smart board whiteboard:
General basic education, including: ordinary classroom, multifunctional classroom, video classroom,
wisdom classroom, etc.
Higher education, including: normal wisdom classroom, inquiry wisdom classroom, multifunctional classroom, etc.
Vocational education, including: vocational higher education, vocational schools and other smart classrooms.
Training institutions, including: academic training, vocational training, promotion training, etc.
Online education, including: online broadcast, distance education and so on.
Other markets, such as: conference hall/room, exhibition room, interactive function renovation room, etc.
Tag:teaching touch screen whiteboard, conference whitboard,metting room touch screen projection
