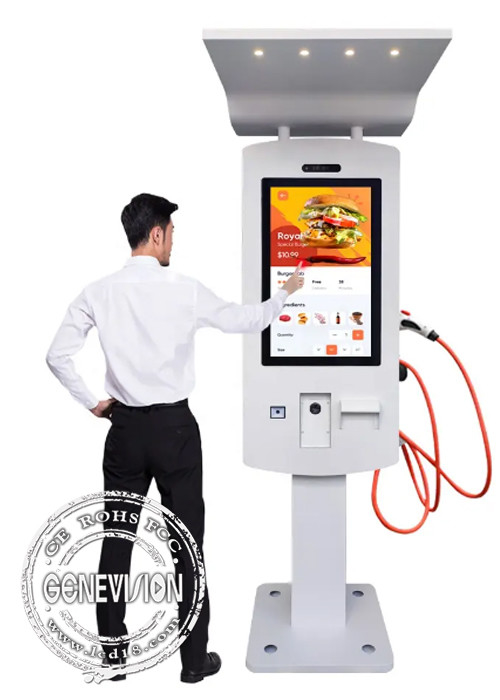

32" Waterproof Self Service Kiosk Ev Charger Drive Through With Led Lamps
Product Details:
| Place of Origin: | China |
| Brand Name: | Genevision |
| Certification: | CCC,CE,ROHS,FCC |
| Model Number: | MAD-320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD 1000 - USD3000 / PC |
| Packaging Details: | Plywood box |
| Delivery Time: | 20 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000pcs per month |
|
Detail Information |
|||
| Key Word: | Drive Through Restaurant Outdoor Touch Screen Payment Kiosk | Screen Size: | 32" |
|---|---|---|---|
| Waterproof: | IP65 | LED Lamps: | On Both Sides |
| Touch Screen: | 10 Point G+G Touch Screen | Brightness: | 1500cd/m2 With Brightness Sensor |
| Binocular Camera: | Can Be Inbuilt | Printer: | Inbuilt |
| POS: | Can Be Inbuilt | QR Code Scanner: | Inbuilt |
| System: | Android Or Windows | EV Charger: | OCPP 2.0 Standard 44KW |
| High Light: | 32" waterproof self service kiosk,ev charger waterproof self service kiosk |
||
Product Description
32" Drive Through Restaurant Outdoor Waterproof Self Service Kiosk with EV Charger/QR Code Scanner/NFC Card Reader/Binocular Camera/LED Lamps
Quick details of drive through restaurant outdoor touch screen payment machine :
1. 32inch 1080P original panel.
2. 1500nits high brightness with brightness sensor.
3. 10 points PCAP touch screen.
4. With AC or fans inside for heating dissapation.
5. With binocular camera inbuilt.
6. With thermal printer inbuilt.
7. With QR code scanner inbuilt.
8. With OCPP 2.0 44KW EV charger inbuilt.
9. With LED lamps on both sides.
10. With baffle and lamps on ceiling which can protect machine.
Specification of drive through restaurant outdoor touch screen payment machine :
| Resolution | 1920*1080 | |||||
| Screen size | 32 inch | |||||
| Display area | 698*392 mm | |||||
| Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 2000cd/m2 brightness, no need brightness sensor | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1200:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | Air-cooling fan inbuilt, with patent fully intelligent temprature control technology | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 80W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Dimension | TBC | |||||
| Wooden box packing | TBC | |||||
| Displaying direction | Vertical | |||||
| Color | Black | |||||
| POS | Prepare POS space, IM20 POS will be from buyer | |||||
| Thermal printer | Nomal thermal printer maybe with cover on top to be waterproof | |||||
| Touch Type | 10-point PCAP touch screen | |||||
| LED lamps | On both sides | |||||
| Baffle and lamps | On celing, can protect machine even better | |||||
| EV charger | Can be with EV charger inbuilt to become a electrical vehicle charging station | |||||
| Binocular camera | Can be inbuilt | |||||
| Normal Working Temperature | -40 to 55 Celsius degree | |||||
| Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
| CPU | i5 | |||||
| RAM | DDR3 8G | |||||
| Memory | 128G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Ttrial version of Win10 | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Description of drive through restaurant outdoor touch screen payment machine :
Based on indoor touch screen self service kiosk, we developed outdoor self payment machine, can be hang on the wall or with a floor stand. Since it's for outdoor use, brightness should be as high as 1500nits or even 1500nits, in order to save power consumption, we inbuilt a brightness sensor which can adjust brightness as per day light automatically. Another main feature is the outdoor self order kiosk need to be with IP65 waterproof grade, so it has anti-rust metal shell which can work for more than 10 years, also with such high brightness panel, it must have a very good ventilation design, air can come in from one side and go out from another side thus to take out heat generated by the working panel.
For 32inch and smaller size outdoor touch screen kiosk, we do 10 fingers G+G touch, with has longer lifespan in harsh environment use.
System can be Android or Windows as pre request, also as a professional factory, we have many different CPU spec on your choice, but different spec has different price.
The outdoor touch screen POS terminal also produced with waterproof POS, thermal printer and QR code scanner, for printer, there is no waterproof grade,we trying to make a cover to hide it, for scanner and NFC card reader, no worry, it has a piece of glass on surface to stop water go inside.
Application of drive through restaurant outdoor touch screen payment machine :
This outdoor touch screen self service kiosk can be installed in Macdonald's, fast food chain store parking lot, restaurant entrance etc.
