Product Details
Place of Origin: China
Brand Name: Genevision
Certification: CCC,CE,ROHS,FCC
Model Number: MAD-320
Payment & Shipping Terms
Minimum Order Quantity: 1 PC
Price: USD 1000 - USD2000 / PC
Packaging Details: carton+wooden case
Delivery Time: 15-20 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000pcs per month
Keyword: |
IP65 Waterproof Touch Screen Payment Kiosk |
Screen Size: |
32" |
Waterproof: |
IP65 |
Ventilation: |
With Fans Inside, Also Can Be With AC |
Touch Screen: |
10 Point PCAP Touch Screen |
Brightness: |
2000cd/m2 With Light Sensor |
Thermal Printer: |
Can Be Inbuilt |
QR Code Scanner: |
Can Be Inbuilt, Can Be With NFC Card Reader |
POS: |
Can Be Inbuilt |
System: |
Android Or Windows 10 |
Keyword: |
IP65 Waterproof Touch Screen Payment Kiosk |
Screen Size: |
32" |
Waterproof: |
IP65 |
Ventilation: |
With Fans Inside, Also Can Be With AC |
Touch Screen: |
10 Point PCAP Touch Screen |
Brightness: |
2000cd/m2 With Light Sensor |
Thermal Printer: |
Can Be Inbuilt |
QR Code Scanner: |
Can Be Inbuilt, Can Be With NFC Card Reader |
POS: |
Can Be Inbuilt |
System: |
Android Or Windows 10 |

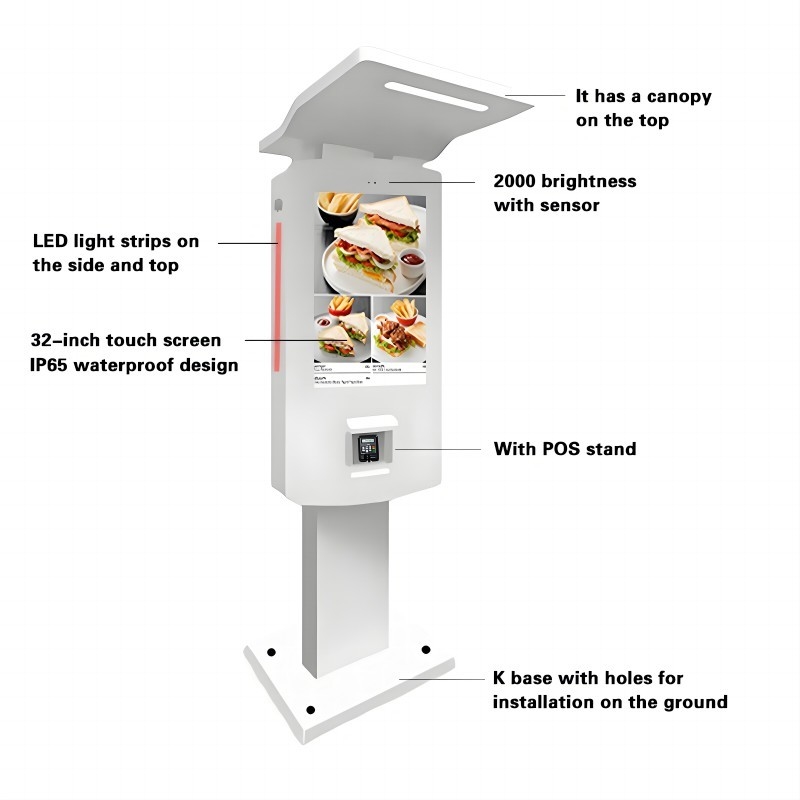

32Inch Outdoor Android PC PCAP Touch Screen Self Service Payment Kiosk with Canopy and LED Strip
Quick details of outdoor waterproof touch screen self pay kiosk:
1. Outdoor waterproof IP65-rated touchscreen self-ordering and payment kiosk.
2. Popular sizes available: 24-inch and 32-inch.
3. Supports both Android and Windows all-in-one systems.
4. Equipped with an internal fan for ventilation, with optional built-in air-conditioning.
5. Optional built-in receipt printer.
6. Optional embedded POS system.
7. Optional built-in QR code scanner with NFC card reader.
8. Optional overhead canopy for added protection.
9. Features a 2000-nits high-brightness display panel for excellent visibility outdoors.
Specification of outdoor waterproof touch screen self pay kiosk:
Resolution | 1920*1080 | |||||
Screen size | 32 inch | |||||
Display area | 698*392 mm | |||||
Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
Brightness | 2000cd/m2 brightness, no need brightness sensor | |||||
Number of Color | 16.7M | |||||
Response time | 8 (ms) approximately | |||||
Contrast | 1200:1 | |||||
View angle | 178°/178°(H/V) | |||||
Life Time | > 50000 (hours) | |||||
Power Supply | AC 110V~240V,50/60HZ, | |||||
Electronic part | Electricity leaking protection, lightning protection | |||||
Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
Heat Dissipation | Air-cooling fan inbuilt, with patent fully intelligent temprature control technology | |||||
Speaker | 10W*2 | |||||
Power Consumption | 80W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
Audio formats | MP3,WAV,WMA | |||||
Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
Dimension | TBC | |||||
Wooden box packing | TBC | |||||
Displaying direction | Vertical | |||||
Color | Black | |||||
POS | Prepare POS space, IM20 POS will be from buyer | |||||
Thermal printer | Nomal thermal printer maybe with cover on top to be waterproof | |||||
Touch Type | 10-point PCAP touch screen | |||||
Normal Working Temperature | -40 to 55 Celsius degree |
Monitor board | HDMI in*1, DVI in*1, VGA in*1 | |||||
CPU | i5 | |||||
RAM | DDR3 8G | |||||
Memory | 128G | |||||
Internet connection | WIFI, LAN | |||||
System | Ttrial version of Win10 | |||||
Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 |
Application of outdoor waterproof touch screen self pay kiosk:
Outdoor waterproof touchscreen payment machines have a wide range of applications across various industries, providing convenience, efficiency, and 24/7 accessibility in all weather conditions. Here's a comprehensive list of their uses:
1. Transportation Hubs:
Ticketing: Purchasing tickets for buses, trains, subways, ferries, and even ski lifts.
Parking: Paying for parking in lots, garages, and on-street (parking meters).
EV Charging Stations: Facilitating payments for electric vehicle charging.
Toll Booths: Automated payment for tolls.
Airline/Cruise Line Check-in: Self-service check-in and bag tagging.
Ride-sharing/Taxi Kiosks: Ordering and paying for rides.
2. Retail and Food Service:
Outdoor Self-Ordering & Payment: Fast food drive-thrus, concession stands at stadiums/amusement parks, outdoor cafes.
Vending Machines: Automated sales of drinks, snacks, and other goods.
Car Washes: Payment for car wash services.
Gas Stations: Pay-at-the-pump solutions.
Merchandise Sales: Selling event merchandise, souvenirs, etc., in outdoor venues.
Pop-up Shops/Events: Temporary retail setups requiring payment processing.
3. Public Services and Utilities:
Bill Payments: Paying municipal utility bills (water, electricity, gas), court fines, taxes.
Permit Purchasing: Buying permits for parks, recreation areas, or specific activities.
Information Kiosks: Providing interactive maps, event schedules, public announcements, and tourist information with payment options for related services.
Public Transportation Information: Real-time schedules, route planning, and ticket purchasing.
Smart City Applications: Integrated kiosks for various urban services.
4. Entertainment and Recreation:
Amusement Parks/Theme Parks: Ticket purchasing, fast pass sales, food ordering, and game payments.
Stadiums/Arenas: Ticket sales, concession orders, merchandise purchases.
Zoos/Museums (Outdoor Areas): Admission, special exhibit tickets, guide rentals.
Golf Courses: Green fee payments, cart rentals.
Bike Rental Stations: Payment for bike usage.
5. Other Specialized Applications:
Self-Storage Facilities: Renting units, making payments.
Laundromats: Payment for washing and drying machines.
Emissions Testing: Automated payment for vehicle emissions checks.
Digital Signage with Payment: Interactive advertising displays that allow direct purchases.
Cemeteries/Memorials: Payments for services, digital tribute displays.
Key Features Enabling these Applications:
Weather Resistance (IP-rated enclosures): Protection against rain, snow, dust, and extreme temperatures.
Sunlight-Readable Displays: High brightness and anti-glare coatings for clear visibility in direct sunlight.
Vandalism and Tamper Resistance: Robust construction with impact-resistant materials and secure enclosures.
Integrated Payment Methods: Support for credit/debit cards, contactless payments (NFC), mobile wallets, QR codes, and sometimes cash/coin acceptance.
Remote Management and Monitoring: Ability to manage devices, deploy updates, and troubleshoot issues remotely.
Customization: Options for branding, additional components (printers, scanners, cameras), and software integration.
These machines offer businesses and organizations a way to extend their services outdoors, provide 24/7 accessibility, reduce wait times, and improve overall customer experience.
