13.3inch Retail Gender Age Recognition AI Camera Android Touch Screen Tablet Commercial Display with Passenger Flow Statistics Remote Control Software

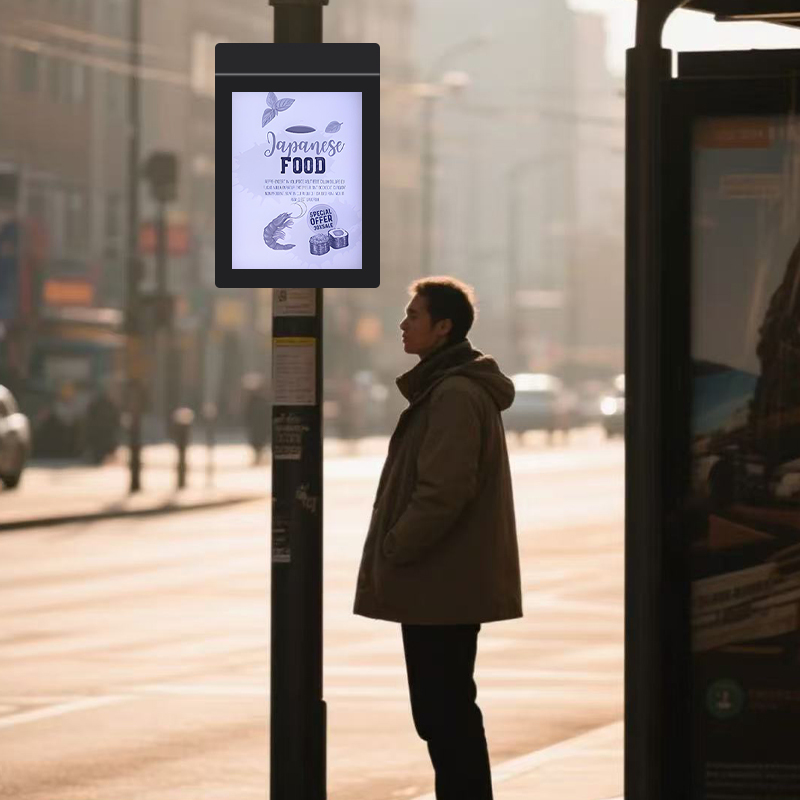

Quick details outdoor waterproof bus station E ink display :
1. No backlight; uses reflected ambient light to display content, providing a paper-like reading experience that's easy on the eyes.
2. Fully readable even under direct sunlight, making it ideal for outdoor or brightly lit environments.
3. Consumes power only when updating the display; static images require no power, enabling long battery life.
4. Ideal for devices that display static content over long periods, such as electronic shelf labels and signage.
5. The image remains on the screen without power — known as bi-stable behavior.
6. In addition to standard black-and-white, E Ink displays are available in tri-color (black/white/red or yellow) and full-color versions for signage and advertising.
7. Near 180° viewing angle with no glare or color distortion.
Specification of electronic paper display :
| Product |
Model Name |
MOG-133A-250724 |
| |
|
|
| Module parameters |
Panel Size (diagonal) |
13.3 inches |
| |
Panel Type |
Black and white electronic paper ink screen |
| |
Colour |
Black and white, 16 grayscale |
| |
Hink Source/Panel Manufacturer |
Xingtai |
| |
Hink P/N/Panel Model |
ED133UT3 |
| |
Flat/ Curve/Plane/Curve |
Flat |
| |
Fitting method |
3mm cover glass frame sticker with AG and UV |
| |
Front Light |
Support, maximum power 2.16W |
| Display |
Resolution |
1600*1200 |
| |
Aspect Ratio |
4:3 |
| |
Display Viewing Area(H*V) (mm)/Viewable area size |
270.4(H)×202.8(V)mm |
| |
Pixel Pitch (H)*(V) (um) Screen pixel pitch |
0.169(H) ×0.169(V)mm |
| |
Contrast Ratio (Typ.) |
16:1 |
| |
View Angle(H/V) |
178°(H)/178°(V) |
| |
Panel Refresh Rate (Max.) Screen refresh rate (maximum) |
75HZ |
| I/O |
HDMI-OUT |
1st Road |
| |
RJ45 |
1 channel 10M/100M adaptive |
| |
USB2.0 |
2-way |
| |
TF card |
1 channel, maximum support 128G (optional) |
| |
4G |
Optional |
| Android motherboard configuration (Configuration) |
System |
Android 7.1 |
| |
CPU |
Quad-core ARM Cortex A7 1.2G |
| |
DDR3 |
1G |
| |
EMMC |
8G |
| |
WIFI |
2.4G |
| |
BT |
4.0 |
| |
Installation |
Support wall mounting and ceiling mounting (default wall mounting) standard VESA hole, 100*100mm, using M4 fixing screws |
| |
KEY (4-button key) |
POWER, UP, DOWN, RESET |
| |
Working indicator light (RED) |
The device breathes for five seconds after it is turned on, the red light will be on when charging, and the light will go out when it is turned off. |
| Power |
Power adapter |
Adapter with Type-c output PD protocol (optional) |
| |
Machine power (when refreshing) |
≤3.5W |
| |
Machine power (not refreshing) |
≤0.01W |
| |
Shutdown power |
≤0.001W |
| |
Adapter powered |
12V-20V/2A |
| |
Solar powered |
support |
| software |
Support secondary development |
API and SDK available |
| |
Refresh image time |
≤2 seconds |
| |
Brushing method |
Support USB flash drive |
| |
language |
Support multiple languages (English by default) |
| Front Light |
Front light maximum power |
MAX: 2.16W |
| Waterproof grade |
Outdoor waterproof grade |
IP65 |
| Machine shape and weight |
Overall dimensions |
375*250*65mm |
| |
Packing size |
/ |
| |
net weight |
5.75kg |
| |
Gross Weight |
About 10Kg |
| Packing |
Packing box |
Wooden box packaging (fumigation-free) (used abroad) |
| |
QSG User Guide/Instructions |
Default electronic version |
| |
Warranty card |
1 serving |
| |
Certificate |
1 serving |
| Temperature and humidity |
Storage temperature |
-25℃-70℃ |
| |
Operating temperature |
-15℃-65℃ |
| |
humidity |
10%-90% |
| Functional introduction of the whole machine: Wiring-free installation, energy saving and emission reduction, low-carbon eye protection. Super power saving, the product is widely used in information display screens in public areas such as outdoor smart buses, retail malls, restaurants, subways, airports, etc. |
Application of waterproof IP65 E paper display:
E-readers (eBooks): This is perhaps the most well-known application, leveraging the paper-like reading experience, eye comfort, and long battery life.
Electronic Shelf Labels (ESLs): Used in retail stores to dynamically display prices and product information, allowing for instant updates from a central system with minimal power consumption.
Digital Signage (especially outdoor or low-power):
Public Information Displays: Bus stops, train stations, real-time arrival boards where sunlight readability and low power are crucial.
Outdoor Advertising/Promotional Displays: For static or infrequently updated content in bright environments.
Wayfinding Signs: In large facilities, parks, or campuses where signs need to be readable and can be solar-powered.
Menu Boards: In cafes or restaurants, offering a more natural look than backlit displays, especially for daily specials.
Gas Station Price Signs: Easy to read in all conditions and allows for quick price changes.
Smart Cards/Badges: For displaying dynamically updated information like access credentials, loyalty points, or temporary passes.
Logistics Labels/Tracking Devices: For displaying shipping information, temperature logs (cold chain monitoring), or other critical data on packages, especially where power is limited.
Industrial Applications: For displaying status updates, instructions, or sensor readings on machinery or in manufacturing facilities where robust, low-power displays are needed.
Smart Home Dashboards/Wall Displays: For displaying calendars, weather, to-do lists, or other static information without consuming much power or emitting light.
Wearable Technology (limited): While less common due to refresh rates, some wearables might use e-paper for always-on displays with long battery life.
Medical Devices: For displaying critical patient information or device status, especially in portable or low-power scenarios.
Disposable/Limited-Use Products: Where sustainability and low power consumption are paramount, such as dynamic expiry date labels on food packaging.
