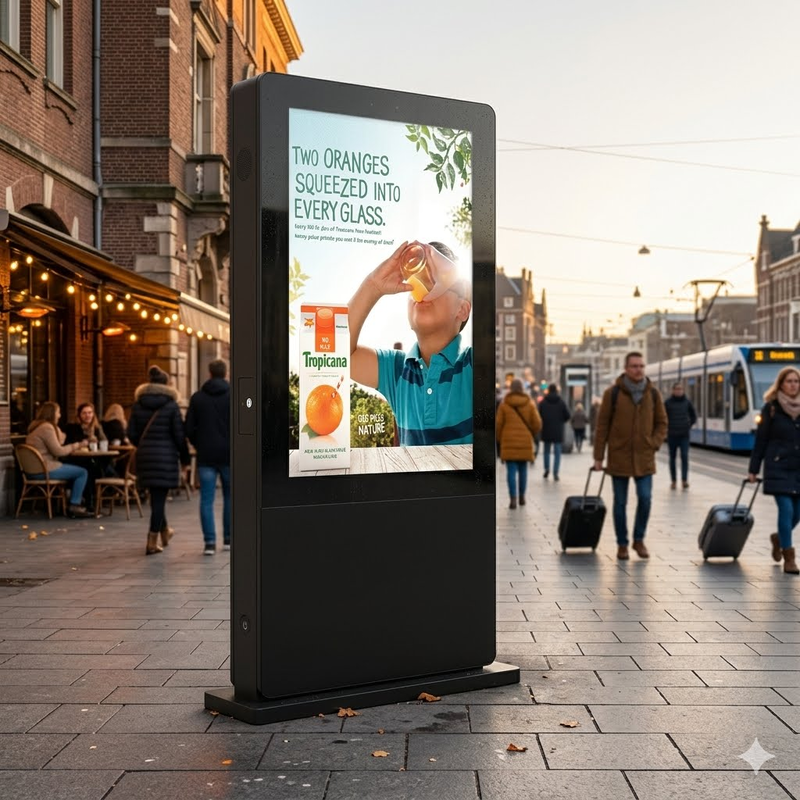

Outdoor Waterproof Android Digital Signage
43-inch, 55-inch, and 65-inch outdoor waterproof Android digital signage with 2000nit brightness. Engineered for all-weather outdoor use with excellent vandal-proof protection featuring strong steel and aluminum structure with 6mm AR bonding tempered safety glass.
Display Specifications
| Model Number |
MOAD-550 |
| Screen Size |
55" |
| Display Ratio |
16:9 |
| Resolution |
1920 × 1080 pixels |
| View Angle |
89°/89°/89°/89° |
| Luminance |
1500-3000 cd/m² (multiple options available) |
| Contrast Ratio |
2000:1 |
| Response Time |
8ms |
| Display Area |
1039.68 × 584.82 mm |
| Touch Screen Options |
Capacitive / Infrared / Nano touch screen |
Environmental Specifications
| Operating Temperature |
0°C to 50°C |
| Protection Rating |
IP65 |
| Storage Temperature |
-40°C to +60°C |
| Humidity |
5% to 100% |
Temperature Control System (Optional)
Air Conditioner: AC110V/60Hz, 6.5A current, 500W power, 1500W cooling capacity, 500W heating capacity (optional), -20℃ to 55℃ ambient temperature, IP65 rated
Radiator: 2bar-40bar working pressure, 2Kw-400Kw specification
Power Supply
AC Input: 110-240V, 50/60Hz
Operating System Options
Standalone Version: 8GB RAM, SD card playback
Android Version: Quad core 1.2GHz, 1GB DDR3, Android 7.1 or above
Windows PC: Quad-core PC / i3 / i5 / i7 Intel Core processors
Appearance & Installation
| Color Options |
Silver, white, black or custom colors |
| Enclosure Material |
Zinc coated steel with front tempered glass |
| Installation Options |
Wall mounting / Roof hanging / Floor standing |
| I/O Interfaces |
1×USB, 1×SD/MMC/MS card slot, DVI/VGA optional |
Frequently Asked Questions
Can the screen be clearly seen under direct sunlight?
Yes. The kiosk features a high-brightness commercial display of up to 2,500-3,500 nits (depending on the specific model), which is more than 6 times brighter than a standard indoor TV. It also features an anti-glare (AG) coating to minimize reflections and ensure crisp, vivid visuals even in peak daylight.
Does the kiosk have automatic brightness adjustment?
Yes. It is equipped with a built-in ambient light sensor. The screen automatically adjusts its brightness based on surrounding lighting conditions—brightening up during midday sun and dimming down at night to save energy and reduce light pollution.
What is the lifespan of the LCD panel?
The industrial-grade panel is designed for 24/7 continuous operation and offers a lifespan of approximately 50,000 to 60,000 hours before reaching half brightness.
Is this unit fully waterproof for heavy rain or snow?
Absolutely. The kiosk is IP55 or IP66 rated (model dependent), featuring a fully sealed robust enclosure, professional waterproof strips, and a secure locking system. It is completely protected against heavy rain, snow, blowing dust, and moisture.
How does the kiosk handle extreme temperatures?
The kiosk is engineered to operate efficiently in temperatures ranging from -20°C to 50°C (-4°F to 122°F). Fan-cooled version: Suitable for moderate to warm climates. Air-conditioned version: Recommended for extreme heat environments to prevent screen blackouts (isotropic failure).
Is the glass safe from vandalism?
Yes. The front display is protected by 5mm to 6mm AR/IK10-rated tempered glass. It is explosion-proof, anti-vandalism, and highly resistant to physical impacts.
