Highlight:
waterproof digital signage
, outdoor media player
Keyword: |
Commercial Touch Screen Monitor |
Protection Rating: |
IP65 |
Storage Temperature: |
0-50 Degrees |
Luminance: |
1500 Cd/m2,2000cd/m2 , 2500cd/m2 , 2500cd/m2 , 3000cd/m2 3500cd/m2 ,4000cd/m2 ,5000cd/m2 |
Response Time: |
8ms |
Display Area: |
930.24*523.26 Mm |
Touch Screen Optional: |
Capacitive Touch Screen / Infrared Touch Screen / Nano Touch Screen |

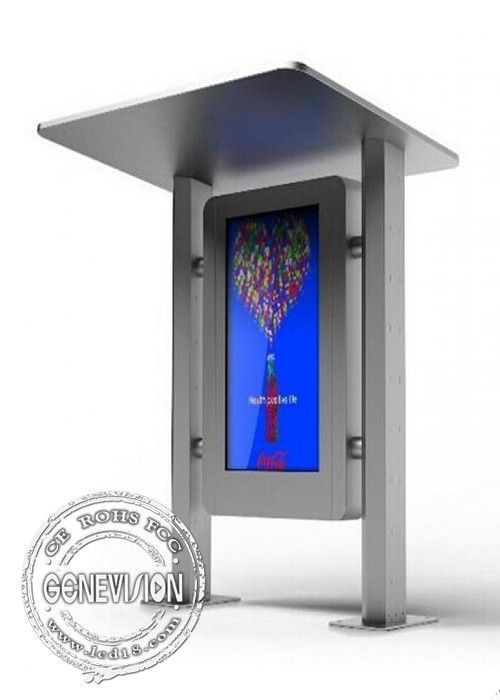

Commerical Touchscreen Outdoor Digital Signage Advertising with Andriod Os
|
screen specs
|
Model number:
|
MOT-700
|
|
Screen size:
|
70"
|
|
Display ratio:
|
16:9
|
|
Resolution(Pixel):
|
1920*1080
|
|
View angle :
|
89/89/89/89
|
|
Luminance:
|
1500 cd/m2,2000cd/m2 , 2500cd/m2 , 2500cd/m2 , 3000cd/m2
3500cd/m2 ,4000cd/m2 ,5000cd/m2
|
|
Contrast ratio:
|
5000:1
|
|
Response time :
|
8ms
|
|
Display area:
|
930.24*523.26 mm
|
|
Touch screen optional
|
Capacitive touch screen / Infrared touch screen / Nano touch screen
|
|
Parameter
|
Operating temperature:
|
-40°C--+60°C
|
|
Protection Rating:
|
IP65
|
|
Storage Temperature:
|
0-50 degrees
|
|
Humidity :5%-100%
|
|
Temperature control system(optional)
|
Air conditioner
|
Voltage Rated:AC110V/60Hz OR other
Current Rated:AC 6.5A
Power Rated:AC 500W
Cooling Capacity:1500W(L35 L35)
Heating Capacity:500W(optional)
Ambient Temperature:-20℃~55℃
IP Grade:IP65
|
|
Radiator
|
Working Pressure:2bar-40bar
Specification: 2Kw-400Kw
|
|
Power supply
|
AC Input:
|
110-240V, 50/60Hz
|
|
Operating system(optional)
|
Standalone version
|
RAM:8G SD play
|
|
Android version
|
Quad core cortex A8, All winner A31 ,1.2GHz 1G DDR3, android 4.4.2 or above.
|
|
Windows pc
|
Quad-core pc / i3 / i5 / i7 intel core
|
|
Appearance
|
Color option:
|
Silver, white, black or optional
|
|
Enclosure material
|
Zinc coated steel+front tempered glass
|
|
Installation:
|
Wall mounting/roof hanging/floor standing
|
|
I/O interface:
|
1*USB,1* SD/MMC/MS card slot ,
/DVI/VGA optional
|
Inner design
Industry module design, easy for service(optional)
Cable routing reasonable
Beautiful inner module layout (optional)
Hinge style design LCD unit
Quick water proof connectors(optional)
OEM/ODM industry design available
LOGO service
Appearance color and paint customized
Reserve board holes and power supply for customers
Features
1. IP65 design for outdoor application.
2. High brightness up to 2000cd/m2,2500cd/m2,3000cd/m2,4000cd/m2 readable under sunlight.
3. Build in Airconditioner cooling system, adapted to -40°C--+60°C environment temperature.
4. Fron tempered glass and anti-glare glass
5. Intelligent light system, brightness of screen auto adjusts according to environment light, saving energy.
6. Anti-dust, anti-vandal, anti-theft.
7. Customized design for you without additional cost.
8. Screen sizes available 19-82inch
9. Wall mount, roof hanging and free standing(fixed on ground) all available.
10. Security electric circuit design
