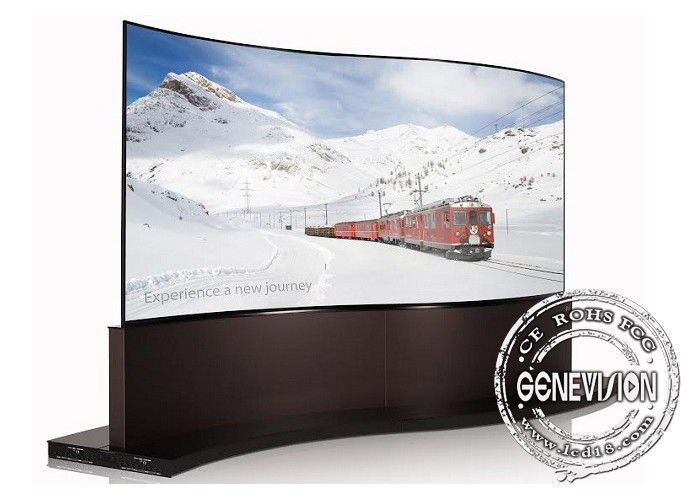

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving

Product Details:

Place of Origin: China
Brand Name: GENEVISION
Certification: CE, FCC, RoHS
Model Number: MAD-460

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD800
Packaging Details: Honeycomb carton reinforced by wooden box
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000pc per month
Get Best Price Contact Now

Detail Information

Video Wall Screen: 46inch Panel Brand: Samsung
Bezel: 3.5mm Narrow Bezel Brightness: 500cd/m2
Key Words: Daisy Chain DID Video Wall Warranty: 1 Year
High Light:

touch screen kiosk monitor

,

touch screens monitors

Product Description

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving



46inch Eye-catching ultra-large Video Wall Narrow Bezel LCD Big Screen Industrial Grade Advertising Monitor support 7*24



GENEVISION feature Ultra-thin Bezel design to deliver maximum visual impact for all Digital Signage and Conference Collaboration Applications.



With energy-saving LED Technology that enables 24hr a day operation, and Auto Standby for Image Burn Protection offer premium, reliable performance to meet all your commercial application demands.



Video wall: communicate more effectively every moment of the day, proven to draw consumers attentions and effectively influce their behaviors



From a very simple 2×2 videowall display to a massive 10×10 displays videowall, GENEVISION has the right solution for you. It’s a world where we are constantly seeking the next WOW.



A video wall constructed from LG/SAMSUNG LCD displays does not just offer you an eye-catching way to send marketing messages or show attention grabbing video – it also gives you the opportunity to lower your Total Cost of Ownership while at the same time dramatically increasing sales.



Mainly components:



1. Splicer, will be built-in the back of panel.



2. Simple displaying type: full screen displaying, divided screen part.

3. Complex displaying type: random combination displaying, screen windowing, image moving, image overlying, zoom and stretch.



4. Distirbutor to be used for simple displaying, need to know signal type: VGA//VGA, how many input and output signal.



5. Metrix to be used for complex displaying, need to know signal type: VGA//VGA, how many input and output signal.



6. Other spare parts includes: VGA//VGA cables, Lan cables, power cables/RC/ warranty card/Wrench



7. GENEVISION usually provide total solution including wall-mount brackets.



8. DID video wall support landscape displaying, horizontal displaying, asymmetric displaying.



Specification:
Specification MD-460 Panel Size 46"LED
Panel brand Original Samsung A level
Aspect Ratio 16:9
Visual Angle Horizontal 178/Vertical178
Brightness 500cd/sqm
Bezel 3.5 mm
Back light LED backlight
Contract Ratio 3500:1
Resolution Ratio 1920*1080
Color Components 16.7M
Response Time 8ms
Power Consumption 120W/150W
Standby power consumption 10W
Power Supply Input:AC110-220V-50/60Hz
Life of Panel 60000Hours
Frame size (±1mm) (Width)1020.88mm*(Height)575.49mm
Size of Shell Frame(±1mm) Left /right side2.8mm/top/bottom2.8mm
Panel Display Area (Width)1018.08mm*(Height)572.69mm
Input Port 3*BNC, 1*VGA, 1*DVI,1*
VGA/DVI Resolution Ratio 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080
Resolution Ratio 480I,480P,576I,720P,1080I,1080P
Output Port 1 Video output(BNC)
Split Screen/PIP Mode Two signals image or PIP
Splice Function Multiscreen Splice Function(image processing Function)
Carton Packing 2pc/carton, carton size: 114*34*70cm, G.W.: 47kg
Wooden box packing 4cartons(8pc)/wooden box, wooden box size: 122*145*85cm, G.W.: 105kg
Spare parts

Power cable/ cable/ Lan cable/ Remote controller/

Warranty card/ Bracket/ Wrench/ Screwdriver/

Distributor( or VGA port)/ Wall-mount bracket





Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 0

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 1

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 2

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 3

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 4

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 5

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 6

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 7

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 8

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 9

Large 46 Inch Curved DID Video Wall Advertising 3.5mm Bezel Energy Saving 10





Why choose us?



1. 14-years professional manufacturing experience only in digital signage field.

2. LCD display projects from 8" to 108' in various brightness can be tailor-made according to your specific requirements.

3. Rich experience in OEM and ODM projects in more than 10 years.

4. Less MOQ can meet your various requirements.

5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.

6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.

7. Shipments: Internation express, airfreight, oceanfreight.

8. Warranty: 1-year warranty, lifetime maintenance.
