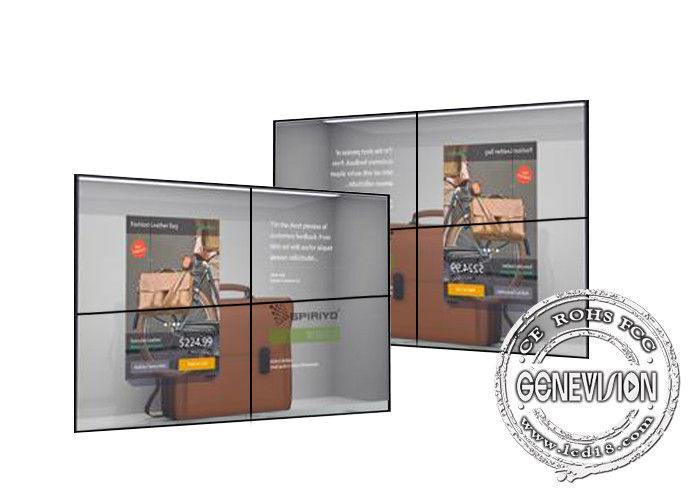

46 Inch Did Video Wall Transparent Video Display , Big Advertising Wall Window Screen
LED glass screen is latest and marvelous of optoelectronic screen. This screen based on glass, on the premise of ensure see-through transparency, implemented super array full color image.
No need additional structure, only need installed on the glass wall directly.
Unique Advantage:
1. It is transparent, unlike traditional screen has a shady area.
·(1). 52%-78% of transparency ratio, to ensures natural light in the building.
·2. On the premise of ensure transparency, it is compatible with high-end decoration and better advertising effect. To reveal your unique and charm image!
·3.Llight weight and fast assembly.
·4. Be easier for installation structure and lower cost for installation. No need additional steel structure, only install on building of the existing wall directly.
·5. Indoor maintenance, fast and safe. No need outdoor maintenance, to save more cost.
·6. Ultra slim design.
·7. High brightness.
| Specification: |
|
| Specification |
MD-460 |
Panel Size |
46"LED |
| Panel brand |
Original Samsung A level |
| Aspect Ratio |
16:9 |
| Visual Angle |
Horizontal 178/Vertical178 |
| Brightness |
500cd/sqm |
| Bezel |
3.5 mm |
| Back light |
LED backlight |
| Contract Ratio |
3500:1 |
| Resolution Ratio |
1920*1080 |
| Color Components |
16.7M |
| Response Time |
8ms |
| Power Consumption |
120W/150W |
| Standby power consumption |
10W |
| Power Supply |
Input:AC110-220V-50/60Hz |
| Life of Panel |
60000Hours |
| Frame size (±1mm) |
(Width)1020.88mm*(Height)575.49mm |
| Size of Shell Frame(±1mm) |
Left /right side1.9mm/top/bottom1.9mm |
| Panel Display Area |
(Width)1018.08mm*(Height)572.69mm |
| Port |
2*BNC(video in/out), 1*VGA in, 1*DVI in,1* in, 1*RS232 in, 2*RS232 out, 1*Debug ISR |
| VGA/DVI Resolution Ratio |
640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 |
| Resolution Ratio |
480I,480P,576I,720P,1080I,1080P |
| Split Screen/PIP Mode |
Two signals image or PIP |
| Splice Function |
Multiscreen Splice Function(image processing Function) |
| Carton Packing |
2pc/carton, carton size: 114*34*70cm, G.W.: 47kg |
| Wooden box packing |
4cartons(8pc)/wooden box, wooden box size: 122*145*85cm, G.W.: 105kg |
| Bracket carton packing |
174*12*25cm, G.W.: 29kg |
Why choose us:
1. 14-years professional manufacturing experience only in digital signage field.
2. LCD display projects from 8" to 108' in various brightness can be tailor-made according to your specific requirements.
3. Rich experience in OEM and ODM projects in more than 10 years.
4. Less MOQ can meet your various requirements.
5. Fast delivery time, sample needs 10-15days, bulk needs 15-20days, have stock of standard item.
6. Flexible Payment term: support T/T, L/C, Westunion, Paypal.
7. Shipments: Internation express, airfreight, oceanfreight.
8. Warranty: 1-year warranty, lifetime maintenance.
