55 Inch Network Digital Signage , 1500:1 Contrast Ratio LCD Screen

China 55 Inch Network Digital Signage , 1500:1 Contrast Ratio LCD Screen supplier
55 Inch Network Digital Signage , 1500:1 Contrast Ratio LCD Screen supplier 55 Inch Network Digital Signage , 1500:1 Contrast Ratio LCD Screen supplier 55 Inch Network Digital Signage , 1500:1 Contrast Ratio LCD Screen supplier

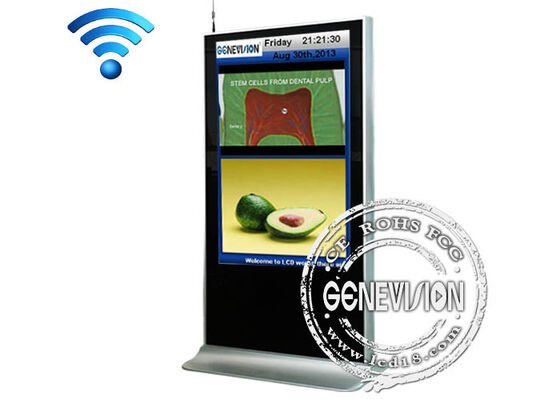

Large Image :  55 Inch Network Digital Signage , 1500:1 Contrast Ratio LCD Screen

Product Details:

Place of Origin: CHINA
Brand Name: Genevision
Certification: CE/ROHS/FCC/SGS
Model Number: MAD-550ENW-D

Payment & Shipping Terms:

Minimum Order Quantity: 50PCS
Packaging Details: Packed in carton box firstly,and then reinforced with wooden box for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Verified Supplier

CHINA

  • Product Details
Detailed Product Description
Network: LAN/wifi/3g Is Optional Type: Indoor
Size: 55 Inch Split Screen: Support
Online Updat: Yes OEM: Available
High Light:

advertising kiosks displays

,

lcd digital signage

 55 Inch Network Digital Signage , 1500:1 Contrast Ratio LCD Screen

1.Audio formats:MP3

2.Image formats :JEG

3.Support split screen display.

4.Internet Update information.

5,LAN/wifi/3g is optional

6, B/S system management structure



Specifications:

Technical Parameter for LCD Panel

Panel Size

55inch real color LCD screen

Aspect Ratio

16:9

Active Area

1210mm(H) x 682mm(V)

Max. Resolution

1920x 1080

Dot Pitch

0.63mm(H) x 0.63mm(W)

Number of Color

16.7M

Brightness

500cd/m2

Contrast Ratio

1500:1

Responsive Time

8ms

Panel Life

above 50000 hours

Storage Medium

Flash memory card

2gb to 36gb for the capacity

Support Ad files

Video formats

MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1)

Audio formats

MP3

Photo formats

JPG

OSD Language

English, Chinese, French, German, Italian, Spanish,Arabic

Audio output

stereo L/R, 5W*2, 8Ω

Power supply

AC 110V - 240V, 50/60HZ

Storage Temperature

 -7 to 65 Celsius degree

Normal Working Temperature

 -5 to 65 Celsius degree



Description:

1,network player with 10/100M Ethernet,54M WIFI or 3G (WCDMA, TDS-CDMA, CDMA2000) can download media contents from local server and managed by media server software.

2,Shell is made of high quality hardware.

3,Can be installed in advertising program flow subtitles, flows in a broadcast subtitles.
4, Easy to set auto download time frame and auto download media contents from the media server.
5,Media server software supports playlist editor and scheduling to send playlist to multiple groups of network players.
6,Create group and player ID/play/stop/volume setting/open and close video output/

reboot/close/format SD card/send text note/send playlist/send command of auto loading and play/display SD card status, capacity and filename.

7,Software to update ads file for the machine.

8,Server farm set up in the head-quaters network management center adopting advanced B/S management structure to handle ,control , monitor all kinds of broadcasting media of information and release various multimedia information.

9,Through managing the allocation of users and the division of corresponding limits of authority or signing in the server management center ,we can control the long-distance terminal of DMB ,distributed real time executive and publish financial data  ,multimedia information ,controlling information ,programme guide,in the meanwhile,we upload and issue the sub-account ,verify the master account to achieve the management of simple division of labor.

10,Support the user-defined split screen.it can add as many as 8 screen elements (time .date.picture,video,financial information ,subtitle ) and free to change the position ,size and frame of the screen elements.

11,Grouping management ,aiming at playing distinct content of different sales network and using zone to enhance the pertinence of information

12,Fixed-time download:setting the downloading time of source program (like seating 00:00 to 6:00 a.m),which would make the best of idle network source as well as ensure  the normal use of main tractions

13,Onboard watch-dog design that realizes the automatic recovery when the devices malfunction

14,Level-2 review of broadcasting content and supervision by technical means to prevent the control of system from the  illegal users and ensure the  legality of information to the public.

15,Server can connect with the broadband in static or dynamic setting assuring the salability of broadband

16,Manage it at any time or any where without restraint of IP address and regions

17,Real-time checking on the broadcasting content of terminal

18, Real-time interception of network information such as stocks ,exchange rate ,weather





Applications:

Business Organizations

supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations

Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations: Telecommunications, post offices, hospital, schools;

Public Places

subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments

Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course













 Competitive Advantage:

Server farm set up in the head-quaters network management center adopting advanced B/S management structure to handle ,control , monitor all kinds of broadcasting media of information and release various multimedia information.Through managing the allocation of users and the division of corresponding limits of authority or signing in the server management center ,we can control the long-distance terminal of DMB, distributed real time executive and publish financial data,multimedia information ,controlling information, programme guide,in the meanwhile,we upload and issue the sub-account ,verify the master account to achieve the management of simple division of labor.

advertising screen wifi,wireless media player,wireless signage display,digital signage player 3g
