Indoor Android Kiosk Digital Signage LCD Monitor Advertising 22 Inches With Newspaper Shelf
Product Details:
| Place of Origin: | China()Mainland) |
| Brand Name: | GENEVISION |
| Certification: | CCC,CE |
| Model Number: | MAD2200-A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | USD240/PCS-USD280/PCS |
| Packaging Details: | carton case + wooden pack |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 30PCS/month |
|
Detail Information |
|||
| Material: | Metal Case+Tempered Glass | Keyword: | Indoor Advertising Lcd Screen |
|---|---|---|---|
| Size: | 22 Inch | Version: | Standalone |
| Brightness: | 400cd/m2 | Pixel Pitch: | 0.4845(H)*0.4845 (V) |
| Application: | Indoor | ||
| High Light: | lcd digital signage,advertising kiosks displays |
||
Product Description
22 inch Indoor standing Android LCD Monitor Advertising With Newspaper Shelf
Item Description:
We use original high definition screen,and tempered glass panel.Can be placed in banks and ohter financial institutions,government organs,shopping mall,cinemas,theaters,hotels,subway station,an exhibition,such as an automobile exhibition,etc.
Specifications:
| Technical Parameter for LCD Panel | Panel Size | 22inch real color LCD screen |
| Aspect Ratio | 16:10 | |
| Active Area | 476mm(H) x 298mm(V) | |
| Max. Resolution | 1680 x 1050 | |
| Dot Pitch | 0.282mm(H) x 0.282mm(W) | |
| Number of Color | 16.7M | |
| Brightness | 450cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Responsive Time | 8ms | |
| Panel Life | above 50000 hours | |
| Support Ad files | Video formats | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio formats | MP3 | |
| Photo formats | JPG | |
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic | |
| Audio output | stereo L/R, 5W*2, 8Ω | |
| Power supply | AC 110V - 240V, 50/60HZ | |
| Storage Temperature | -7 to 65 Celsius degree | |
| Normal Working Temperature |
-5 to 65 Celsius degree
|
|
Touch option
| IR touch |
Touch > = 5 mm diameter Resolution is 4096 (W) * 4096 (D) Light transmittance:>92%,Max can reach for 100% Scan speed:60scans/s The smallest touch abject:>2mm(Rad.) Response time:<16ms Durability:>support over 60.000.000 times single-point touch Working voltage:DC 5V Power supply mode:PS/2 port,USB port(only USB),outer 5V power Power:32 below≤0.52W,32 up 63 below≤1W For the operating system:Windows98/2000/XP/Linux/dos Temperature:Work: - 41 ℃ to 70 ℃ storage: - 50 ℃ to 85 ℃ Communication mode :The RS - 232 or USB or PS / 2 port Noise:Not Waterproof: In strict accordance with IP65 protection class The light resistance: Full angles Resistance to strong sunlight Drift: Not drift, drift does not change with the environment. Durable years: 5 years |
| Capacity touch |
Precision:The accuracy of 99% The material:Completely scratch-resistant glass (mohs hardness 7 h), susceptible to spikes scratch and wear and tear, is not affected by common sources of pollution, such as water, fire, radiation, static electricity, dust or grease, etc. And have a eye function of goggles The sensitivity:Less than two ounces of force application can induction, less than 3 ms for quick response Clarity:Three kinds of surface treatment (Polish, Etch, Industrial) for choose. SMT controller MTBF is greater than 572600 hours (every MILHANDBOOK - 217 - F1) Touch life:The touch of any can withstand more than 50 million times, After one correction,The cursor doesn't drift. |
| Na-no touch |
The modified projected capacitive sensing technology (since the capacitance). Two dot touch and Multi-touch(20 dot~100 dot) for option, Support 10 inch to 130 inch, Permanent paste, No drift, deviation in the + / - 1 mm to + / - 3 mm, Software calibration. Through software adjustment, to adapt to all kinds of the thickness of the glass, even put on the gloves can be touch induction. Can penetrate non-metallic materials of 8~10 mm thickness Output way: USB 2.0 (HID public interface to USB mini B public interface) Driver software compatibility:Windows XP, Windows 7, Windows 8 (32-bit / 64 - bit);The Android 4.0 above;Linux (Ubuntu) (provide custom) |
| Android option | ||
| CPU | A20, dual-core | A31,quad-core |
| RAM | 1GB (2GB,4GB is optional) | 2GB (4GB is optional) |
| Memory | 8GB | 8GB |
| WIFI | Supported | |
| Camera | Optional | |
| OS | Android | |
| PC option | |||
| CPU | Intel I3 | Intel I5 | Intel celeron J1900 |
| Hard disk | 500GB | 500GB | 320GB |
| Memory | DDR3/4GB, 8GB is optional | DDR3/4GB, 8GB is optional | DDR3/2GB, 4GB,8GB is optional |
| WIFI | Supported | ||
| Camera | Optional | ||
| OS |
Windows
|
||

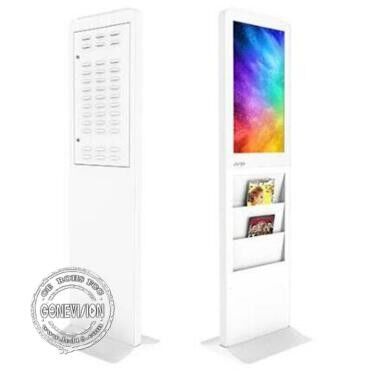

Item Pictures:
