Product Details
Place of Origin: CHINA
Brand Name: Genevision
Certification: CE/ROHS/FCC/SGS
Model Number: MJHD-520
Payment & Shipping Terms
Minimum Order Quantity: 50PCS
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Display Area: |
1154(W)×650(H) |
Number Of Colors: |
16.7M |
Aspect Ratio: |
16:9 |
Resolution: |
1920×1080 |
Dot Pitch: |
0.60(H)×0.60(V) |
Viewing Angle: |
178/178 |
Display Area: |
1154(W)×650(H) |
Number Of Colors: |
16.7M |
Aspect Ratio: |
16:9 |
Resolution: |
1920×1080 |
Dot Pitch: |
0.60(H)×0.60(V) |
Viewing Angle: |
178/178 |

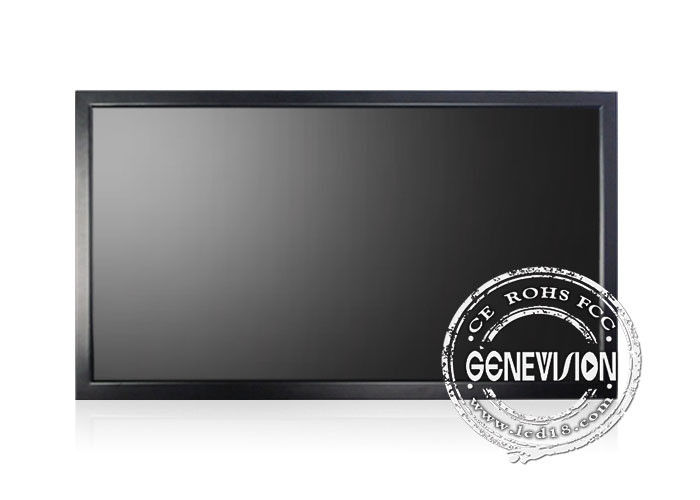

TFT Industrial LCD Displays with 178°/ 178°Viewing Angle , 52"
Description:
Applications:
Stock exchanges, Traffic control centers, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.
Specifications:
Technical Parameter for LCD Panel
|
product |
52" HD LCD Monitor |
|
model |
MJHD-520 |
|
Screen type |
52" TFT LCD |
|
Display area |
1154(W)×650(H) |
|
Aspect ratio |
16:9 |
|
resolution |
1920×1080 |
|
Number of colors |
16.7M |
|
Dot pitch |
0.60(H)×0.60(V) |
|
brightness |
600cd/㎡ |
|
contrast |
3000:1 |
|
Viewing angle |
178°/178° |
|
Response time |
5ms |
|
HF |
31k~60kHZ |
|
VF |
56~75HZ |
|
color system |
PAL/NTSC/SECAM |
|
Signal interface |
Input:2*BNC,1*VGA,,1*,1*AUDIO output:1*BNC |
|
voltage |
AC 100V~240V |
|
On mode |
≤280W |
|
Standby model |
≤3W |
|
Working temperature |
0°~50° |
|
humidity |
20%~80% |
|
Life |
60000H |
|
color |
Black/white/customized |
|
installment |
Desktop/wall mounted |
|
certification |
CE/3C/FCC/UL |
|
Dimension |
1250.6×739.2×117 |
|
Net weight |
47KG |
Competitive Advantage:
Wide voltage range,AC 110V~240V,industrial grade design,can be used in harsh environment.
