Product Details
Place of Origin: CHINA
Brand Name: Genevision
Certification: CE/ROHS/FCC/SGS
Model Number: MSDI-520
Payment & Shipping Terms
Minimum Order Quantity: 50PCS
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month

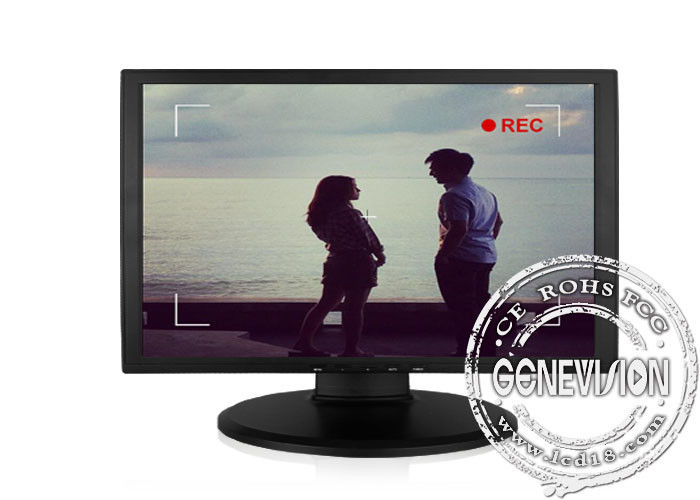

Wide HDTV Medical LCD Monitors with 1920x 1080 Resolution , SMPTE260M
Quick Detail:
1,Support 16.7 M real color(RGB 8-bits);
2,Wide viewing angle,up to 178º for horizontal and vertical;
3,Quick response time(5ms);
4,Automatic backlight system;
5,white metal frame design,anti-electromagnetic interference;
6,Integrated multi-angle professional stand mounting.
Description:
Genevision MSDI broadcast monitor chooses Top project., SDI technology is a high quality image representative of serial transmission, mainly used in some professional field of television and radio and television, the product supports audio embedded solution, at the same time, supports the highest resolution to 1080 p 60 hz, which should be more extensive.
Performance Features as follows:
1. Terminal interface: SDI goes into a conversion for the output signal.
2. To support HD-SDI, SD - SDI.
3.The thickness of PCB copper is 2 times of that of general interface card.
4. All capacitors are tantalum capacitors.
5. Use BNC VIDEO signal terminal, to prevent loss.
6. Support the SDI embedded audio
Competitive Advantage:
Genevision endoscope & surgical Medical LCD Monitor,adopts high definition LCD panel and wide visual angle to meet the needs of today’s medical display,can observe clearly the exact surgery position and elaborate operation in minimally invasive surgery(MIS).White frame,waterproof design,antimicrobial treatment,compliance with electromagnetic compatibility requirements,a variety of video input and output interfaces,making the product fully comply with endoscope and operating room,ICU display requirements.
SDI LCD CCTV Monitor, LCD Monitor with SDI, Medicine LCD Monitor
Applications:
Hospital | Surgery, Laboratory,Testing room |
Entertainment | Live studio, Film shooting |
Support mode list:
SN | Mode | SMPTE | Type |
1 | 1080I @60HZ | SMPTE260M | HDTV |
2 | 1080I @60HZ | SMPTE274M | HDTV |
3 | 1080I @50HZ | SMPTE274M | HDTV |
4 | 1080I @50HZ | SMPTE295M | HDTV |
5 | 1080P @30HZ | SMPTE274M | HDTV |
6 | 1080P @25HZ | SMPTE274M | HDTV |
7 | 1080P @24HZ | SMPTE274M | HDTV |
8 | 720P @60HZ | SMPTE296M | HDTV |
9 | 720P @50HZ | SMPTE296M | HDTV |
10 | NTSC (480I@60HZ) | SMPTE267 | SDTV |
11 | 576I@50HZ | ITU-R BT601.5 | SDTV |
| PAL-I | ITU-R BT601.5 | SDTV |
12 | PAL-B,G,H | ITU-R BT601.5 | SDTV |
13 | PAL-N | ITU-R BT601.5 | SDTV |
14 | 1080P 50HZ |
| 3G |
15 | 1080P 60HZ |
| 3G |
Note:such mode does not support1080PSF24HZ,1080I48HZ,720P24HZ,720P25HZ,
720P30HZ.
Specifications:
Technical Parameter for LCD Panel
Model No | MSDI-520 |
Panel Size | 52inch |
Aspect Ratio | 16:9 |
Active Area | 1154mm(H) x650mm(V) |
Resolution | 1920x 1080 |
Dot Pitch | 0.60mm(H) x 0.60mm(W) |
Number of Color | 16.7M |
Brightness | 600cd/m2 |
Contrast Ratio | 3000:1 |
Visual angle | 1780 |
Responsive Time | 5ms |
Input | AV(BNC) X 2,S-Video X 1,VGA X 1, X1,DVI X 1(optional) |
Output | AV(BNC) X 1 |
Power supply | 100 -240V AC |
Color system | PAL/NTSC/SECAM |
Power consumption | ≤280W |
Panel Life | above 50000 hours |
Working Temperature & Humidity | 00C~400C/10%~90% |
Certificate | 3C/FCC/CE/ROHS/UL |
