43" To 65" Capacitive Touch Front Maintenance Kiosk Digital Signage
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MAD-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | USD300-USD1000/PC |
| Packaging Details: | Carton and wooden box |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 set /month |
|
Detail Information |
|||
| Key Word: | 55" Back To Back Easy Maintenance Kiosk Digital Signage | Touch Screen: | IR Touch Or Capacitive Touch Screen |
|---|---|---|---|
| Certificate: | CE, FCC, ROHS, CCC, RCM | Material: | Aluminum Frame And Tempered Glass, Metal Shell |
| Back To Back Design: | Yes | Remote Control Software: | Can Control Two Screens At The Same Time |
| Packing: | Honeycomb Carton For Container Order | Logo Printing: | Available |
| High Light: | Front Maintenance Kiosk Digital Signage,Capacitive Touch Kiosk Digital Signage,65" Capacitive Touch Kiosk |
||
Product Description

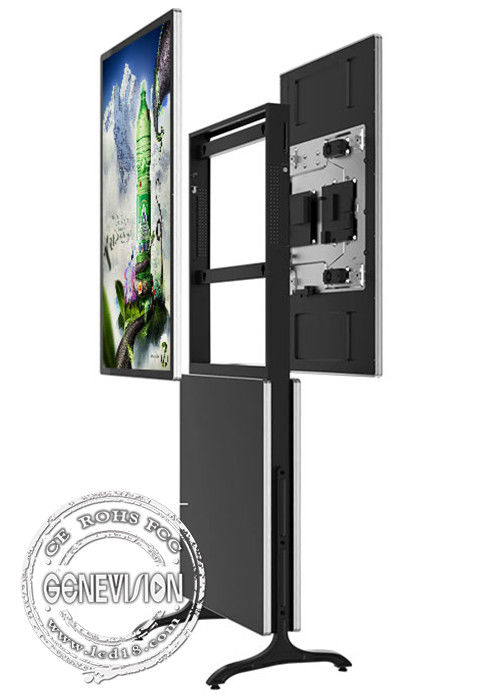

43" to 65" Back to Back Front Maintenance Kiosk Digital Signage with Android System
Quick details of two screen back to back digital signage kiosk :
1. Super thin back to back dual screen digital signage kiosk design.
2. Special design foot, steady standing design and light in weght and volume to save shipping cost.
3. Explosion proof tempered glass to proect full HD 1080p LCD screen.
4. Aluminum frame in super thin shape and good looking apperance.
5. Easy maintenance design, screen can be replaced within seconds.
6. Factory price at discount at the end of the year.
7. OEM and ODM projects are welcome.
8. Android, Windows, Linux, Ubuntu system available.
9. CMS can be provided for free.
10. Internet conneced by RJ45 / Lan, Wiif, 4G/5G.
Specification of two screen back to back digital signage kiosk :
| Panel size | 32" to 65" | |||||
| Resolution | 1920*1080 | |||||
|
TFT-LCD |
BOE original panel, A level | |||||
| Display area | 698*392mm | |||||
| Brightness | 350cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1000:1 | |||||
| View angle | 170°/160°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ | |||||
| Power Consumption | 80W | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Aluminum+Metal | |||||
| Bare diemension | TBC | |||||
| Wooden box dimension | TBC | |||||
| Touch Type | 10-point IR touch screen or PCAP touch screen available | |||||
| Installation | Wall mountable or floor standing totem | |||||
| Double sided design | Yes, screen can be replaced within seconds by one person | |||||
| Color | Black or silver or any Pantone color | |||||
| Normal Working Temperature | 0°——50° | |||||
| Normal Storage Temperature | -20°——60° | |||||
| CPU | A40 | |||||
| RAM | DDR3 1G | |||||
| Memory | 8G | |||||
| OS | Android 7.1, support google play | |||||
| Internet connection | WIFI, LAN | |||||
| Interface | HDMI out*1, USB*2, Lan*1, TF card*1 | |||||
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz | |||||
| RAM | DDR3 2G | |||||
| Memory | 8G | |||||
| OS | Android 7.1, support google play | |||||
| Internet connection | WIFI, LAN | |||||
| Interface | HDMI out*1, USB HOST*1, USB OTG*1, Lan*1, SD card*1 | |||||
| CPU | i3, i5, i7 | |||||
| Memory | DDR3 4G, 8G | |||||
| SSD | 128G, 256G | |||||
| OS | Windows 10 | |||||
| Internet connection | WIFI, LAN | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Description of two screen back to back digital signage kiosk :
The super thin ELED LCD advertising display model is newly developed in 2021. The LCD screen is designed with wall mount bracket, can be hang on the wall, also the floorstanding cabinet is on optional, the wall mount display can be inbuilt into the metal housing so it become to be a floorstanding advertising totem.
Base is also changed a lot comparing to traditional digital signage design, now the base is smaller and light in weight, looks more fashionable and can still keep steady features. Besides, wheels can be added onto base so it can move anywhere quite easily.
Same as traditional LCD advertising player, it can be with IR touch or capacitive touch screen, system can be Android or Windows PC all in one, other system is also on optional.
Dual screen solution is also available, can be double sided floorstanding totem, dual screen facing the same direction, or two screens stand back to back.
Application of two screen back to back digital signage kiosk :
This easy maintenance ELED digital signage kiosk can be widely used in shopping mall, airport, restaurant and retail shops, also the super thin movable portable wall mount touch screen totem can be put in any indoor business area.
