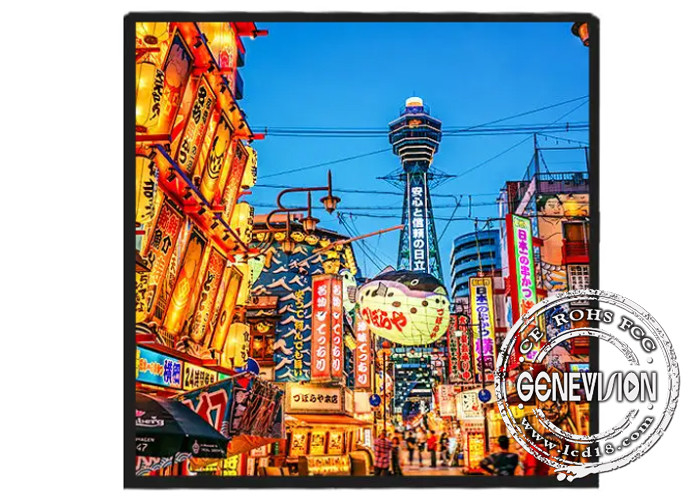

33 Inch Square LCD Panel Square Advertising Display 420Nits 1920x1920
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | GENEVISION |
| Certification: | CE, FCC, ROHS, CCC |
| Model Number: | MG-330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD 50 - 200 /PC |
| Packaging Details: | Standard export carton reinforced by wooden box |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000pc per month |
|
Detail Information |
|||
| Keyword: | BOE Square Android Lcd Advertising Display Screen | Screen Size: | 33 Inch |
|---|---|---|---|
| Brightness: | 420 Nits | Resolution: | 1920*1920 |
| Displaying Area: | 596*596 | OS: | Android Or Windows |
| Remote Control Software: | For Free | Installation: | Wall Mount Bracket With Vesa Hole |
| High Light: | Wall Mount LCD Display 420Nits,1920x1920 Square Advertising Display,420Nits Advertising Display |
||
Product Description
Brand Original BOE 33 inch Square LCD Panel 420Nits 1920*1920 Square Advertising Display
Quick details of BOE Original Panel Square LCD Advertising Display :
1. 33 inch BOE original panel square shape LCD advertising display screen.
2. 1920*1920 resolution.
3. 420nits high brightness, good enough for using indoor with bright light.
4. Can be with Android or Windows system.
5. Android can be with remote control software for free.
6. Also can advertising by USB manually.
Specification of BOE Original Panel Square LCD Advertising Display :
|
Brand
|
BOE
|
Model
|
DV332X2M-NV0
|
|
Diagonal Size
|
33 inch
|
Type
|
a-Si TFT-LCD , LCM |
|
Pixel Format
|
1920(RGB)×1920 81PPI
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
596.16 × 596.16 (H×V)
|
Outline Dim.
|
612.96 × 612.96 (H×V×D)
|
|
Bezel Area
|
601.96 × 601.96 (H×V)
|
Treatment
|
Antiglare (Haze 25%), Hard coating (3H)
|
|
Luminance
|
420 (Typ.)(cd/m²)
|
Contrast Ratio
|
1000 : 1 (Typ.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
8 (Typ.)(G to G)
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Operating Mode
|
ADSDS, Normally Black, Transmissive |
|
Support Color
|
16.7M 72% NTSC |
Light Source
|
WLED , 30K hours , No Driver
|
|
Form Style
|
/
|
Designed For
|
/
|
|
Frame Rate
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
LVDS (4 ch, 8-bit) , 92 pins Connector
|
||
|
Power Supply
|
5.0V (Typ.)
|
||
|
Environment
|
Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
|
||
Description of BOE Original Panel Square LCD Advertising Display :
16:9 screen panel is quite common and people are tired seeing them, so various shape LCD digital signage were developed, such as round and this square shape, we're sure it can attract more attention while working and displaying advertisements.
This is BOE original panel with high quality, 420nits high brightness is good enough for using in shopping mall or cosmetics shop as light is very bright in these environment.
UBS updating is ok, also we have Android or Windows with CMS, so advertising video and picture can be updated via internet.
Application of BOE Original Panel Square LCD Advertising Display :
This square shape LCD digital signage can be used in retail shops, shopping mall, restaurant, exhibition center etc.
