Highlight:
advertising kiosks displays
, interactive signage display

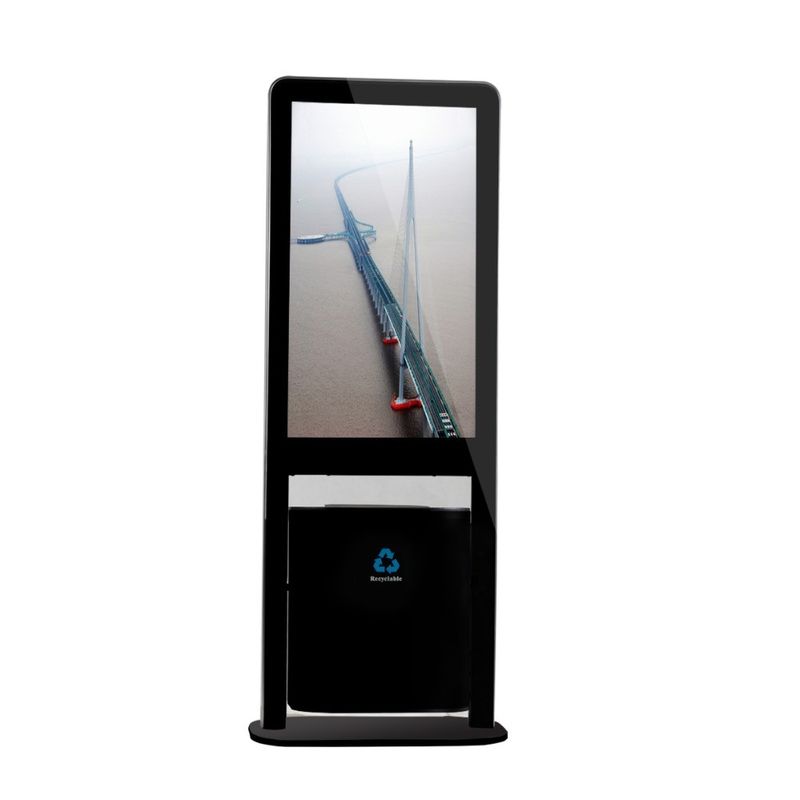

Black High Resolution Floor Standing Lcd Digital Signage With Trash Can
1. Speciifctions for Floor Standing Lcd Digital Signage
| Items |
Parameter |
| Panel size |
42'' |
| Panel |
LCD Screen&LED Light |
| Brand |
LG/Samsung/Innolux/AUO/BOE etc. |
| Resolution |
1920(RGB)*1080(FHD) |
| Pixel |
69PPI |
| Aspect Ratio |
16:9 |
| Active Area(mm) |
878.112*485.352(W×H) |
| Dot Pitch(mm) |
0.15245*0.4494(W×H) |
| Display Color |
16.7M(8bit) |
| Brightness |
400cd/m2 |
| Contrast |
3000:1(Typical) |
| View Angle |
89°/89°89°/89°(Typical) |
| Response Time |
6ms(Typical) |
2. Technical Specification for slim touch screen kiosk
| CPU |
Allwinner A20 dual-core 1.5GHz |
| Memory |
DDR3 1GB |
| Built-in Storage |
4GB FLASH/EMMC for A20 |
| Speakers |
2×2W |
| Voltage Frequency |
12V 2A |
| PowerConsume(Max) |
≤25W |
| Colored System |
PAL/NTSC/Auto-detecting |
| Frame material |
Metal case, aluminum alloy frame |
| Noise Reduction |
Yes |
| OSD Language |
Multiple language, English is default. |
| Mounting |
Wall-mounted |
| Working temperature |
0°C~50°C |
| Working humidity |
10% - 90% no condensation |
| Storage temperature |
-20°C - 60°C |
| Storage humidity |
10% - 95% no condensation
|
Description for network floor standing kiosk
1,Adopt hardened metal shell,antistatic,preventing magnetic strong interference.
2, With 3mm thickness tempered glass as protection layer against the surface of LCD screen.
3,Adopt newest A＋LCD screen,with high contrast ration,high brightness,last longer and work better.
4,Support SD card or USB port at one player; it is optional for VGA Port, S-video port and port.
Compatible all formats of high definition video signal and standard definition video signal input(,
YPbPr,VGA,CVBS*2)and output(AV).
5,Safely locking system function to avoid flash memory card and advertising playing contents being
taken away, also can be protected by password.
6, With USB update feature; support functions between the card and card copying files (such as CF
card to SD card,or SD to CF card etc.); support U-copy, conveniently and quickly updating target
content, more details please visit user manual.
7,Playing advertising program automatically and circular; support media format: JPEG (JPG), MP3,
AVI, MPEG1, MPEG2, MPEG4, VOB and DIVX (5.0/6.0).
8,Playlists support functions, can set different folders, copy all target files to those different folders,
system would default to play your target file one by one.
9,Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
10,Build-in clock and calendar function in the system of player.
11,Automatically turn up or down the volume of ad media player after finished the period of time setup
to machine according to your requirements.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
12,Support 1080P Full HD Video and picture.
13,with scrolling marquee and angle icon display for any interval and segment quantity.
14,Automatic restart and shutdown periodically.
15,Support playlist function and slides showing automatically.
16,Adopt an external power adapter to supply power,more safe and reliable.
17,Automatic recognize PAL/NTSC video display.
18,Support key operation and IR remote control.
19,Physical resolution up to 1920*1080,compatible below resolution.automatically adjust to the best place.
20,The scientific Golden Angle Design is adopted for the body, super-thin and light machine body.
